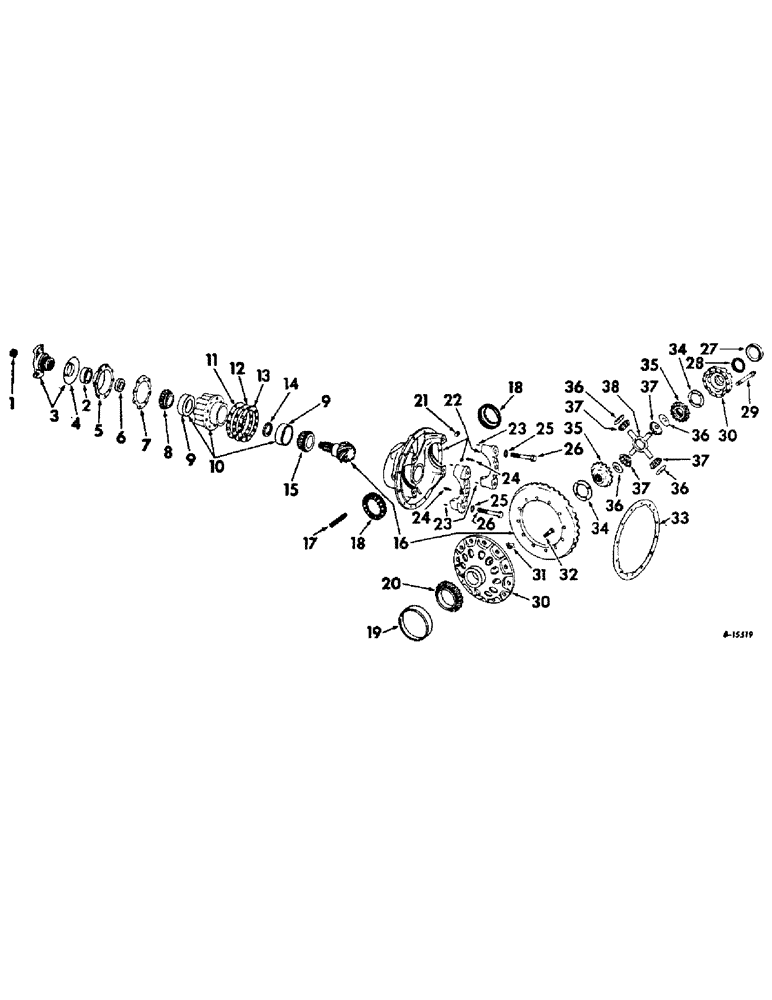

Запчасти Case IH 4186 (07-18) - DRIVE TRAIN, REAR AXLE DIFFERENTIAL CARRIER (04) - Drive Train

393770R91

CARRIER

ASSY, differential 6-1/6 to 1, Less ref. no. 33

1шт.

1

440301C1

NUT

companion flange, Replaces 393756R1

1шт.

103390

COTTER PIN

PIN, 1/8 x 2-1/4 cot, Used w/393756R1 nut

1шт.

2

118086H1

SEAL

pinion shaft oil

1шт.

3

393755R91

YOKE ASSY, companion

1шт.

4

94195R1

SLINGER

companion yoke

1шт.

5

393748R1

COVER, 7/16-14 x 1-1/4 hex-hd cap type 4

8шт.

213319R1

WASHER

pinion bearing cover

8шт.

6

393754R1

WASHER, pinion outer brg

1шт.

7

393749R1

GASKET

pinion bearing cover

1шт.

8

393823R91

BEARING ASSY,2.375" ID x 5.375" OD x 1.8125, 1.4375"

ASSY, pinion outer cone

1шт.

9

107580R1

TAPERED BEARING,2.375" ID x 5.375" OD x 1.8125"

BEARING, pinion cup

2шт.

10

393736R91

CAGE W/CUPS ASSY, pinion brg

1шт.

444746

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 automotive sq-hd drain and filler

1шт.

20653R1

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 8

SCREW, 1/2-13 x 1-5/8 hex-hd cap type 4

8шт.

213524R1

WASHER

pinion bearing cage

8шт.

11

393751R1

SHIM

pinion brg cage, .003

1шт.

12

393752R1

DISC

SHIM, pinion brg cage, .005

1шт.

13

393753R1

SHIM

pinion brg cage, .010

1шт.

14

393737R1

SPACER

SPACER, pinion shaft brg, .131

1шт.

14

393738R1

SPACER, pinion shaft brg, .132

1шт.

14

393739R1

SPACER

SPACER, pinion shaft brg, .133

1шт.

14

393740R1

SPACER, pinion shaft brg, .134

1шт.

14

393741R1

SPACER, pinion shaft brg, .135

1шт.

14

393742R1

SPACER, pinion shaft brg, .136

1шт.

14

393743R1

SPACER

SPACER, pinion shaft brg, .142

1шт.

14

393744R1

SPACER

pinion shaft brg, .148

1шт.

14

393745R1

SPACER, pinion shaft brg, .154

1шт.

14

393746R1

SPACER, pinion shaft brg, .160

1шт.

14

393747R1

SPACER

SPACER, pinion shaft brg, .166

1шт.

15

107579R91

ROLLER BEARING

ASSY, pinion inner cone

1шт.

16

393735R91

GEAR WHEEL

GEAR SET, hypoid drive 6-1/6 to 1, Includes nut, 440301C1

1шт.

17

69204R1

SCREW

drive gear thrust block, Order screw, 881046C1

1шт.

17

881046C1

CAPSCREW,M14 x 70mm

SCREW W/BLOCK, drive gear thrust

1шт.

219754

BACK-UP RING

7/8-14 hex jam

1шт.

18

56031R2

ADJUSTER, differential brg

2шт.

19

160301R1

BEARING ASSY,133.35mm OD x 32.55mm W

BEARING, differential cup, gear side

1шт.

20

160300R91

BEARING ASSY,3.25" ID x 5.25" OD x 1.5625"

differential cone, gear side

1шт.

21

393652R1

PLUG, differential carrier

1шт.

22

393861R91

CARRIER ASSY, differential, Composed of

1шт.

CAP (NSS)

2шт.

CARRIER (NSS)

1шт.

73311R1

PIN

DOWEL

4шт.

683774R1

AXLE PIN

PIN

2шт.

393652R1

PLUG

1шт.

91075R1

BOLT

SCREW

4шт.

232359R1

WASHER

4шт.

23

73311R1

PIN

DOWEL, differential cap

4шт.

24

683774R1

AXLE PIN

PIN, adjuster lock

2шт.

25

232359R1

WASHER

differential cap

4шт.

26

91075R1

BOLT

SCREW, differential cap

4шт.

27

ST969

TAPERED BEARING,3.251" ID x 5.251" OD x 1.3265"

BEARING, differential cup, case side

1шт.

28

ST2022

ROLLER BEARING,82.55mm ID x 33.41mm W

BEARING ASSY, differential cone, case side

1шт.

29

212179R1

BOLT,Hex, 9/16" - 18 x 2 1/2", Gr 8

differential, short

8шт.

29

27427R1

BOLT,Hex, 9/16" - 18 x 3 1/2", Gr 8

differential, long

8шт.

30

393732R91

CASE ASSY, differential, 2 halves

1шт.

31

69203R1

BLOCK

drive gear thrust, Order screw, 881046C1

1шт.

32

447866C1

BOLT

differential bevel gear, Replaces 393654R1 by also ordering nut, 9412231

1шт.

9412231

NUT

5/8-11 phc prevailing torque hex lock

12шт.

33

70743R1

GASKET

, Serial Range: carrier-housing

1шт.

34

90942R1

THRUST WASHER

differential side gear thrust

2шт.

35

132911H1

X

GEAR, differential side

2шт.

36

132893H1

THRUST WASHER

differential pinion thrust

4шт.

37

132910H1

PINION

differential

4шт.

38

91003R1

U-JOINT SPIDER

SPIDER, differential pinion

1шт.
