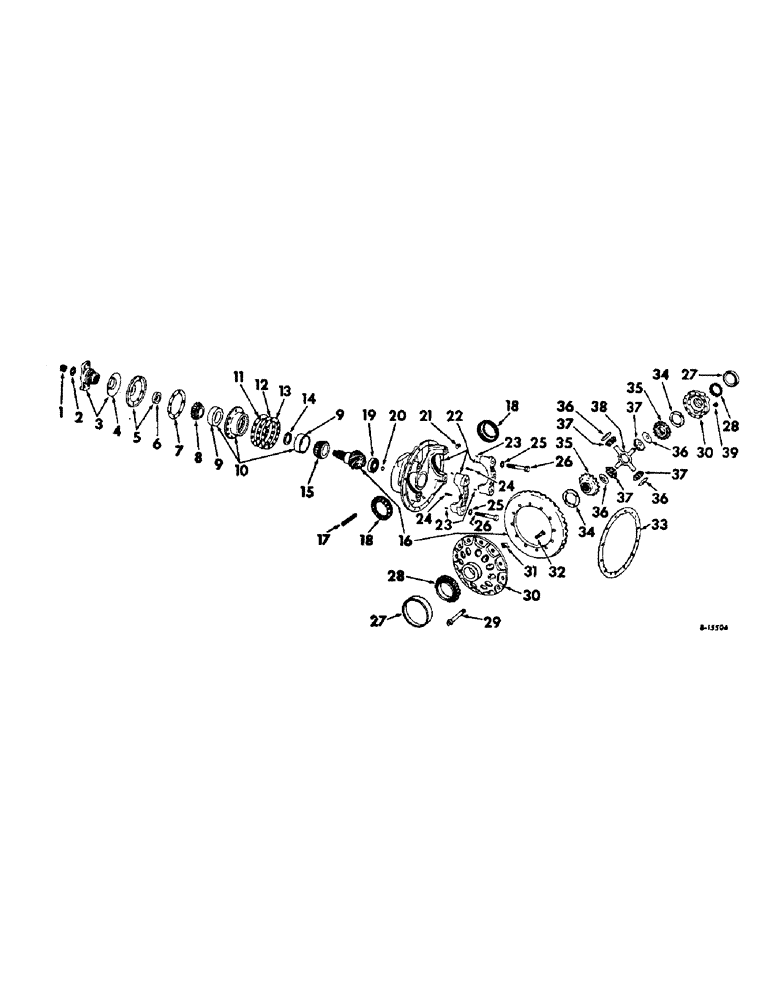

Запчасти Case IH 4186 (07-16) - DRIVE TRAIN, FRONT AXLE AND DIFFERENTIAL CARRIER (04) - Drive Train

393769R91

CARRIER

ASSY, differential 6-1/6 to 1, Less ref. no. 33

1шт.

1

440300C1

NUT

companion flange, Replaces 32191V

1шт.

103390

COTTER PIN

PIN, 1/8 x 2-1/4 cot, Used w/32191V nut

1шт.

2

72608R1

WASHER

companion flange

1шт.

3

136298H1

YOKE

ASSY, companion

1шт.

4

90112R1

SLINGER, companion yoke

1шт.

5

91002R11

RETAINER

ASSY, pinion

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW, 1/2-13 x 1-1/2 hex-hd cap type 4

8шт.

213524R1

WASHER

pinion brg cage

8шт.

6

387309C91

OIL SEAL

pinion shaft oil

1шт.

7

137058H1

GASKET

pinion shaft seal

1шт.

8

91260R91

BEARING ASSY,2.125" ID x 5.513" OD x 1.4375"

ASSY, pinion outer cone

1шт.

9

58080R1

BEARING CUP,2.125" ID x 5.513" OD x 1.3085"

pinion cup

2шт.

10

136291H1

CAGE W/CUPS ASSY, pinion brg

1шт.

11

132901H1

SHIM

pinion brg cage, .003

1шт.

12

132902H1

SHIM

pinion brg cage, .005

1шт.

13

90945R1

SHIM

pinion brg cage, 10

1шт.

14

90987R1

SPACER

pinion shaft brg, .220

1шт.

14

90988R1

SPACER, pinion shaft brg, .221

1шт.

14

90989R1

SPACER

pinion shaft brg, .222

1шт.

14

90990R1

SPACER

pinion shaft brg, .223

1шт.

14

90991R1

SPACER, pinion shaft brg, .224

1шт.

14

90992R1

SPACER, pinion shaft brg, .225

1шт.

14

90993R1

SPACER, pinion shaft brg, .231

1шт.

14

90994R1

SPACER

pinion shaft brg, .237

1шт.

14

90995R1

SPACER, pinion shaft brg, .243

1шт.

14

90996R1

BRACE

SPACER, pinion shaft brg, .249

1шт.

14

90997R1

SPACER, pinion shaft brg, .255

1шт.

15

91262R91

CONE

BEARING ASSY, pinion inner cone

1шт.

16

393653R91

GEAR-SET

GEAR SET, hypoid drive 6-1/6 to 1, Includes ref. no. 1

1шт.

17

69204R1

SCREW

drive gear thrust block, Order screw, 881046C1

1шт.

17

881046C1

CAPSCREW,M14 x 70mm

SCREW W/BLOCK, drive gear thrust

1шт.

425-1514

JAM NUT,Jam, 7/8"-14, G5

7/8-14 hex jam

1шт.

18

56031R2

ADJUSTER, differential brg

2шт.

19

91082R91

ROLLER BEARING,35mm ID x 80mm OD x 21mm W

BEARING ASSY, pinion pilot

1шт.

20

91081R2

RING

pinion brg lock

1шт.

21

393652R1

PLUG, differential carrier

1шт.

22

393651R91

CARRIER

ASSY, differential, Composed of

1шт.

CAP (NSS)

2шт.

CARRIER (NSS)

1шт.

73311R1

PIN

DOWEL

4шт.

683774R1

AXLE PIN

PIN

2шт.

91075R1

BOLT

SCREW

4шт.

232359R1

WASHER

4шт.

23

73311R1

PIN

DOWEL, differential cap

4шт.

24

683774R1

AXLE PIN

PIN, adjuster lock

2шт.

25

232359R1

WASHER

differential cap

4шт.

26

91075R1

BOLT

SCREW, differential cap

4шт.

27

ST969

TAPERED BEARING,3.251" ID x 5.251" OD x 1.3265"

BEARING, differential cup

2шт.

28

ST2022

ROLLER BEARING,82.55mm ID x 33.41mm W

BEARING ASSY, differential cone

2шт.

29

91074R1

BOLT

differential, long

8шт.

29

72331R1

BOLT

differential, short

4шт.

30

91077R91

CAGE

CASE ASSY, differential, 2 halves

1шт.

31

69203R1

BLOCK

drive gear thrust, Order screw, 881046C1

1шт.

32

447866C1

BOLT

differential bevel gear, Replaces 393654R1 by also ordering nut, 9412231

12шт.

9412231

NUT

5/8-11 phc prevailing torque hex lock

12шт.

33

70743R1

GASKET

, Serial Range: carrier-housing

1шт.

34

90942R1

THRUST WASHER

differential side gear thrust

2шт.

35

132911H1

X

GEAR, differential side

2шт.

36

132893H1

THRUST WASHER

differential pinion thrust

4шт.

37

132910H1

PINION

differential

4шт.

38

91003R1

U-JOINT SPIDER

SPIDER, differential pinion

1шт.

39

878157R1

SLOTTED NUT

NUT, 1/2-20 thick slt hex, differential bolt

12шт.
