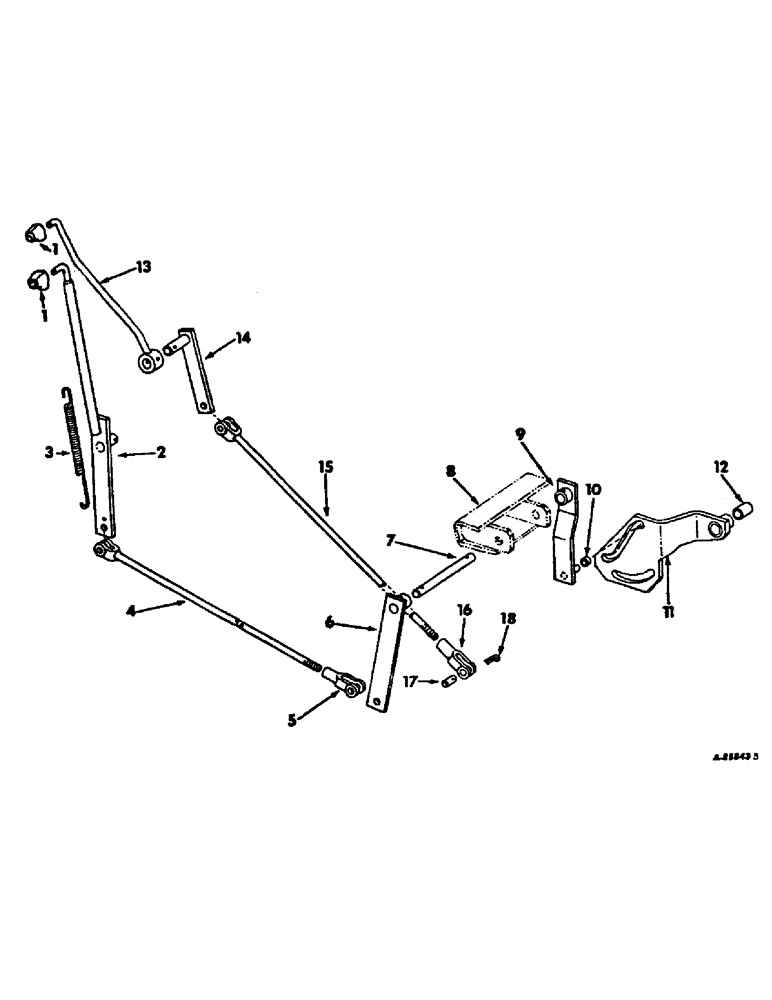

Запчасти Case IH 4186 (07-14) - DRIVE TRAIN, FRONT AND REAR STEERING CONTROLS (04) - Drive Train

1

379022R2

KNOB

steering hand lever

2шт.

2

390555R11

ROD ASSY, steering control

1шт.

108637

COTTER PIN,5/32" x 1 1/8"

Pin, Split (Cotter), 5/32" x 1 1/8"

1шт.

3

381395R1

SPRING

steering control rod

1шт.

4

390559R11

ROD ASSY, steering control linkage

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex jam

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21853H

PIN, 1/2 x 1-1/2 rod end

1шт.

5

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 x 3 light adj rod end

1шт.

21853H

PIN, 1/2 x 1-1/2 rod end

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095 plain

4шт.

6

390561R91

ARM ASSY, steering control front

1шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

1шт.

7

390564R1

PIN, steering control front pivot

1шт.

8

BRACKET ASSY, steering control front pivot, Refer to platform and mounting step listing, Group 13

1шт.

9

395020R91

ARM

ASSY, steering control front inner

1шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

2шт.

10

380115R2

ROLLER

cam

1шт.

11

395023R91

CAM

ASSY, steering control

1шт.

108637

COTTER PIN,5/32" x 1 1/8"

Pin, Split (Cotter), 5/32" x 1 1/8"

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

12

390679R1

BUSHING

cam pivot

1шт.

13

390547R91

HANDLE ASSY, front wheel drive control

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

14

390550R11

PIN ASSY, front wheel drive control

1шт.

15

390553R11

ROD ASSY, front wheel drive control

1шт.

21853H

PIN, 1/2 x 1-1/2 rod end

1шт.

102384

HYDRAULIC VALVE

PIN, 1/8 x 3/4 cot

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095 plain

2шт.

16

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 x 3 light adj rod end

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex jam

1шт.

17

384308R2

PIN,12.53mm OD x 28.45mm L

clevis

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.

18

460047R1

CLIP, SPRING

PIN, quick attachable cot

1шт.
