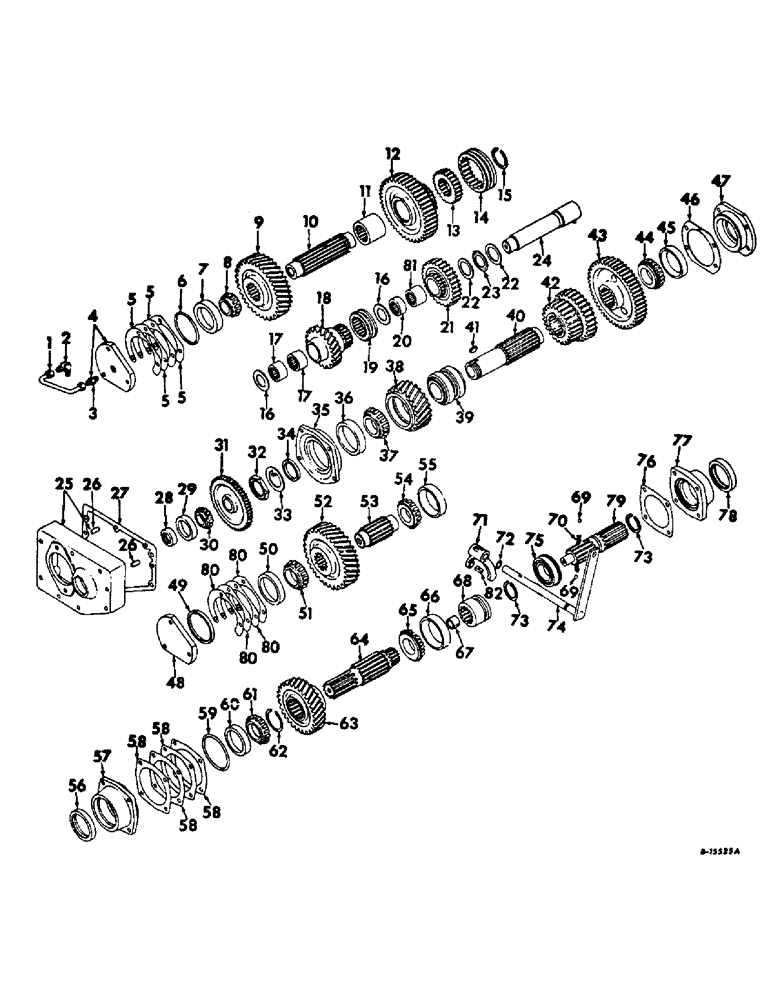

Запчасти Case IH 4186 (07-07) - DRIVE TRAIN, RANGE TRANSMISSION, IN TRANSFER CASE (04) - Drive Train

1

390348R11

PIPE ASSY, mainshaft lub

1шт.

2

9402864

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, NPTF

3/8 37 deg hyd flared tube 90 deg

1шт.

3

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR, 9/16-18 x 1/4 nptf 37 deg hyd flared tube

1шт.

4

395919R2

PLATE

RETAINER ASSY, mainshaft rear brg

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

5

390349R1

SHIM

idler mainshaft brg, 0299 (Or as required)

1шт.

5

390350R1

SHIM

idler mainshaft brg, 004 (Or as required)

1шт.

5

390351R1

SHIM

idler mainshaft brg, 007 (Or as required)

1шт.

5

390352R1

SHIM

idler mainshaft brg, 012 (Or as required)

1шт.

6

390367R1

RING

mainshaft brg retainer seal, For .000 to .049 shim pack

1шт.

6

395001R1

RING

main shaft brg retainer seal, For .050 to .105 shim pack

1шт.

7

170234R1

BEARING ASSY,1.75" ID x 3.75" OD x 1.1875"

BEARING, mainshaft rear cup

1шт.

8

170233R91

BEARING ASSY,1.75" ID x 3.75" OD x 1.1875"

mainshaft rear cone

1шт.

9

390345R1

GEAR WHEEL

GEAR, transfer drive and idler, 32 T

1шт.

10

390341R1

SHAFT

transmission main

1шт.

11

390342R1

CARRIER

hi-lo driven gears

1шт.

12

390343R21

GEAR

ASSY, hi-lo driven

1шт.

13

393522R2

PINION

CARRIER, shift collar

1шт.

14

393521R1

COLLAR

hi-lo shift

1шт.

15

324051R1

CLIP

RING, mainshaft snap

1шт.

16

380300R1

THRUST WASHER,41.66mm ID x 60.96mm OD x 2.54mm Thk

idler gear thrust

2шт.

17

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, reverse drive gear needle

2шт.

18

390363R2

GEAR WHEEL

GEAR, reverse drive, 21 T

1шт.

19

393524R1

COLLAR

forward reverse shift

1шт.

20

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING, idler gear rear needle

1шт.

21

393523R1

GEAR

reverse idler, 30 T

1шт.

22

390362R1

THRUST WASHER,44.63mm ID x 63mm OD x 3.16mm Thk

BEARING, idler thrust race

2шт.

23

232001R91

BLOCK

BEARING, idler thrust needle

1шт.

24

390361R21

SHAFT

ASSY, reverse idler

1шт.

19399R1

PIN, 5/16 x 5/8 slt spring

1шт.

539928R1

SEAL

SEAL, lube, rear

1шт.

25018R1

O-RING,Rect, .875" ID x 1.125" OD, Cl 5

7/8 x 1-1/8 x 1/8 rect, front

1шт.

25

539925R1

COVER ASSY, transfer case rear

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

6шт.

26

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x 3/4 dowel

2шт.

27

390388R1

GASKET

rear pump cover

1шт.

28

358812R91

OIL SEAL

SEAL, IPTO driven shaft

1шт.

29

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING, IPTO driven shaft cup

1шт.

30

360321R91

BEARING ASSY,1.3775" ID x 2.78" OD x 0.7813"

ASSY, IPTO driven shaft cone

1шт.

31

390389R1

GEAR WHEEL

GEAR, pump drive, 61 T

1шт.

32

390359R1

NUT

countershaft brg lock

1шт.

33

390358R1

LOCK WASHER

WASHER, countershaft brg lock nut

1шт.

34

390357R1

WASHER

countershaft rear brg

1шт.

35

390354R1

CAGE, countershaft rear brg

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

36

98919R1

BEARING CUP

countershaft rear cup

1шт.

37

967537R91

BEARING ASSY,53.98mm ID x 30.96mm W

ASSY., countershaft rear cone

1шт.

38

390355R1

GEAR WHEEL

GEAR, countershaft idler, 24T

1шт.

39

390450R92

BEARING ASSY,2.1255" ID x 3.751" OD x 3.1336"

ASSY., countershaft idler

1шт.

40

390356R1

SHAFT

COUNTERSHAFT

1шт.

41

117977

WOODRUFF KEY

KEY, 5/16 x 1 Woodruff B, pump drive gear

1шт.

42

390360R1

GEAR

low drive, 33T

28шт.

43

406476R1

GEAR

constant mesh, 50T

1шт.

44

ST2122

BEARING ASSY,52.39mm ID x 30.16mm W

., countershaft front cone

1шт.

45

ST863

BEARING CUP,93.22mm OD x 23.81mm W

BEARING, countershaft front cup

1шт.

46

380280R1

SHIM

countershaft brg (Or as required)

2шт.

47

380281R2

CAGE

countershaft front

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1-1 8 hex hd cap

4шт.

48

390366R1

RETAINER

transfer idler brg

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1 8 hex-hd cap

3шт.

49

390367R1

RING

idler shaft brg retainer

1шт.

50

390451R1

BEARING ASSY,1.7505" ID x 3.751" OD x 1.1875, 0.9375"

BEARING, idler rear cup

1шт.

51

110026R91

CONE

BEARING ASSY., idler rear cone

1шт.

52

390345R1

GEAR WHEEL

GEAR, transfer drive and idler, 32T

1шт.

53

390364R1

SHAFT

transfer idler

1шт.

54

ST2051

TAPERED BEARING,1.75" ID x 3.6718" OD x 1.1875"

BEARING ASSY., idler front cone

1шт.

55

ST863

BEARING CUP,93.22mm OD x 23.81mm W

BEARING, idler front cup

1шт.

56

255281C91

PACKING RING

SEAL, rear output shaft oil

1шт.

57

390371R1

CAGE, output shaft rear brg

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

58

390372R1

SHIM

output shaft brg cage, .007 (Or as required)

1шт.

58

390373R1

SHIM

output shaft rear brg cage, .004 (Or as required)

2шт.

58

390374R1

SHIM

output shaft rear brg cage, .012 (Or as required)

2шт.

58

390375R1

SHIM

output shaft rear brg cage, .0299

1шт.

59

257642R1

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

4-1/4 x 4-1/2 x 1/8, output shaft rear cage

1шт.

60

ST970

BEARING SET,88.92mm OD x 16.56mm W

BEARING, output shaft rear cup

1шт.

61

ST2124

BEARING ASSY,51.59mm ID x 22.23mm W

., output shaft rear cone

1шт.

62

583564R1

SNAP RING,#250, 2.356, Ext

RING, output gear snap

1шт.

63

390370R2

GEAR WHEEL

GEAR, output, 28T

1шт.

64

390368R11

SHAFT ASSY.

rear output

1шт.

65

971528R91

BEARING

ASSY., output shaft front cone

1шт.

66

13363D

TAPERED BEARING

BEARING, output shaft front cup

1шт.

67

390369R1

BUSHING

output shaft

1шт.

68

390377R1

COLLAR, drive selector

1шт.

69

17010R1

BALL,5/16" Dia

2шт.

70

395140R1

VALVE SPRING

SPRING, ball poppet

1шт.

71

395981R1

FORK

ASSY., drive selector

1шт.

395098R1

BOLT (SPREADER),Hex, 5/16" - 18 x 1 3/8"

BOLT, shift fork

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

72

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, selector shaft

1шт.

73

358236R1

RING

front output shaft snap

2шт.

74

390385R11

SHAFT

ASSY., drive selector

1шт.

75

ST382

BEARING, BALL

BEARING, front output shaft ball

1шт.

76

390379R1

GASKET

front output shaft cage

1шт.

77

390378R1

CAGE, front output shaft brg

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

78

255281C91

PACKING RING

SEAL, front output shaft oil

1шт.

79

390376R1

SHAFT, front output

1шт.

80

390349R1

SHIM

idler and mainshaft, .0299 (Or as required)

1шт.

80

390350R1

SHIM

idler and mainshaft, .004 (Or as required)

1шт.

80

390351R1

SHIM

idler and mainshaft, .007 (Or as required)

1шт.

80

390352R1

SHIM

idler and mainshaft, .012 (Or as required)

1шт.

81

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, idler gear front needle

1шт.

82

395982R1

SPIDER ,U-JOINT

BLOCK, shift fork pad

2шт.
