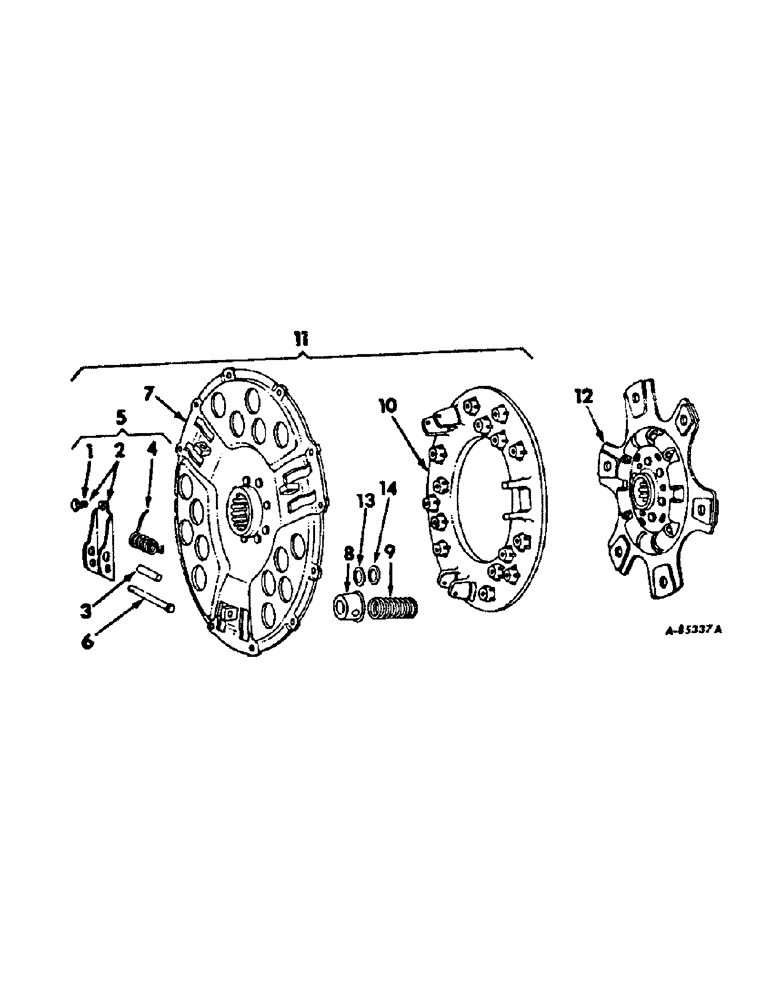

Запчасти Case IH 4186 (07-02) - DRIVE TRAIN, CLUTCH (04) - Drive Train

1

163479R2

SCREW

SCREW, clutch lever adjusting

3шт.

2

390810R92

LEVER

LEVER ASSEMBLY, clutch

3шт.

3

146810R1

AXLE PIN

PIN, lever pivot

3шт.

4

390809R2

SPRING

SPRING, clutch lever

3шт.

5

390808R92

PACKAGE

PACKAGE, clutch lever assembly

1шт.

6

146809R1

PIN

PIN, clutch lever

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 znd

3шт.

7

390806R92

PLATE

PLATE ASSEMBLY, clutch back

1шт.

8

353316R1

SPRING CUP

CUP, clutch pressure spring, 12 used w/390254R94 cover assy and 15 used w/67597C92 cover assy

1шт.

9

172062R1

SPRING

SPRING, clutch pressure, 12 used w/30254R94 cover assy and 15 used w/67597C92 cover assy

1шт.

10

390807R1

PLATE ASSY.

PLATE, clutch pressure

1шт.

11

390254R94

TRAY

COVER ASSY, clutch pressure plate, Serial Range: -11779

1шт.

11

120181C92R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate, Inc. 12 Springs

1шт.

11

120181C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

11

67597C92

COVER

COVER ASSY, clutch pressure plate, Start Serial: 11780

1шт.

11

67597C92R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate, 14 in. 17 Tooth Hub, w/ 15 Springs

1шт.

11

67597C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

12шт.

12

71087C1

DISC

SPARE PART DISC ASSY, dina-life clutch driven

1шт.

13

311291C1

INSULATING WASHER

WASHER, insulating, one per spring 172062R1

1шт.

14

311292C1

WASHER

RETAINER, washer, one per spring 172062R1

1шт.
