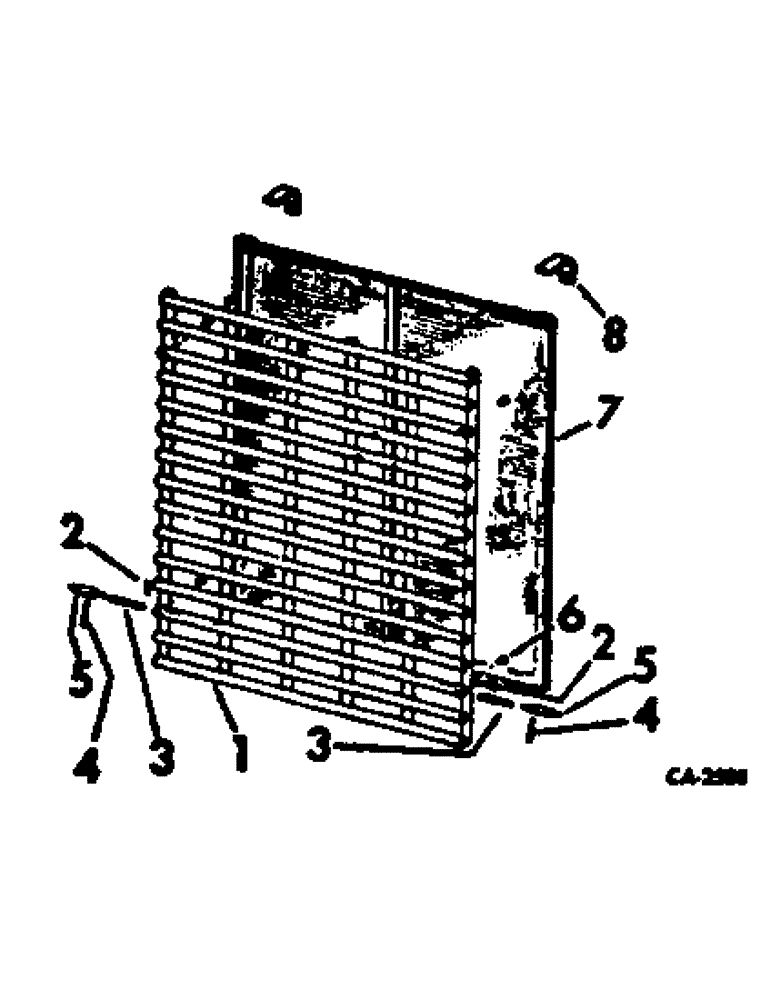

Запчасти Case IH 4186 (06-04) - COOLING, RADIATOR GRILLE AND SCREEN Cooling

1

390232R91

GRILLE ASSY, radiator, Includes ref nos 2 thru 6

1шт.

2

19372R1

PIN,3.17mm OD x 22.23mm L, Coiled

2шт.

3

390238R1

SPRING, grille latch

2шт.

4

20989R1

PIN,1/4" x 2 1/4", Coiled

2шт.

5

384124R2

PIN, grille latch

2шт.

6

390239R1

BUMPER, radiator screen

4шт.

7

390243R11

SCREEN ASSY, radiator

1шт.

8

390242R1

SPRING, radiator grille retaining

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
