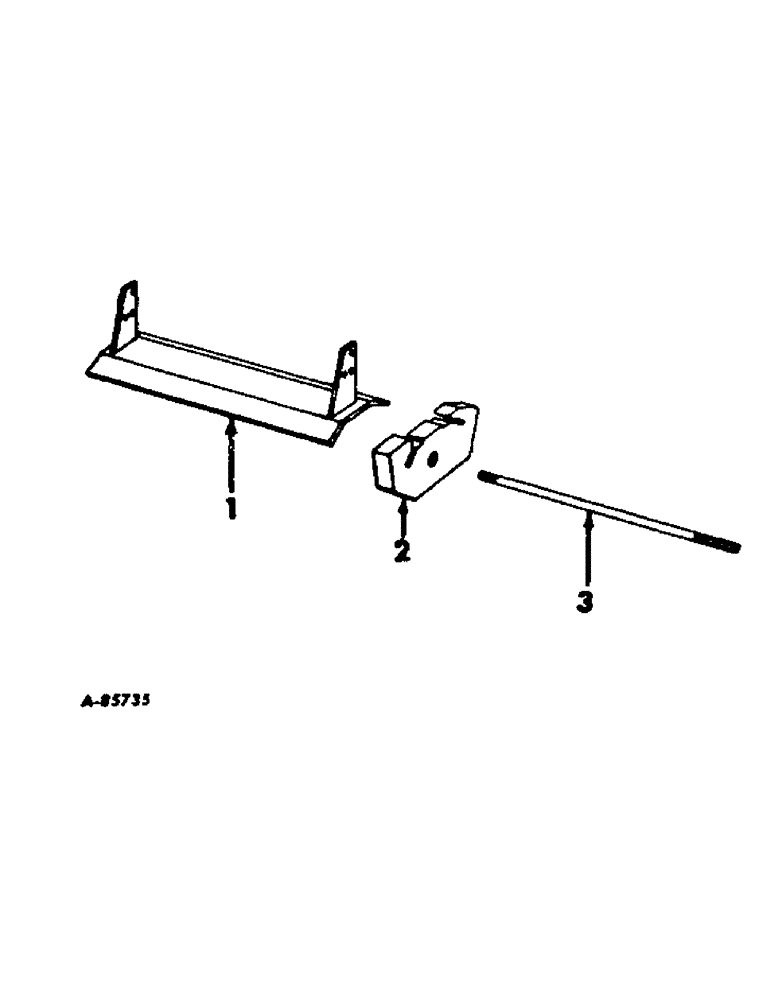

Запчасти Case IH 4186 (09-11) - FRAME, FRONT END WEIGHTS AND MOUNTING PLATE (12) - FRAME

ATTACHMENT, front end weight, 390767R91

1шт.

1

390768R11

PLATE ASSY, front weight mounting

1шт.

271720

SNAP RING,Hex, 5/8" - 11 x 1 5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 C-Z hex-hd cap

6шт.

102639

NUT,5/8"-11, G5

1шт.

2

381216R4

WEIGHT

front end, approximate weight 80 lbs each

13шт.

2

64928C1

WEIGHT, front end, approximate weight 42 O lbs each

25шт.

3

390770R3

SHAFT, front weight cross tie

1шт.

656049R1

WASHER

SPACER, .906 x 1.500 x .164

2шт.

427691

NUT

7/8-9 C-Z sq, Used only w/weight, 381216R4

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.
