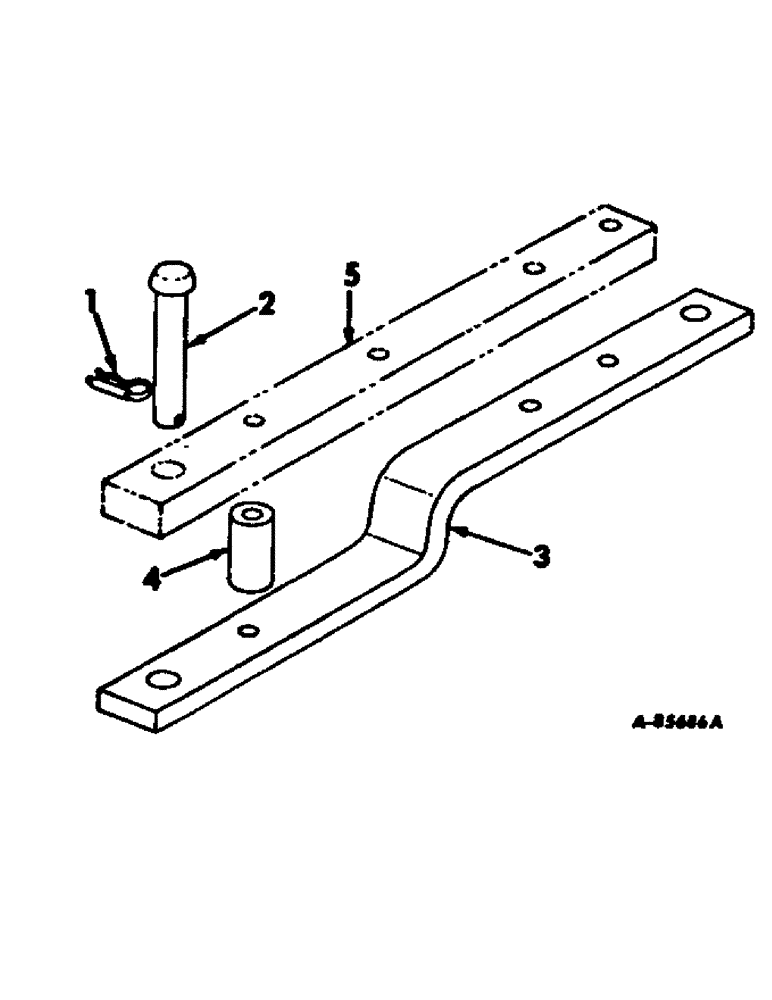

Запчасти Case IH 4186 (09-05) - FRAME, HAMMERSTRAP (12) - FRAME

1

520175R11

AXLE PIN

PIN ASSY, quick attachable cot

1шт.

2

530149R1

PIN

drawbar clevis

1шт.

3

400412R1

DRAWBAR, hammerstrap

1шт.

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 hex-hd cap

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex, tractors with three point hitch

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Tractors w/three point hitch 3/4"

1шт.

4

270937R1

SPACER, hammerstrap drawbar

1шт.

400413R1

SPACER, hammerstrap pin

1шт.

5

DRAWBAR, swinging, Refer to drawbar listing, this group

1шт.
