Запчасти Case IH 4186 (09-02) - FRAME, DRAWBAR (12) - FRAME

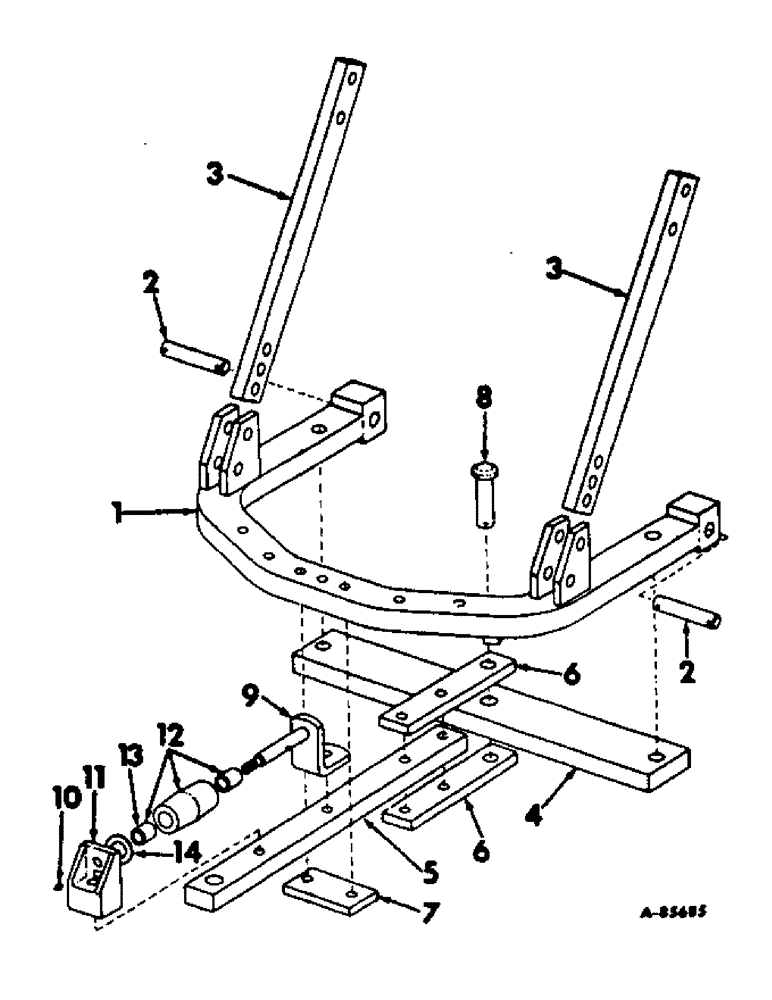

Схема запчастей Case IH 4186 - (09-02) - FRAME, DRAWBAR (12) - FRAME
8
5
11
14
6
7
2
12
3
1
13
2
6
3
10
4
9

Артикул

Название

Примечание

Количество

1

390169R11

DRAWBAR ASSY

1шт.

2

390173R2

AXLE PIN

PIN, drawbar hinge

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

3

390174R2

SUPPORT, drawbar

2шт.

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 x 2-3/4 std-hd

2шт.

520175R1

CLIP

PIN, quick attachable cot

4шт.

932388R1

PIN,1" x 3 1/2"

1 x 3-1/2 std-hd

2шт.

4

400097R1

BAR, swinging drawbar pull

1шт.

446292

SUPPORT

WASHER, 1-5/16 x 2-3/4 x .165 plain

2шт.

273048

BOLT

SCREW, 1-14 x 4-1/2 hex-hd cap

2шт.

216353

NUT,1"-14, G5

1-14 hex

2шт.

5

390177R2

DRAWBAR, swinging

1шт.

6

400098R1

BAR, swinging drawbar front

2шт.

709415R1

BOLT

SCREW, 3/4-16 x 4-1/4 hex-hd cap

2шт.

Q3592

WASHER, 25/32 x 2 x 16 ga

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

218197

NUT,3/4"-16, G5

3/4-16 hex

2шт.

7

390706R1

PLATE, swinging drawbar locknut

1шт.

272725

SNAP RING

SCREW, 3/4-10 x 5-1/4 hex-hd cap

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

2шт.

218443

NUT

3/4-10 hex jam

2шт.

8

400409R1

BAR ASSY, swinging drawbar pivot

1шт.

446302

WASHER, 1-7/16 x 3 x .180 C-Z

1шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

1шт.

9

391873R11

SHAFT

ASSY, swinging drawbar roller

1шт.

271615

VALVE

SCREW, 3/4-10 x 3 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

220081

NUT

3/4-10 hex

2шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

11

391889R1

SUPPORT ASSY.

SUPPORT, swinging drawbar roller rear

1шт.

271615

VALVE

SCREW, 3/4-10 x 3 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

12

400299R11

ROLLER

ASSY, swinging drawbar

1шт.

13

391869R1

BUSHING

swinging drawbar roller

2шт.

14

391870R1

WASHER

swinging drawbar roller

2шт.

403963R1

EXTENSION DRAWBAR

1шт.

114-720

BOLT,Hex, 3/4" - 16 x 4", Gr 5

SCREW, 3/4-16 x 4 znd hex-hd cap , Fine threads

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

426099

NUT,3/4"-16, G5

3/4-16 znd hex

3шт.

Выбрано товаров: 39
