Запчасти Case IH 4186 (09-01) - FRAME, MAIN FRAME AND CONNECTIONS (12) - FRAME

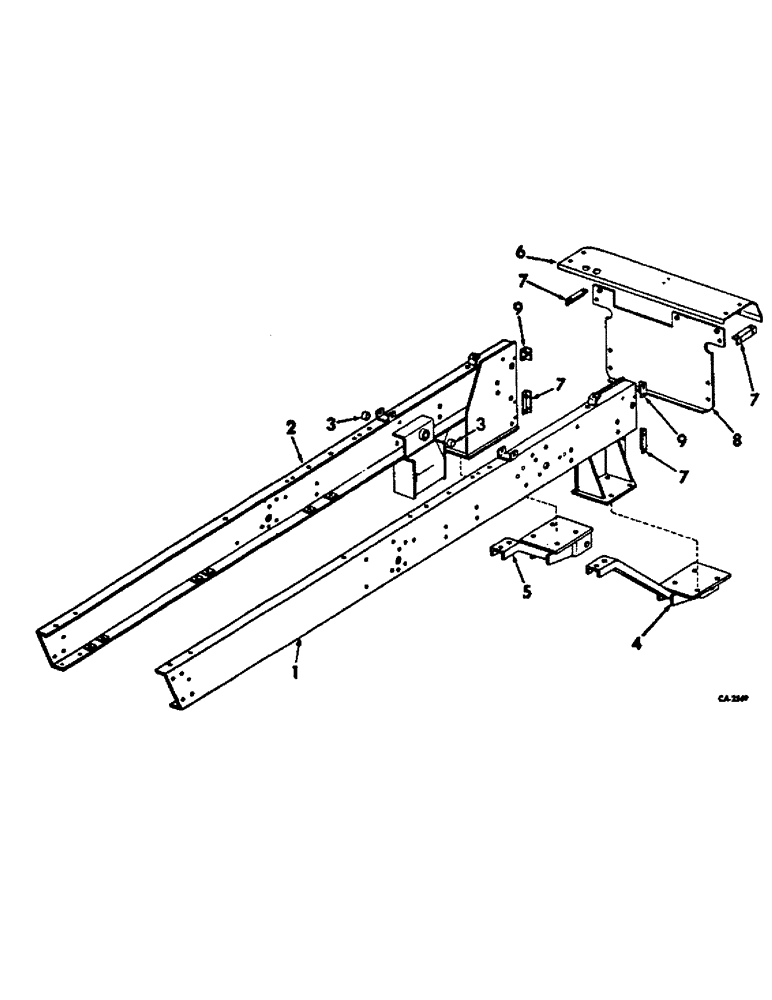

Схема запчастей Case IH 4186 - (09-01) - FRAME, MAIN FRAME AND CONNECTIONS (12) - FRAME
2
7
5
7
4
3
9
7
1
8
6
7
8

Артикул

Название

Примечание

Количество

1

68268C93

FRAME ASSY, LH

1шт.

137580H1

WASHER, bevel

12шт.

51693D

BAR

WASHER, bevel

10шт.

2

68269C93

FRAME ASSY, RH

1шт.

137580H1

WASHER, bevel

7шт.

51693D

BAR

WASHER, bevel

10шт.

3

390192R1

BUSHING

rear pivot shaft

2шт.

4

390206R11

CHANNEL ASSY, axle brace LH

1шт.

225861

NUT,5/8"-18, G8

2шт.

114498

JAM NUT,Jam, 5/8"-18, G5

2шт.

20859R1

BOLT,5/8" x 2 3/4", Gr 8

SCREW, 5/8-16 x 2-3/4 hex-hd cap type 4

2шт.

400839R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 hardened

4шт.

5

390207R11

CHANNEL ASSY, axle brace RH

1шт.

225861

NUT,5/8"-18, G8

2шт.

114498

JAM NUT,Jam, 5/8"-18, G5

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

SCREW, 5/8-18 x 1-1/2 hex-hd cap type 8

2шт.

6

393707R3

COVER, rear top

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/conical washer

7шт.

432564

HOLE PLUG BUTTON,1 3/4"

PLUG, 1-3/4 C-Z button

2шт.

7

390218R11

BRACKET ASSY, rear cover

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

8шт.

8

390215R91

COVER ASSY, rear lower

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/conical washer

6шт.

8

403953R1

COVER ASSY, rear lower, tractors w/independent PTO

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/conical washer

8шт.

120376

NUT,5/16"-18, G5

2шт.

9

390219R11

BRACKET ASSY, rear lower cover

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.
