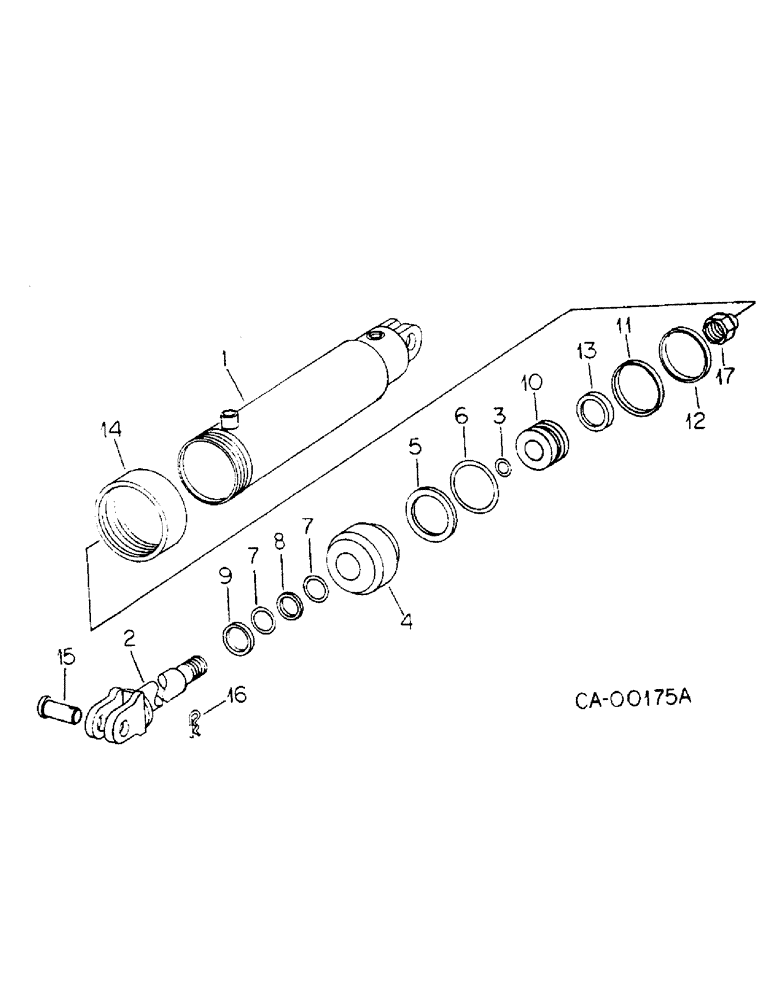

Запчасти Case IH 4186 (10-24) - HYDRAULICS, HYDRAULIC CYLINDER, TRACTORS WITH THREE POINT HITCH (07) - HYDRAULICS

403188R92

CYLINDER

ASSY, 3-1/2 x 8 double acting hydraulic, 4166 tractors also order two 61571C1 pins, Serial Range: -11951

1шт.

1

403265R2

NO LONGER SERVICED

BODY ASSY, hydraulic cylinder

1шт.

2

403268R2

ROD ASSY, piston

1шт.

3

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8, piston rod static

1шт.

4

403270R1

FITTING

HEAD, hyd cylinder front

1шт.

5

381088R1

BACK-UP RING

front head back-up

1шт.

6

352216R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

3-1/8 x 3-1/2 x 3/16, front head

1шт.

7

387362R2

BACK-UP RING

WASHER, piston rod back-up

2шт.

8

403995R1

RING

O-RING, 1-3/4 x 2-1/8 x 3/16, piston rod

1шт.

9

403845R1

WIPER SEAL

WIPER, piston rod

1шт.

10

403271R1

PISTON

head cylinder

1шт.

11

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32, piston seal

1шт.

12

381086R1

RING

SEAL, piston

1шт.

13

383005R1

RING

piston bearing

1шт.

14

381089R1

RING

head retaining

1шт.

15

61571C1

PIN

cylinder pivot headed, Replaces 388695R31 pin, Used on 403188R91 cylinder assy only

1шт.

16

520175R1

CLIP

PIN, quick attachable cot

2шт.

17

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1-1/8-12 phc hex lock, piston rod

1шт.
