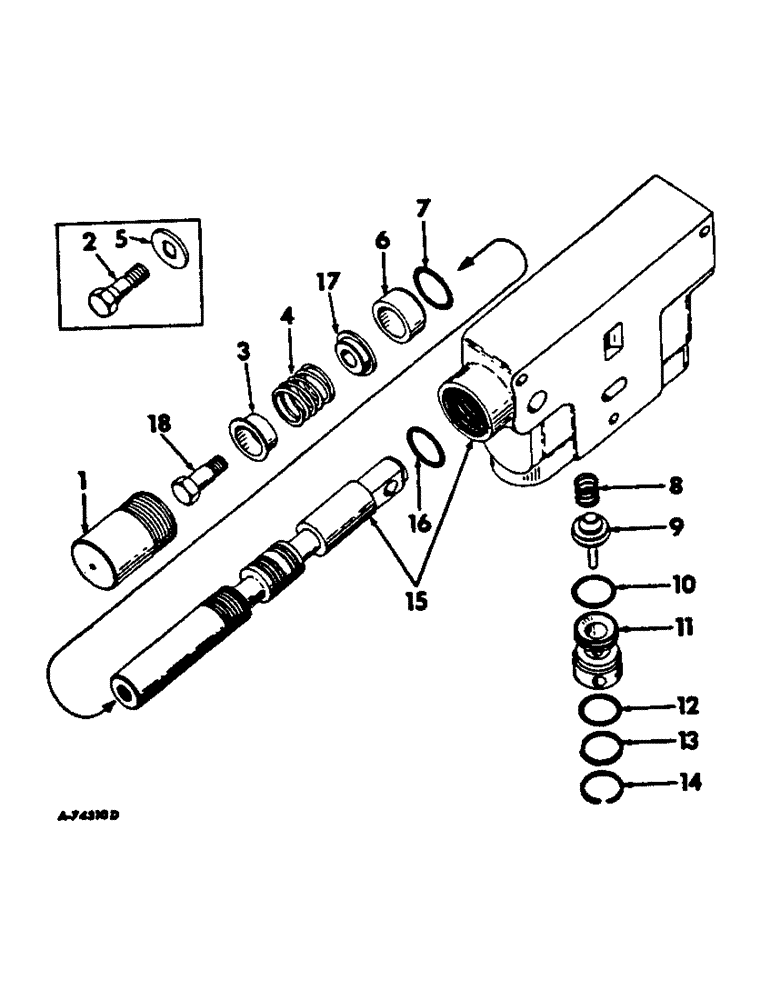

Запчасти Case IH 4186 (10-20) - HYDRAULICS, HYDRAULIC CONTROL VALVE, THREE POSITION (07) - HYDRAULICS

383271R96

VALVE ASSY, hydraulic control, open on both ends

1шт.

1

395782R2

CAP

centering spring

1шт.

2

NOT USED IN THIS APPLICATION

1шт.

3

376423R1

CUP

RETAINER, centering spring

1шт.

4

384381R1

SPRING

centering

1шт.

5

NOT USED IN THIS APPLICATION

1шт.

6

395781R3

DETENT

RETAINER, valve spool o-ring

1шт.

7

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/62, class 5, control valve spool lower

1шт.

8

395278R1

SPRING

back flow check poppet valve

1шт.

9

395277R1

VALVE

back flow check poppet, Also order spring, 395278R1

1шт.

10

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

7/8 x 1-1/16 x 3/32, class 6, check ball retainer inner

1шт.

11

383280R1

VALVE

RETAINER, valve back flow check poppet

1шт.

12

383219R1

O-RING,0.924" ID x 0.103" Width

7/8 x 1-1/16 x 3/32, class 6, check ball retainer outer

1шт.

13

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER, check poppet retainer outer

1шт.

14

537603R1

RING

check poppet retainer snap

1шт.

15

BODY ASSY, control valve, Not serviced separately, Order valve assy

1шт.

16

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

7/8 x 1-1/8 x 1/8, class 5, control valve spool upper

1шт.

17

406825R1

CAPSCREW

RETAINER, centering spring

1шт.

18

395950R1

SCREW,Hex, 7/16" - 14 x 1.24"

centering spring

1шт.

383548R92

SET OF PARTS

PACKAGE, open center control valve, Consists of

1шт.

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

383219R1

O-RING,0.924" ID x 0.103" Width

1шт.

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

383280R1

VALVE

RETAINER

1шт.

537603R1

RING

1шт.

395278R1

SPRING

1шт.

395277R1

VALVE

1шт.

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER

1шт.

548787R91

KIT

PACKAGE, three position control valve lower seal, Consists of

1шт.

395782R2

CAP

1шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

395781R3

DETENT

RETAINER

1шт.
