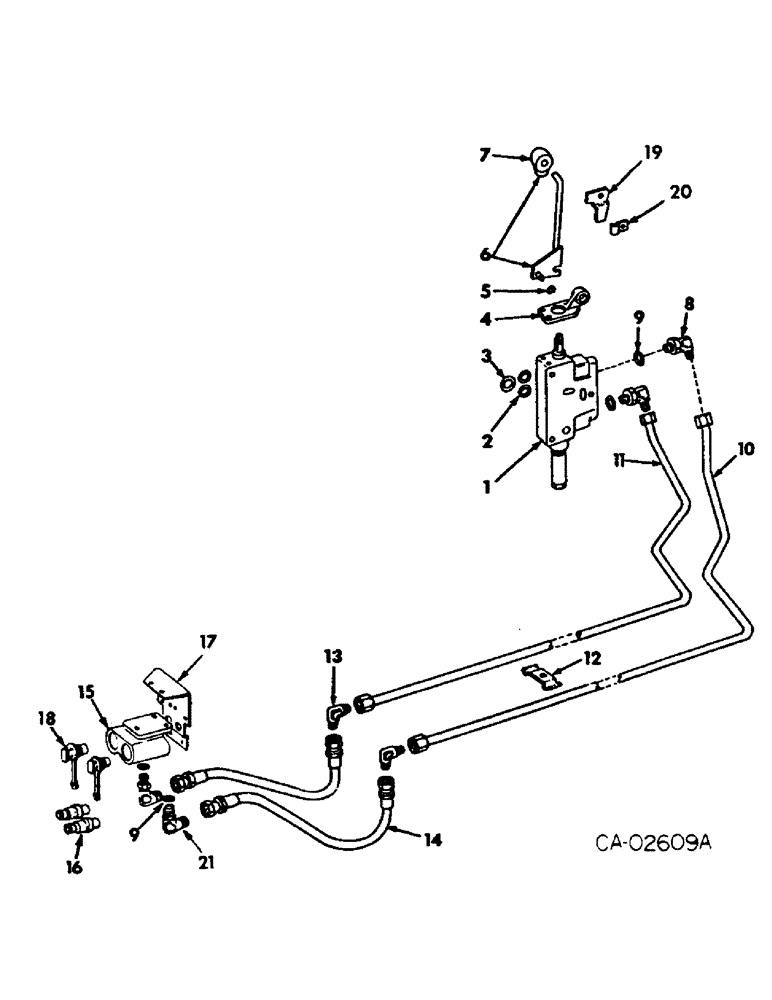

Запчасти Case IH 4186 (10-18) - HYDRAULICS, HYDRAULIC AUXILIARY VALVE, CONNECTIONS AND HANDLE (07) - HYDRAULICS

539011R91

PARTS ACCESSORY, auxiliary hyd valve w/LH manifolds

1шт.

1

529910R93

LOCK VALVE

VALVE ASSY, auxiliary control LH outlet 4 position, open on both ends, For components see list of parts under details of hydraulic control valve

1шт.

20847R1

BOLT,Hex, 3/8" - 16 x 6 1/4", Gr 8

SCREW, 3/8-16 x 6-1/4 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

2

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32

2шт.

3

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32

1шт.

4

378029R1

BRACKET

auxiliary valve

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

J547M

PIN

1/2 x 1-7/16 std-hd

1шт.

426367

SCREW, 5-16/18 x 3/4 hex-soc-hd cap

2шт.

492-21031

LOCK WASHER,5/16"

5/16"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

71/32 x 1-1/16 x .074

1шт.

5

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

6

392703R11

HANDLE ASSY, auxiliary valve LH outlet

1шт.

7

379022R2

KNOB

hyd valve control

1шт.

8

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thrd 90 deg, control valve ports

2шт.

9

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

4шт.

10

392704R11

PIPE ASSY, LH lift

1шт.

11

392705R11

PIPE ASSY, LH drop

1шт.

12

515030R1

CLAMP

pipe

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

1шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x .065 C-Z

1шт.

13

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

hyd 37 deg flared tube 90 deg union

2шт.

14

178789H1

HOSE ASSY, RH drop & lift

2шт.

15

544786R94

SPARE PART

COUPLING ASSY, female, For components see list of parts under details of female coupler listing

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap

2шт.

16

544787R91

COUPLING, BREAK AWAY

COUPLER ASSY, male, For components see list of parts under details of male coupler listing

1шт.

17

539005R1

BRACKET, coupler mounting

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

NLS

NO LONGER SERVICED

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

1шт.

18

64757C2

PLUG ASSY, dust, Replaced 537589R91 and bracket, 537588R1

1шт.

19

390874R1

PLATE, float lockout, Not included in parts accessory

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

20

341670R1

CLAMP FLOAT LOCKOUT PLATE, Not included in parts accessory

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg

2шт.
