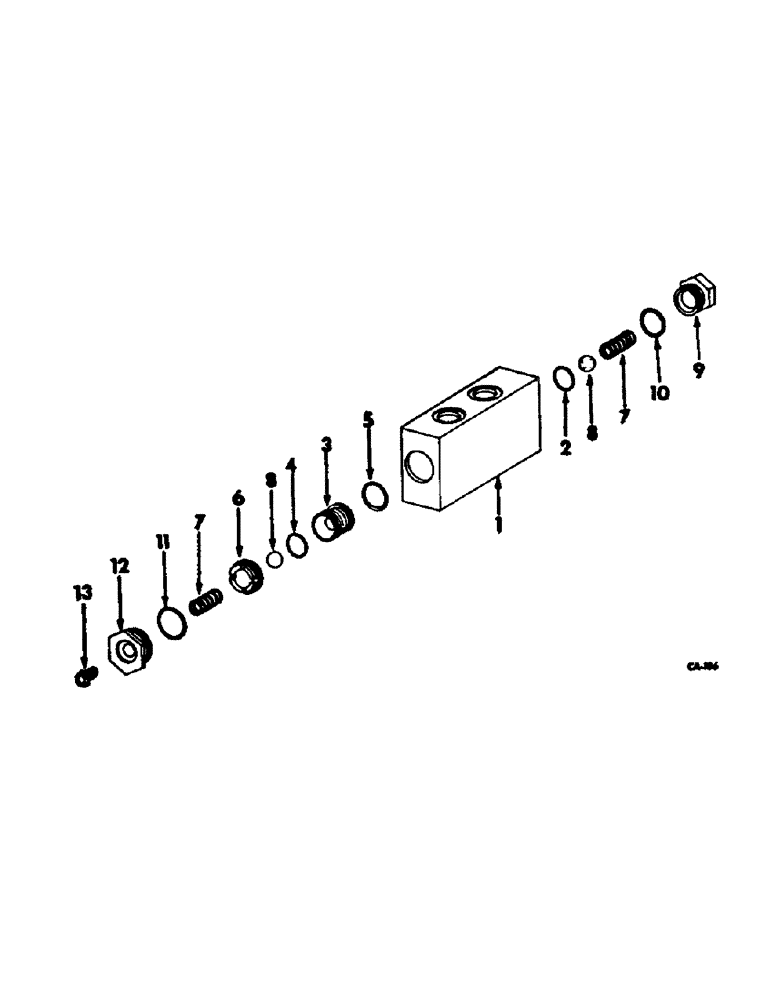

Запчасти Case IH 4186 (10-14) - HYDRAULICS, STEERING CHECK VALVE (07) - HYDRAULICS

673293R92

VALVE

ASSY, steering check

1шт.

1

BLOCK ASSY, Not serviced separately order valve assy, 673293R92

1шт.

2

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32 piston

1шт.

3

674540R1

RETAINER

check valve ball

1шт.

4

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Ball Retainer, Large

1шт.

5

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16 ball retainer

1шт.

6

374172R1

NUT

check valve ball retainer

1шт.

7

372649R1

SPRING

check valve

2шт.

8

17016R1

BALL,1/2" Dia

Check valve 1/2" Dia

2шт.

9

374089R1

PLUG

check valve spool

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, check valve small plug

1шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64, check valve relief plug

1шт.

12

377594R1

PLUG

check valve relief

1шт.

13

385702R91

VALVE

ASSY, thermal relief

1шт.
