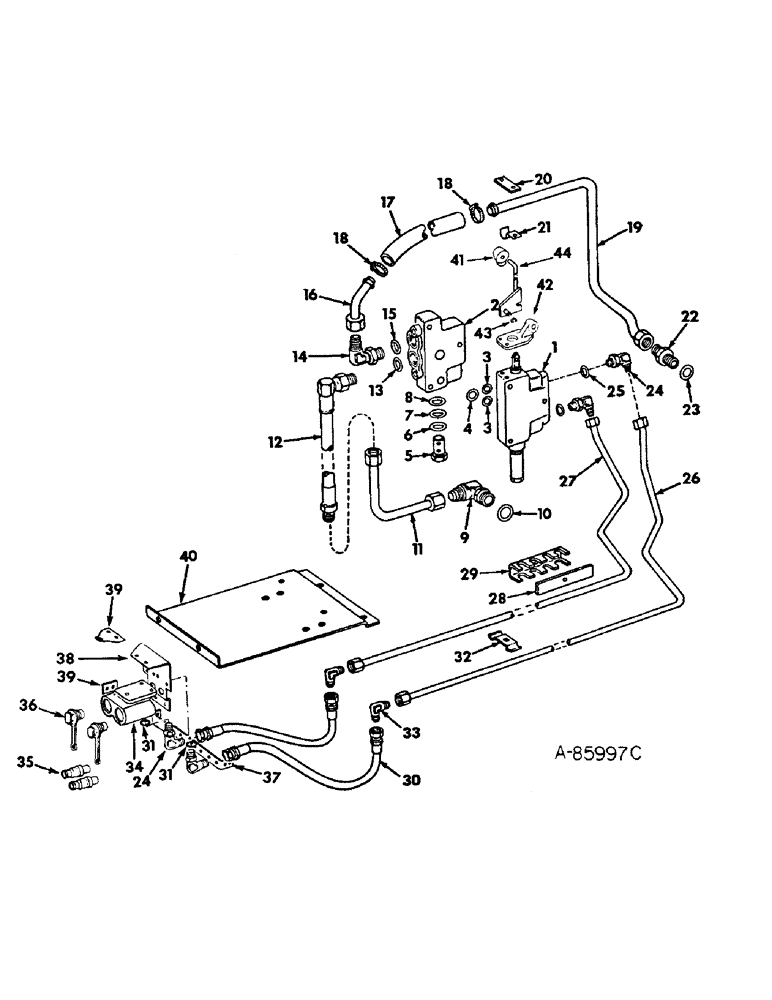

Запчасти Case IH 4186 (10-08) - HYDRAULICS, HYDRAULIC CONTROL VALVE, TUBES AND SELF-SEALING COUPLING (07) - HYDRAULICS

1

529911R93

LOCK VALVE

VALVE ASSY, hyd open center control, closed on one side, For components see list of parts under details of hydraulic control valve

1шт.

2

379361R3

COVER, valve inlet

1шт.

20844R1

SCREW,Hex, 3/8" - 16 x 4 1/8", Gr 8

3/8-16 x 4-1/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32

2шт.

4

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32

1шт.

5

388208R93

VALVE

ASSY, pilot relief, 2000 PSI, For components see list of parts under details of pilot relief valve

1шт.

6

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, relief valve outer

1шт.

7

378985R2

BACK-UP RING

backup

1шт.

8

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, relief valve inner

1шт.

9

9410980

ELBOW,90 Degree, 1 3/16"-12, 37 Degree x 1 3/16"-12, O-Ring

1-3/16-12 37 deg hyd flared tube adj str thd 90 deg, pump pressure port

1шт.

10

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64, pump pressure port elbow seal

1шт.

11

390623R11

TUBE

PIPE ASSY, control valve power supply

1шт.

12

470611R91

HOSE ASSY.,19.05mm ID x 444.5mm L, SAE 100R2

HOSE ASSY, control valve power supply

1шт.

13

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64, hose assy seal

1шт.

14

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1-5/16-12 37 deg hyd flared tube adj str thd 90 deg, control valve cover return port

1шт.

15

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1-11/64 x 1-23/64 x 3/32, control valve cover elbow seal

1шт.

16

390624R11

TUBE

PIPE ASSY, control valve return short

1шт.

17

390625R1

HOSE, control valve return

1шт.

18

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

ASSY, control valve return hose

2шт.

19

390626R11

TUBE

PIPE ASSY, control valve return long

1шт.

20

390627R1

STRIP, return tube support bracket

1шт.

21

390628R1

CLIP

return tube

1шт.

109084

NUT,1/4"-20, G5

2шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1-5/16-12 37 deg hyd flared tube, control valve return tube to transfer case

1шт.

23

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1-11/64 x 1-23/64 x 3/32, connector seal

1шт.

24

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg, RH control valve tube ports

4шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, elbow seal

2шт.

26

390629R11

PIPE ASSY, RH lift

1шт.

37

390631R11

PIPE ASSY, RH drop

1шт.

28

467192R2

BRACKET

tube

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

SCREW, 5/16-18 x 2-1/4 C-Z hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

29

390789R1

SPACER, tube bracket

1шт.

30

178789H1

HOSE ASSY, RH drop and lift

2шт.

31

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, self-sealing connector seal

4шт.

32

515030R1

CLAMP

pipe

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

1шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x .065 C-Z

1шт.

33

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

hyd 37 deg flared tube 90 deg union

2шт.

34

544786R94

SPARE PART

COUPLER ASSY, female, For components see list of parts under details of female coupler listing, this group

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap

2шт.

35

544787R91

COUPLING, BREAK AWAY

COUPLER ASSY, male

2шт.

36

64757C2

PLUG ASSY, coupler dust, Replaces 537589R91 and bracket, 537588R1

1шт.

37

539003R1

STRAP, coupler mounting bracket

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

102635

NUT,3/8"-16, G5

4шт.

38

539004R1

SPACER, coupler mounting

2шт.

39

539005R1

BRACKET, coupler mounting

1шт.

102635

NUT,3/8"-16, G5

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd cap

1шт.

40

393708R11

BRACKET ASSY, junction block support

1шт.

40

403959R1

BRACKET ASSY, junction block support, tractors w/independent PTO

1шт.

21860R1

NUT, 3/8 x 7/8 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/conical washer

2шт.

41

379022R2

KNOB

hyd valve control

1шт.

42

378029R1

BRACKET

auxiliary valve

1шт.

426367

SCREW, 5/16-18 x 3/4 hex-soc-hd cap

2шт.

108579

BUSHING,5/16"

5/16"

2шт.

J547M

PIN

1/2 x 1-7/16 std-hd

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .074

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

43

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

44

390248R91

HANDLE ASSY, RH auxiliary valve

1шт.
