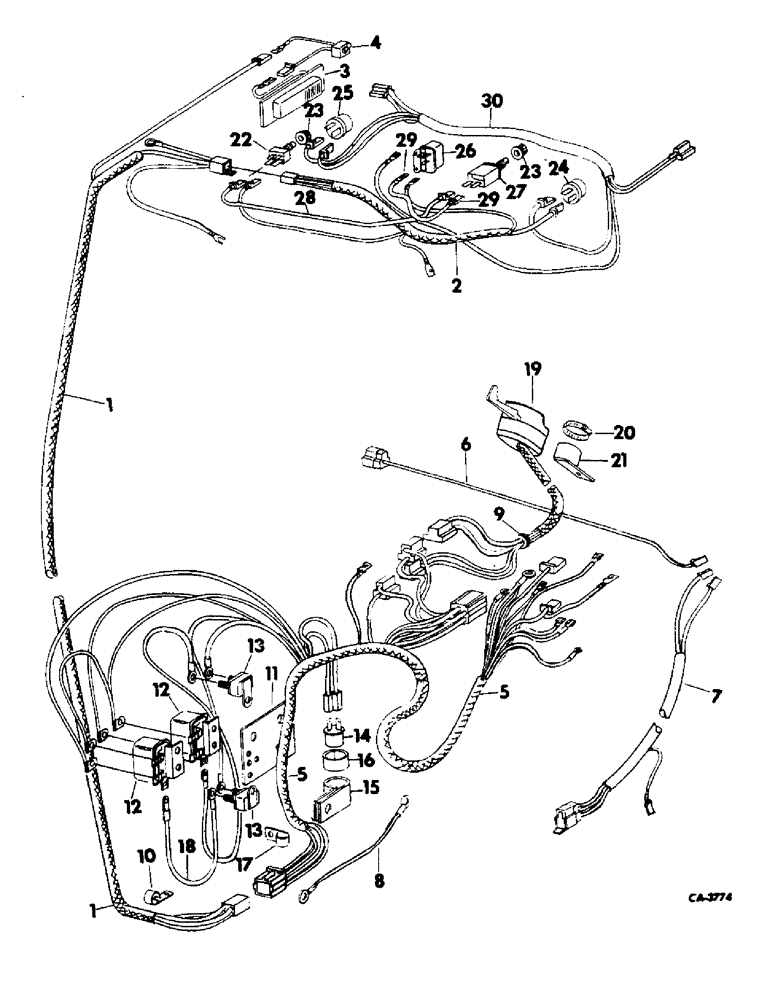

Запчасти Case IH 4166 (08-24) - ELECTRICAL, TRACTOR CAB WIRING AND CONNECTIONS, 4166 TRACTORS (06) - ELECTRICAL

1

66391C1

HARNESS, cab cable, cab w/heating only

1шт.

1

66392C1

HARNESS, cab cable, cab w/heating and a/c

2шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 znd ext-int tooth lock

1шт.

2

539032R1

HARNESS, blower wire, cab w/heating only

1шт.

2

66384C1

HARNESS, blower wire, cab w/heating and a/c

1шт.

3

533526R91

LIGHT ASSY, cab dome, Only serviceable parts are lamp, 142456, lens 533939R1, and two screws 155178

1шт.

23956R1

SCREW, no. 8-18 x 3/4 C-Z slt-f-hd tap

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 znd ext-int tooth lock

2шт.

4

539023R1

SWITCH

dome light

1шт.

5

65032C1

HARNESS ASSY, light switch & cab power cable

1шт.

6

65244C1

CABLE ASSY, right turn signal light

1шт.

7

65033C1

HARNESS ASSY, combination rear & turn signal lights

1шт.

8

65052C1

CABLE ASSY, ground jumper, Serial Range: tractor-cab

1шт.

9

363846R1

GROMMET

turn signal switch cable rubber

1шт.

10

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

1шт.

178556

WASHER,Ext-Int Tooth, 7/16"

3/8 znd int-ext tooth lock

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

65016C1

BRACKET, cab relay

1шт.

PO11230

SPACER,3/8" Pipe x .406"

.493 id x .675 od x .406

2шт.

178556

WASHER,Ext-Int Tooth, 7/16"

3/8 znd int-ext tooth lock

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

12

1115841

RELAY

electric load, 1 for cabs w/heater, 2 for cabs with heater & air conditioner

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap, 2 per relay

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 C-Z int-ext tooth lock, 2 per relay

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2 per relay 1/4"-20, G5

1шт.

13

403069R1

CIRCUIT-BREAKER,30A

BREAKER, circuit, 30 amp, cabs w/heater

1шт.

13

403069R1

CIRCUIT-BREAKER,30A

BREAKER, circuit, 30 amp, cabs with heater & air conditioner

2шт.

120614

NUT,Hex, #10 - 32

NUT, , 2 per breaker #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, , 2 per breaker #10

1шт.

14

394132R91

FLASHER UNIT

FLASHER, turn signal & warning light

1шт.

15

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

16

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

17

384557R1

CLIP

light switch and cab panel cable harness

1шт.

18

403070R2

CABLE ASSY, relay to circuit breaker, w/heater

1шт.

18

403070R2

CABLE ASSY, relay to circuit breaker, cabs with heater & air conditioner

2шт.

19

401612R2

SIGNAL

SWITCH, turn signal

1шт.

20

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

CLAMP, switch mounting

1шт.

21

401609R1

BRACKET ASSY, turn signal switch

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 C-Z int-tooth lock

1шт.

192280

HOLE PLUG BUTTON,1 1/4"

PLUG, 1-1/4 C-Z button

1шт.

22

539052R2

SWITCH

blower

1шт.

23

539024R1

KNOB

switch

2шт.

24

539069R2

SWITCH

high pressure, cab w/heating and a/c

1шт.

25

539061R2

SWITCH

low pressure, cabs w/heating and a/c

1шт.

26

1116972

RELAY

replaces 275240C91, cabs w/heating and a/c

1шт.

26

1116972GV

RELAY

replaces 275240C91, cabs w/heating and a/c

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 cr-rec-pan-hd machine

2шт.

27

70500C2

SWITCH

thermostat service, cabs w/heating and a/c

1шт.

28

70832C1

CABLE

thermostat switch, cabs w/heating and a/c

1шт.

29

66387C1

CABLE, relay

1шт.

30

66393C1

HARNESS ASSY, condensor, cab w/heating and a/c, cabs with heating and a/c

1шт.
