Запчасти Case IH 4166 (08-19) - ELECTRICAL, SIDE HEAD LIGHTS, IN FENDERS (06) - ELECTRICAL

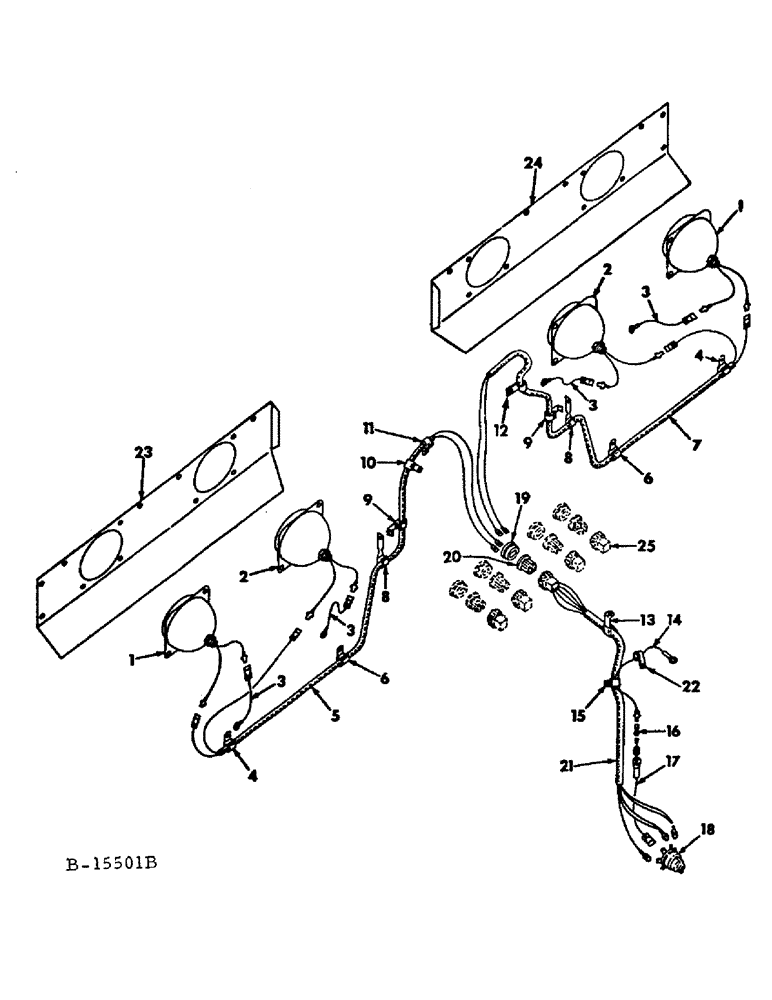

Схема запчастей Case IH 4166 - (08-19) - ELECTRICAL, SIDE HEAD LIGHTS, IN FENDERS (06) - ELECTRICAL
1
6
3
12
3
22
8
4
5
25
4
23
21
18
3
6
19
3
24
11
16
9
13
20
1
10
8
14
2
17
9
15
7
2

Артикул

Название

Примечание

Количество

390755R91

PARTS ACCESSORY, side head lights

1шт.

1

387730R91

LIGHT

ASSY, outer shock proof head, Only serviceable items are

2шт.

373662R91

LAMP

ASSY, seal beam, Optional w/131508C1

1шт.

131508C1

LAMP BASE

LAMP ASSY, seal beam, Tungsten, halogen, Optional w/373662R91

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

676078R1

RETAINER

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

head light mounting

6шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .049 C-Z

6шт.

2

390747R91

LIGHT ASSY, inner shock proof head, Only serviceable items are sealed beam unit, 390756R91 & retainer, 676078R1

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

head light mounting

6шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .049 C-Z

6шт.

3

405209R1

CABLE

ASSY, head, Serial Range: light-ground

4шт.

4

362121R1

CLIP

head light harness, on outer head light mounting bolt, LH and RH side

2шт.

5

390752R91

HARNESS ASSY, LH head light cable

1шт.

6

362121R1

CLIP

head light harness, on inner head light mounting bolt, LH and RH side

2шт.

7

390753R91

HARNESS ASSY, RH head light cable

1шт.

8

363660R1

CLIP

head light harness, on top fender mounting bolt, LH & RH side

2шт.

9

370383R1

CLIP

head light harness, on top fender mounting bolt, LH & RH side

2шт.

10

366460R1

CABLE CLIP

CLIP, head light harness, on air cleaner upper LH mounting bolt

1шт.

11

366460R1

CABLE CLIP

CLIP, head light harness, on air cleaner top mounting bolt

1шт.

12

384554R1

CLIP

head light harness, on upper RH hole in heat baffle

1шт.

13

362126R1

CLIP

lighting switch harness, on steering support bracket RH mounting bolt, bend 90 deg

1шт.

14

390749R91

CAP ASSY, fuse housing

1шт.

15

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, lighting switch harness, on steering support cover upper LH mounting bolt

1шт.

16

432644

FUSE,20 Amp, Type SFE

20 ampere

1шт.

17

390750R91

HOUSING ASSY, fuse

1шт.

18

390748R93

SWITCH

ASSY, lighting

1шт.

19

390533R1

GROMMET, 8 contact bulkhead connector

1шт.

20

390532R1

CONNECTOR, bulkhead, 8 contact

1шт.

21

390751R91

HARNESS ASSY, lighting switch cable

1шт.

22

366460R1

CABLE CLIP

CLIP, fuse housing cap cable, on steering support cover upper RH mounting bolt

1шт.

23

393714R2

PLATE, LH head light mounting

1шт.

24

393715R2

PLATE, RH head light mounting

1шт.

25

CONNECTOR, bulkhead, Refer to starting and lighting listing, this group

1шт.
