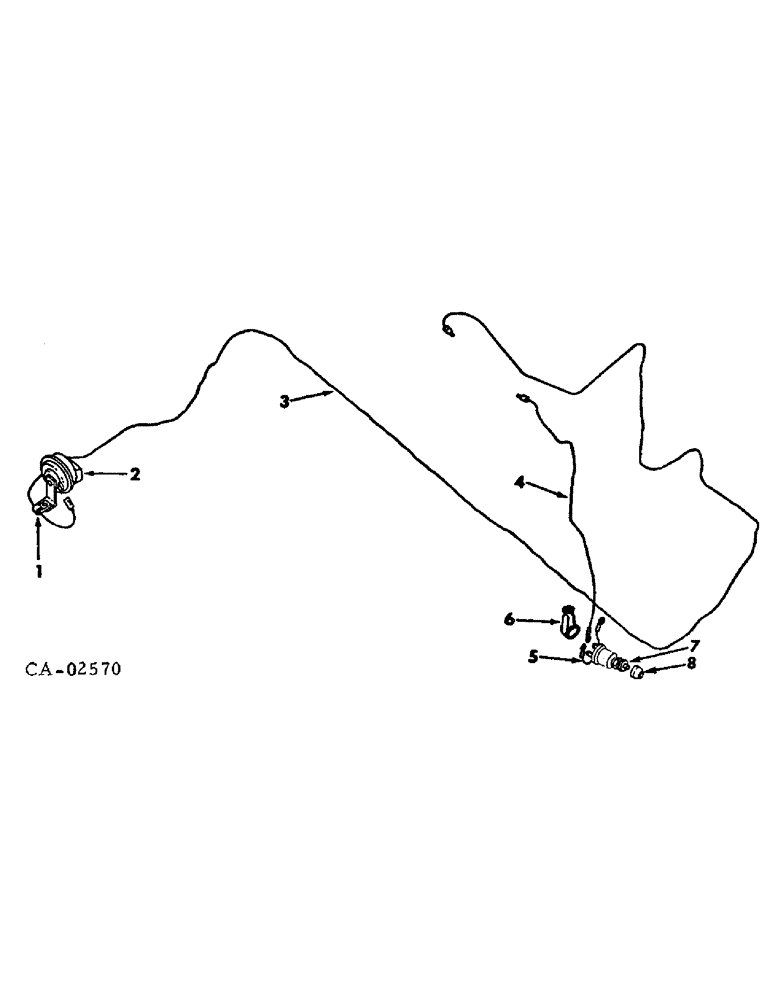

Запчасти Case IH 4166 (08-18) - ELECTRICAL, ELECTRIC HORN (06) - ELECTRICAL

1

366460R1

CABLE CLIP

CLIP, horn to bulkhead connector cable

1шт.

2

9000239

HORN

ASSEMBLY, 166166R91

1шт.

120376

NUT,5/16"-18, G5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

405215R1

CABLE ASSY, horn to bulkhead connector

1шт.

4

405216R1

CABLE ASSY, horn switch to switch panel harness connector

1шт.

5

404391R1

CABLE

ASSY, horn switch to junction block

1шт.

6

364910R1

BOOT

COVER, horn switch terminal block

1шт.

7

393209R91

SWITCH

horn

1шт.

8

371487R1

CYLINDER END CAP

CAP, horn switch dust

1шт.
