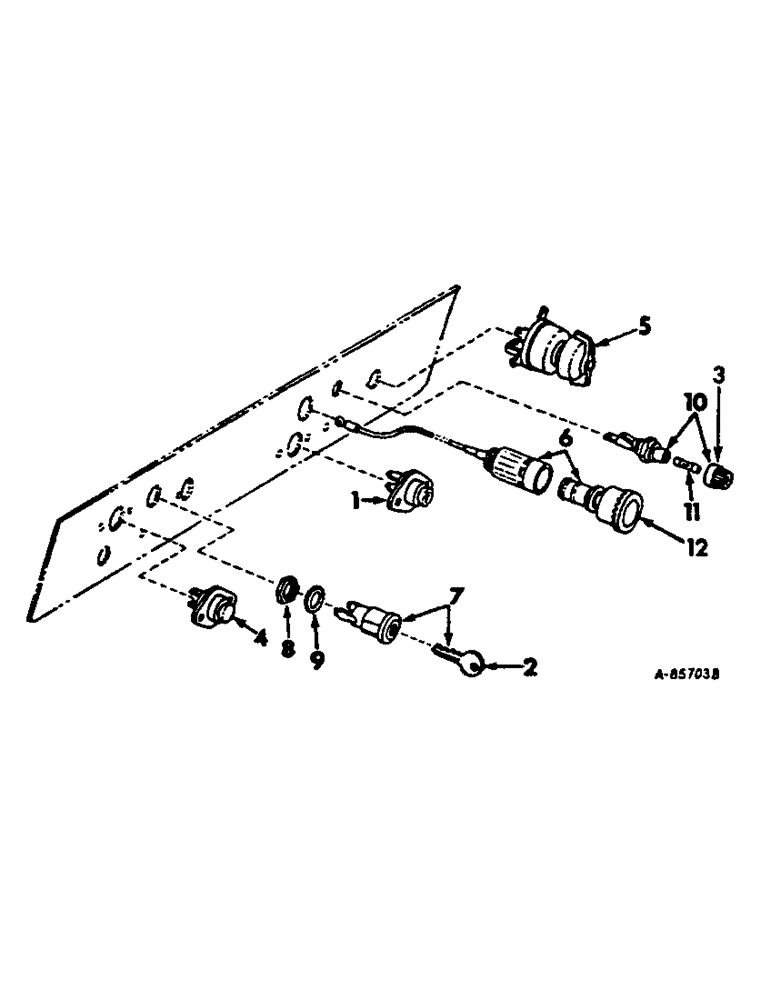

Запчасти Case IH 4166 (08-17) - ELECTRICAL, SWITCHES, CIGARETTE LIGHTER AND FUSE (06) - ELECTRICAL

1

397940R93

SWITCH

ether injection solenoid control

1шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 C-Z slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

2

131313C1

KEY, IGNITION

KEY, switch

1шт.

3

356445R91

KNOB

fuse holder

1шт.

4

366317R93

SWITCH

ASSY, push button starting

1шт.

4

366317R93GV

CONTROL

Value, Control Switch

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 C-Z slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

403571R2

SWITCH

lighting, 4166 tractors

1шт.

107200C2

LIGHT SWITCH

SWITCH ASSY, lighting, 4186 tractors

1шт.

6

382672R91

LIGHTER, CIGARETTE

LIGHTER ASSY, cigarette

1шт.

7

403562R2

SWITCH

ASSY, ignition key

1шт.

8

365502R1

NUT

key switch mounting

1шт.

9

375431R1

LOCK WASHER

key switch mounting

1шт.

10

376852R91

HOUSING

ASSY, fuse

1шт.

11

9426333

FUSE,15 Amp, Type 3AG

cartridge type 3 AGC, 15 amp

1шт.

11

432644

FUSE,20 Amp, Type SFE

cartridge type 3 AGC, 20 amp

1шт.

12

378781R91

PACKAGE

UNIT, pop-out

1шт.
