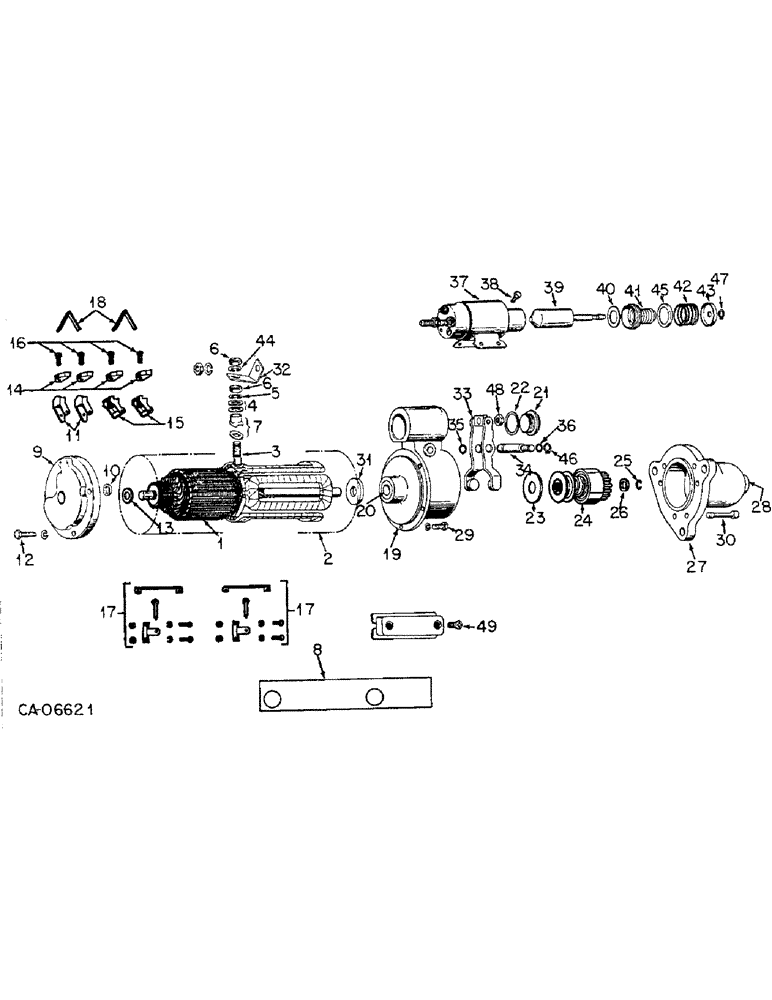

Запчасти Case IH 4166 (08-15) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, 4166 WITH SERIAL NO. 12232 AND ABOVE, ALL 4186 TRACTORS (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1113439
MOTOR, ELECTRIC
MOTOR ASSY, cranking, 12 volt
1шт.
104210A1R
REMAN-STARTER
Remanufactured Starter
1шт.
104210A1C
CORE-STARTER
Return Number
1шт.
87297332
REMAN-STARTER
Starter
1шт.
87297333
CORE-STARTER
Return Number
1шт.
87297336
REMAN-STARTER
Starter
1шт.
87297337
CORE-STARTER
Return Number
1шт.
104208A1R
REMAN-STARTER
Remanufactured Starter
1шт.
104208A1C
CORE-STARTER
Return Number
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
1шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
NUT, Jam, 3/8"-16, G5
1шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
BOLT, 3/8-16 x 1-1/4 hex-hd cap
3шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
110730
LOCK WASHER
WASHER, 3/8 light lock
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
1
1852981
ARMATURE
ARMATURE
1шт.
2
1852985
COIL
SPARE PART COIL, field, 4 coils
1шт.
3
1950561
STUD
STUD, coil terminal
1шт.
4
1922457
WASHER
WASHER, coil terminal stud insulated
2шт.
5
1914647
WASHER
WASHER, coil terminal stud plain
1шт.
6
9414418
NUT
NUT, coil terminal stud
2шт.
7
1965472
PACKAGE
PACKAGE, coil terminal stud insulating bushing
1шт.
8
1914873
INSULATOR
INSULATION, field coil
2шт.
9
1891925
FRAME
FRAME, commutator end
1шт.
1891929
WICK
WICK, commutator end frame oil
1шт.
10
1891927
BUSHING
BUSHING, commutator end frame
1шт.
11
1940477
HOLDER
HOLDER, commutator brush grounded
2шт.
12
1914869
SCREW
SCREW, commutator end frame
4шт.
13
1914842
WASHER
WASHER, commutator end frame wear
1шт.
14
1906987
BRUSH
BRUSH, commutator
4шт.
15
1950546
HOLDER
HOLDER, commutator brush insulated
2шт.
16
1959514
SCREW
SCREW, commutator brush holder
4шт.
17
1877164
COMMUTATOR BRUSH
PACKAGE, commutator brush support
2шт.
18
1945620
SPRING
SPRING, commutator brush
2шт.
19
1852967
HOUSING
HOUSING, brake lever, For 1113398
1шт.
19
1851986
HOUSING
SPARE PART HOUSING, brake lever, For 1113439
1шт.
1916439
WICK
WICK, brake lever housing oil
1шт.
20
1933999
BUSHING
BUSHING, brake lever housing
1шт.
21
1945356
PLUG
PLUG, brake lever housing inspection
1шт.
22
1964857
GASKET
GASKET, brake lever housing inspection plug
1шт.
23
NLS
NO LONGER SERVICED
brake lever housing
1шт.
24
1877350
DRIVE
DRIVE, clutch motor
1шт.
25
1928022
SNAP RING
RING, pinion stop retainer
1шт.
27
830711
HOUSING
HOUSING, drive end
1шт.
1916439
WICK
WICK, drive end housing oil
1шт.
28
1955994
BUSHING
BUSHING, drive end housing
1шт.
29
1914869
SCREW
SCREW, lever housing
5шт.
30
1870513
SCREW
SCREW, drive end housing
6шт.
31
1851959
SPACER
WASHER, brake lever housing & armature
1шт.
32
CONNECTOR, switch, Not serviced separately
1шт.
33
1851954
LEVER
LEVER, shift
1шт.
34
1851953
SHAFT
SHAFT, shift lever
1шт.
35
1914373
O-RING
O-RING, shift lever shaft 15/64
1шт.
36
1921805
GASKET
O-RING, shift lever shaft 1/2
1шт.
37
1115530
IGNITION SWITCH
SWITCH ASSY, solenoid, Optional w/121904C1
1шт.
37
121904C1
SOLENOID SWITCH
SWITCH ASSY, solenoid, Optional w/1115530
1шт.
38
1930611
LOCK SCREW
SCREW AND LOCKWASHER, solenoid switch
1шт.
39
1851966
PLUNGER
PLUNGER, solenoid switch
1шт.
40
1948519
WASHER
WASHER, solenoid switch spring retainer
1шт.
42
1948521
SPRING
SPRING, plunger return
1шт.
43
1942282
PIN
RETAINER, plunger spring 13/32 hole
1шт.
44
9421427
WASHER
WASHER, terminal stud lock
1шт.
45
1948520
RETAINER
RETAINER, plunger spring 1-13/64 hole
1шт.
46
9415235
RING, SNAP
RING SNAP RING, shift lever shaft pin snap
1шт.
47
9415235
RING, SNAP
RING SNAP RING, shift lever spring retainer snap
1шт.
48
1851995
NUT
NUT, plunger rod guide adjusting
1шт.
49
1968396
SCREW
SCREW, commutator pole shoe
8шт.
Выбрано товаров: 70
