Запчасти Case IH 4166 (08-13) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, 4166 WITH SERIAL NO. 12231 AND BELOW (06) - ELECTRICAL

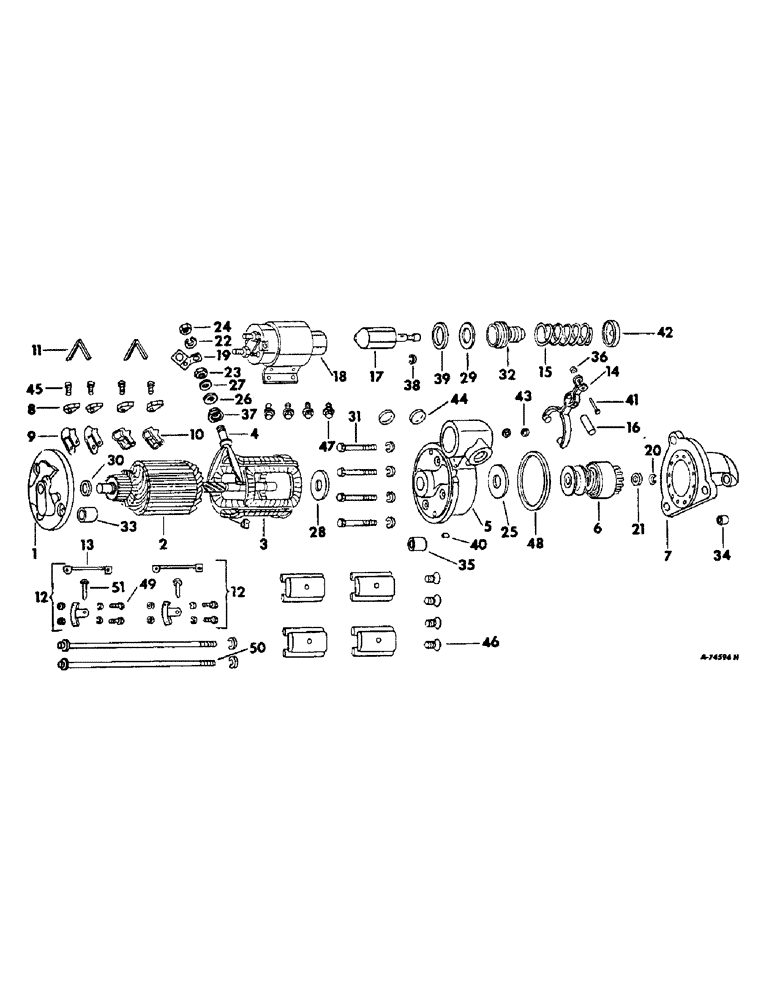

Схема запчастей Case IH 4166 - (08-13) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, 4166 WITH SERIAL NO. 12231 AND BELOW (06) - ELECTRICAL
40
42
5
16
15
34
9
22
30
50
1
8
4
36
44
37
26
3
14
12
27
48
39
31
41
21
10
3
49
32
47
51
29
2
20
43
46
11
35
45
24
23
16
25
33
7
18
12
28
38
6
17

Артикул

Название

Примечание

Количество

1113647

STARTER MOTOR

MOTOR ASSY, cranking, 12 volt

1шт.

104210A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104210A1C

CORE-STARTER

Return Number

1шт.

87297332

REMAN-STARTER

Starter

1шт.

87297333

CORE-STARTER

Return Number

1шт.

87297336

REMAN-STARTER

Starter

1шт.

87297337

CORE-STARTER

Return Number

1шт.

104208A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104208A1C

CORE-STARTER

Return Number

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

110730

LOCK WASHER

WASHER, 3/8 light lock

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

1

1945617

HOLDER

FRAME W/BUSHING, 1872678 plug, 125947 & wick, 1909654 commutator end

1шт.

R15023

WICK

WICK, oil

1шт.

2

1959458

ARMATURE

ARMATURE

1шт.

3

1959456

COIL

COIL ASSY, field, 4 coils

1шт.

1913534

FOAM INSULATION

INSULATION, field coil

2шт.

4

1933879

TERMINAL CONNECTOR

STUD, terminal

1шт.

5

1942241

HOUSING

HOUSING ASSY, lever, Composed of

1шт.

1933999

BUSHING

BUSHING

1шт.

9411375

PLUG

PLUG

2шт.

1942957

PLUG

PLUG

1шт.

1936465

WICK

WICK

1шт.

1936465

WICK

WICK, oil

1шт.

6

1877350

DRIVE

MOTOR ASSY, drive

1шт.

7

1953012

HOUSING

HOUSING W/BUSHING, 1943628 plug, 125947 & wick, 1909654, drive

1шт.

1909654

SET OF MAIN BRGS -

WICK, oil

1шт.

8

1906987

BRUSH

BRUSH

4шт.

9

1926617

BRUSH HOLDER

HOLDER, brush ground

2шт.

10

1950546

HOLDER

HOLDER, brush insulated

2шт.

11

1945620

SPRING

SPRING, brush

2шт.

12

1945923

PACKAGE

PACKAGE, brush support

2шт.

13

1930694

CABLE

LEAD, ground

2шт.

14

1942245

LEVER

LEVER, shift

1шт.

15

1942260

SPRING

SPRING, lever

1шт.

16

1942255

STUD

SHAFT, lever

1шт.

17

1942250

PLUNGER

PLUNGER

1шт.

18

1115510

SOLENOID SWITCH

SWITCH ASSY, solenoid, Optional w/65479C1

1шт.

18

65479C1

SOLENOID

SWITCH ASSY, solenoid, Optional w/1115510

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

1946394

CONNECTOR, ELEC

CONNECTOR CONNECTOR, switch

1шт.

20

1928022

SNAP RING

RING, pinion stop retainer

1шт.

21

1928021

COLLAR

COLLAR, pinion stop

1шт.

22

120381

WASHER

WASHER, terminal stud lock

1шт.

23

805258

NUT

NUT, terminal stud, 5.32 in. thick

1шт.

24

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, , Terminal stud outer Jam, 3/8"-16, G5

1шт.

25

821453

WASHER

brake, between lever housing & motor drive

1шт.

26

1857268

INSULATING WASHER

WASHER, insulating terminal stud

2шт.

27

805790

WASHER

WASHER, terminal stud plain

1шт.

28

1946395

WASHER

WASHER, space, between lever housing & armature

1шт.

29

1942259

WASHER

WASHER, retaining spring

1шт.

30

833602

WASHER

WASHER, commutator end space

1шт.

31

122077

PLUG

drive housing attaching

4шт.

32

1942257

BOOT

BOOT

1шт.

33

1872678

BUSHING

BUSHING, commutator end

1шт.

34

1943628

BUSHING

BUSHING, drive end

1шт.

35

1933999

BUSHING

BUSHING, lever housing

1шт.

36

1938376

RING, SNAP

RING SNAP RING, lever attaching pin snap

1шт.

37

1931783

INSULATOR

BUSHING, insulating terminal stud

1шт.

38

9415234

SNAP RING

RING, spring retainer snap

1шт.

39

1942256

RETAINER

RETAINER, spring 1-3/64 in. hole

1шт.

40

809593

PIN

PIN, drive housing dowel

1шт.

41

1942253

PIN

PIN, lever actuating

1шт.

42

1942282

PIN

RETAINER, spring, 13/32 in. hole

1шт.

43

1942957

PLUG

PLUG, 1/2 diameter lever housing

2шт.

44

9411375

PLUG

PLUG, 1-3/16 diameter level housing

2шт.

45

NOT USED IN THIS APPLICATION

1шт.

46

NOT USED IN THIS APPLICATION

1шт.

47

NOT USED IN THIS APPLICATION

1шт.

48

NOT USED IN THIS APPLICATION

1шт.

49

NOT USED IN THIS APPLICATION

1шт.

50

1883865

BOLT

BOLT

2шт.

51

NOT USED IN THIS APPLICATION

1шт.

Выбрано товаров: 77
