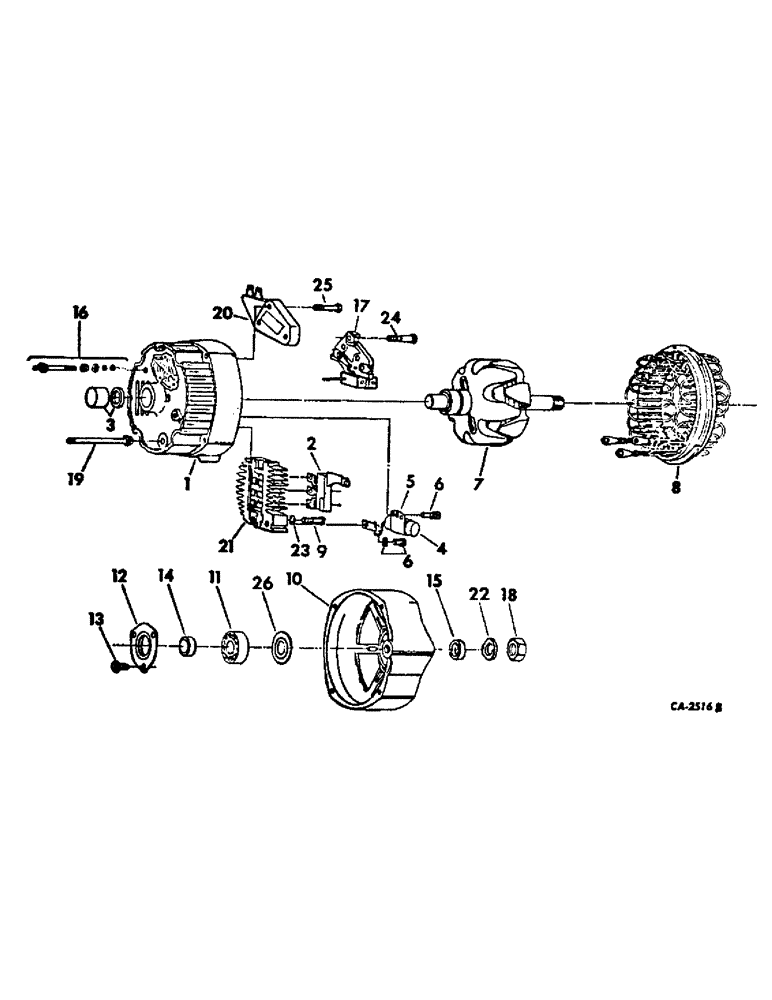

Запчасти Case IH 4166 (08-11) - ELECTRICAL, ALTERNATOR GENERATOR (06) - ELECTRICAL

1100587

ALTERNATOR

GENERATOR, alternator, Delco Remy, Order 1103160

1шт.

1102375

ALTERNATOR

GENERATOR, alternator, Delco Remy, Order 1103160

1шт.

87297246

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 61 Amp Alternator

1шт.

1

1852101

FRAME

FRAME, slip ring end, Serial Range: -1 1 103798A1R REMAN

1шт.

2

1971528

RECTIFIER

DIODE TRIO, negative

1шт.

3

423649C91

BALL BEARING

BEARING, slip ring end

1шт.

4

801824

CAPACITOR

CAPACITOR

1шт.

5

1869573

BRACKET

BRACKET, capacitor

1шт.

6

1851612

SCREW

SCREW, capacitor bracket

2шт.

7

1891598

ROTOR

ROTOR ASSY, Replaces 1876470

1шт.

8

1851572

STATOR

STATOR ASSY

1шт.

9

1970145

SCREW

SCREW, rectifier bridge attaching

1шт.

10

1976135

FRAME, drive end w/collar, Replaces 1970525

1шт.

11

539103R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, drive end ball

1шт.

12

1971933

PLATE, drive end ball bearing retainer

1шт.

13

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW, retainer plate attaching

3шт.

14

1963139

COLLAR CLAMP

COLLAR, inside drive end

1шт.

15

A49733

COLLAR

COLLAR, outside drive end, Use w/frame 1976135

1шт.

15

1959991

COLLAR

COLLAR, outside drive end, Use w/frame 1970525

1шт.

16

1846900

PACKAGE

TERMINAL PACKAGE, battery

1шт.

17

1876873

HOLDER

BRUSH HOLDER & BRUSH ASSY

1шт.

18

1915172

NUT

NUT, drive end shaft

1шт.

19

1965975

BOLT, thru

4шт.

20

1116387

VOLTAGE REGULATOR

REGULATOR, voltage, solid state

1шт.

21

1875627

HOLDER

BRIDGE, positive rectifier

1шт.

22

1941978

WASHER

WASHER, drive end shaft nut lock

1шт.

23

1847933

WASHER

WASHER, rectifier bridge attaching screw spring

3шт.

24

1846864

SCREW

SCREW, insulated brush holder

2шт.

25

1971519

SCREW

SCREW, regulator attaching

1шт.

26

800832

WASHER

NOT USED

1шт.

1851714

KIT

PACKAGE, relay terminal

1шт.
