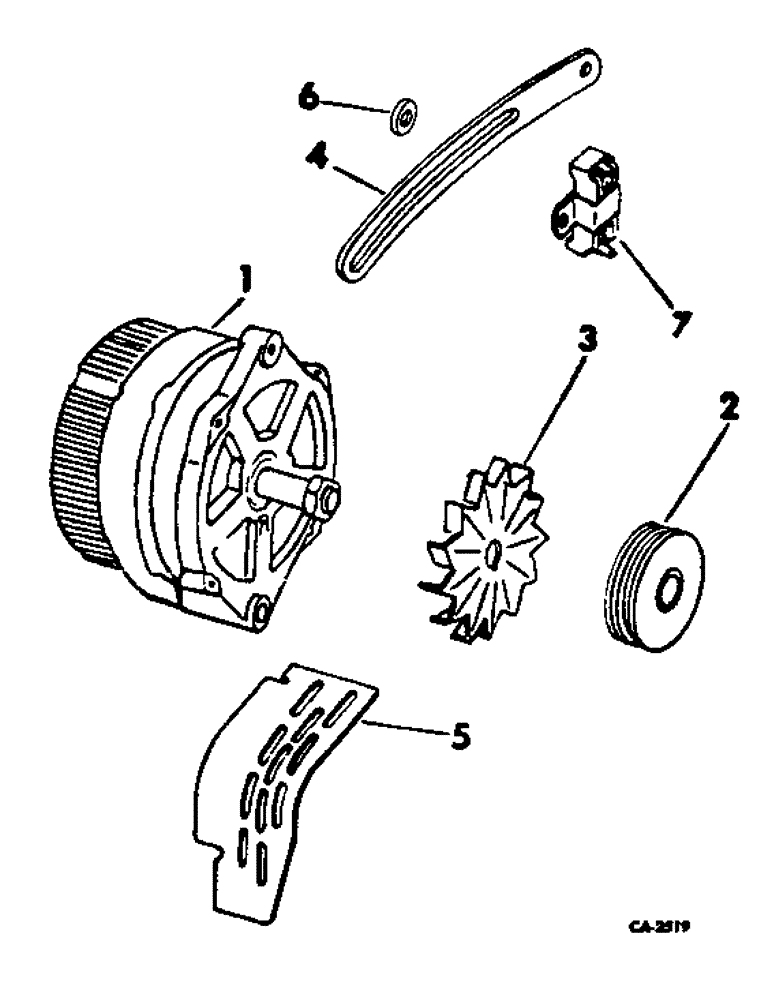

Запчасти Case IH 4166 (08-10) - ELECTRICAL, ALTERNATOR GENERATOR AND CONNECTIONS (06) - ELECTRICAL

1

1100587

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 548237R91, Order 1102922, For 4166 tractors, For components see list of parts under details of alternator generator listing, this group

1шт.

1

1100587

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 548237R91, Order 1102922, For 4186 tractors, For components see list of parts under details of alternator generator listing, this group, Serial Range: -18952

1шт.

1

1103160

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 121918C91, For 4186 tractors, Replaces 1102922, For components see list of parts under details of alternator generator listing, this group, Start Serial: 18953

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 72 ampere

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

87297246

REMAN-ALTERNATOR

Reman for New PN 1103160

1шт.

1

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 61 Amp Alternator

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex mach screw

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

2

384645R1

PULLEY

PULLEY, alternator-generator

1шт.

3

221425R1

FAN

FAN, alternator-generator

1шт.

4

532418R1

BRACE

BRACE, alternator-generator

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

537326R1

BOLT

SCREW, 5/16-18 x 1-1/2 znd hex-hd cap

1шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 distorted thd lock

1шт.

5

71197C91

STRIPPER PACKAGE

PACKAGE, alternator shield, 4166 tractors only, Consists of

1шт.

537265R1

SCREW

1шт.

557265R1

WASHER

WASHER

2шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT

1шт.

6

557265R1

WASHER

SPACER, alternator-generator brace

1шт.

7

107561C1

RESISTOR

RESISTOR, 3 ohm, Replaces 107434C1

1шт.

*

SHIELD (NSS)

1шт.
