Запчасти Case IH 4166 (08-02) - ELECTRICAL, STARTING AND LIGHTING, 4166 TRACTORS (06) - ELECTRICAL

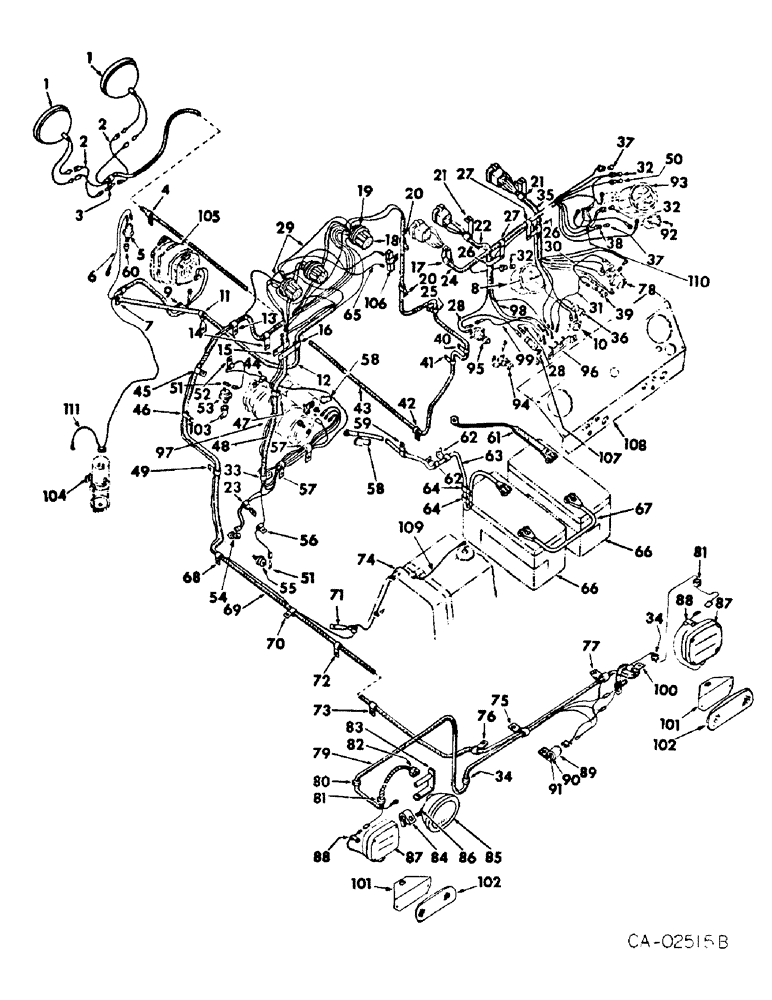

Схема запчастей Case IH 4166 - (08-02) - ELECTRICAL, STARTING AND LIGHTING, 4166 TRACTORS (06) - ELECTRICAL
77
37
81
88
31
23
21
93
9
58
79
49
8
16
1
87
83
56
70
33
66
94
87
64
57
85
108
34
69
55
54
76
53
51
62
96
59
62
74
12
32
60
26
101
43
95
103
78
28
10
46
27
111
64
72
66
23
110
5
20
35
41
13
102
86
2
82
89
15
21
7
27
52
100
36
65
90
71
14
29
91
1
109
51
37
32
106
73
88
61
57
6
24
105
92
47
28
38
97
4
58
101
38
30
22
75
63
3
107
11
104
40
34
67
26
19
32
39
80
99
102
81
42
50
48
84
2
18
17
20
45

Артикул

Название

Примечание

Количество

1

387730R91

LIGHT

ASSY, sealed beam head shock mounted, Only serviceable items are sealed beam unit, 373662R91 and rubber retainer, 676078R1

2шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

head light housing mounting

6шт.

2

405209R1

CABLE

ASSY, head, Serial Range: light-ground

2шт.

3

362121R1

CLIP

head light harness, on front bolster

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

383622R1

CLIP

head light harness, on upper hole 3rd from front RH side channel

1шт.

102639

NUT,5/8"-11, G5

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

1шт.

5

70314C1

SWITCH

ASSY, electric air cleaner vacuum

1шт.

6

539087R1

CABLE ASSY, electric air cleaner vacuum, Serial Range: switch-ground

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

7

362126R1

CLIP

alternator generator harness, on air cleaner hose support

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .095

1шт.

306132C1

CABLE TIE,14.5" L

STRAP, alt-gen cable harness tie

1шт.

8

GAUGE ASSY, speedometer, tachometer, Refer to instrument & switch panels & gauges listing, group 11

1шт.

9

399657R1

CLIP

alternator generator harness, on right hand front top engine plate mtg bolt

1шт.

10

SWITCH ASSY, ether injection solenoid control, Refer to switches, cigarette lighter & fuse lighting, this group

1шт.

11

363660R1

CLIP

alternator generator harness, on air cleaner end cover center RH bolt

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

12

539181R1

HARNESS ASSY, alternator generator

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

13

384559R1

CLIP

rear light harness, on air cleaner top mounting bolt

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

14

362123R1

CLIP

rear light harness, on air cleaner upper RH mounting bolt

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

15

362123R1

CLIP

main harness, on air cleaner upper RH mounting bolt

2шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

16

383622R1

CLIP

alternator generator harness, on air cleaner upper RH mounting bolt

1шт.

17

362126R1

CLIP

instrument panel harness, on steering support bracket mounting bolt

2шт.

18

390532R1

CONNECTOR, bulkhead, 8 contact

2шт.

19

390533R1

GROMMET, bulkhead connector

3шт.

20

370535R1

CLIP

head light harness, on upper and lower RH holes in heat baffle

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

For mtg refs. 20 & 106 Hex, 1/4"-20 x 1", G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

21

362126R1

CLIP

switch panel harness, on steering support bracket mounting bolt

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

22

405255R1

HARNESS ASSY, switch panel cable

1шт.

23

363660R1

CLIP

safety switch cables, on park brake pedal lower bracket top front bolt

1шт.

24

405254R1

HARNESS ASSY, instrument panel cable

1шт.

25

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light harness, on brake valve upper front mounting bolt

1шт.

26

384559R1

CLIP

switch panel harness, on steering support cover upper mounting bolt

2шт.

27

362123R1

CLIP

instrument panel harness, on steering support cover upper mounting bolts

2шт.

28

405230R1

CABLE ASSY, key switch

2шт.

29

405232R1

CABLE ASSY, instrument light junction

1шт.

30

404398R1

CABLE ASSY.

CABLE ASSY, fuse housing to lighting cable

1шт.

31

404397R1

CABLE

ASSY, fuse housing to junction block

1шт.

32

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12-volt, speedometer, tachometer and gage cluster instrument light

3шт.

33

363117R1

CLIP

main harness, on pedal cover

1шт.

34

376359R1

GROMMET

rubber rear light harness, in rear LH fender brace

1шт.

35

405256R1

HARNESS ASSY, lighting switch cable

1шт.

36

LIGHTER ASSY, cigarette, refer to switches, cigarette lighter & fuse listing, this group

1шт.

37

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12-volt, oil & amp tellite flasher

2шт.

38

107595C91

LAMP

LIGHT ASSY, transmission oil pressure, Only serviceable items are lamp 24929R1 and lens, 71652C1

1шт.

39

HOUSING ASSY, fuse, refer to switches, cigarette lighter & fuse listing, this group

1шт.

40

384559R1

CLIP

head light harness, on brake valve bracket lower rear mounting bolt

1шт.

41

384559R1

CLIP

head light harness, on fender bracket lower mounting bolt

1шт.

42

69132C1

CLIP, head light harness, on steering support lower front mounting bolt

1шт.

43

405257R1

HARNESS ASSY, head light cable

1шт.

44

370819R1

CLIP, engine oil pressure switch cable twisted, on cranking motor top mounting bolt

1шт.

45

69132C1

CLIP, rear light harness, on air cleaner upper LH mounting bolt

1шт.

46

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light harness, on top fender front mounting bolt

1шт.

47

362123R1

CLIP

main harness, on air cleaner lower RH mounting bolt

1шт.

48

527317R1

HARNESS ASSY, main cable

1шт.

49

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light harness, on fender bracket lower mounting bolt

1шт.

50

24929R1

BULB,C2R, #256, 14V

LAMP, no. 256, 12-volt, transmission tellite flasher

1шт.

50

27269R1

BULB,C6, #1416, 12.8V

LAMP, no. 1416, 12-volt, amp tellite non-flasher

1шт.

51

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch

2шт.

52

362127R1

CLIP

engine oil pressure switch cable, on rear face of crankcase RH mounting hole

1шт.

53

392249R92

SWITCH

engine oil pressure

1шт.

127960

ELBOW

1/8 x 90 deg street

1шт.

54

121629C1

IGNITION SWITCH

SWITCH, neutral starting, Replaces 532682R1

1шт.

55

395112R1

SWITCH

ASSY, transmission oil pressure

1шт.

56

384554R1

CLIP

transmission oil pressure switch cable, on park brake pedal lower bracket front mounting bolt

1шт.

57

363117R1

CLIP

main harness, on pedal cover

2шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

58

364910R1

BOOT

COVER, battery terminal

2шт.

59

362123R1

CLIP

battery to solenoid switch cable, on clutch housing cover rear boss

1шт.

321872R1

SCREW

3/8-16 x 3/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

60

389908R91

ADAPTER

ADAPTOR ASSY, vacuum switch

1шт.

61

936534R91

CABLE

ASSY, Serial Range: battery-ground

1шт.

120512HX

BOLT AND NUT,Sq Hd, 5/16" - 18 x 1 3/8", W/Hex Nut

BOLT ASSY, battery cable, Replaces 356062R91

1шт.

62

370383R1

CLIP

battery to solenoid switch cable, on platform front support

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

63

527319R1

CABLE

ASSY, battery to solenoid switch

1шт.

120512HX

BOLT AND NUT,Sq Hd, 5/16" - 18 x 1 3/8", W/Hex Nut

BOLT ASSY, battery cable, Replaces 356062R91

1шт.

64

358986R1

CABLE CLIP

CLIP, battery to solenoid switch cable, on battery plate support upper and lower mounting bolts

2шт.

65

539182R1

CABLE ASSY, key switch junction

1шт.

66

BATTERY, Refer to battery, battery plate and supports listing, this group

1шт.

67

394752R92

CABLE ASSY, Serial Range: battery-battery

1шт.

120512HX

BOLT AND NUT,Sq Hd, 5/16" - 18 x 1 3/8", W/Hex Nut

BOLT ASSY, battery cable, Replaces 356062R91

2шт.

68

358986R1

CABLE CLIP

CLIP, rear light harness, on steering support top rear side channel mtg bolt

1шт.

69

539324R2

HARNESS ASSY, rear light cable long

1шт.

70

69132C1

CLIP, rear light harness, on platform rear support mounting bolt

1шт.

71

370819R1

CLIP, fuel gauge cable, on console rear mounting bolt

1шт.

72

383622R1

CLIP

rear light harness, on fender rear side plate top mounting bolt

1шт.

73

358986R1

CABLE CLIP

CLIP, rear light harness, on fender rear side plate 1st from front top mounting bolt, Not used on tractors w/3-pt hitch

1шт.

74

405231R2

CABLE ASSY, fuel gage sending unit connector

1шт.

145510

FUSE,1 Amp, Type 3AG

cartridge type agc-1

1шт.

75

383622R1

CLIP

rear light harness, on junction block support bracket, LH mounting bolt

1шт.

76

362126R1

CLIP

rear light harness, on junction block support bracket, LH mounting bolt

1шт.

77

383622R1

CLIP

rear light harness, on junction block support bracket, RH mounting bolt

1шт.

78

SWITCH ASSY, lighting, Refer to switches, cigarette lighter & fuse listing, this group

1шт.

79

539088R1

HARNESS ASSY, rear combination & flashing lights

1шт.

80

52118D

GROMMET

rubber, in rear top LH fender

1шт.

81

24179D

GROMMET,5/8" ID x 7/8" Groove Dia

rubber, in rear fender side plates

2шт.

82

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear plate

1шт.

83

390310R11

SUPPORT

ASSY, rear light

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

84

350920R1

CLAMP

rear light

1шт.

85

387729R92

LIGHT ASSY.

LIGHT ASSY, combination rear shock mounted, Only serviceable items are lamp, 455490, unit, 371461R91 and retainer, 676078R1

1шт.

102637

NUT,1/2"-13, G5

1шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

1шт.

86

365503R1

SPACER

rear light

1шт.

87

67538C92

HEADLIGHT

LIGHT ASSY, flashing warning, Only serviceable item is lamp, 9417866

2шт.

394262R1

WASHER

GASKET, flashing warning light

2шт.

120371

NUT,1/2"-20, G5

2шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext tooth lock

2шт.

88

358986R1

CABLE CLIP

CLIP, flasher light cable, on warning light stud

2шт.

89

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

90

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

91

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

92

INDICATOR ASSY, air cleaner, Refer to instrument & switch panels & gauges listing, group 11

1шт.

93

GAUGE ASSY, cluster, Refer to instrument & switch panels & gauges listing, group 11

1шт.

94

SWITCH ASSY, horn, Refer to switches, cigarette lighter & fuse listing, this group

1шт.

95

SWITCH ASSY, push button, Refer to switches, cigarette lighter & fuse listing, this group

1шт.

96

378336R91

BLOCK

junction

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 C-Z slt pan-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

97

MOTOR ASSY, cranking, Refer to cranking motor listing, this group

1шт.

98

405237R1

CABLE ASSY, ether injection solenoid control switch to junction block

1шт.

99

404391R1

CABLE

ASSY, push button switch to junction block

1шт.

100

358986R1

CABLE CLIP

CLIP, rear lamp harness, on RH valve assy rear mounting bolt

1шт.

101

533091R1

BRACKET, reflector mtg

2шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt pan-hd

2шт.

619855R1

WASHER

11/32 x 3/4 x .060 C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

102

533092R1

REFLECTOR

red rear

2шт.

163162

SCREW,Self Tap, Cross Pan Hd, #8 - 18 x 1/2"

8-18 x 1/2 cd cr-rec-pan-hd tap

4шт.

103

127960

ELBOW

1/8 pipe 90 deg street

1шт.

104

SOLENOID ASSY, ether starting, Refer to ether starting listing, group 12

1шт.

105

ALTERNATOR GENERATOR ASSY, Refer to alternator generator listing, this group

1шт.

106

RESISTOR UNIT, Refer to alternator generator and connecting listing, this group

1шт.

107

SWITCH ASSY, ignition, Refer to switches, cigarette lighter & fuse listing, this group

1шт.

108

PANEL ASSY, instrument, Refer to instrument & switch panels & gauges listing, group 11

1шт.

109

69363C1

CABLE ASSY, electric fuel gauge sending unit ground

1шт.

365501R1

TERMINAL CONNECTOR

TERMINAL, ground cable angle

1шт.

110

121626C1

CABLE ASSY.

CABLE ASSY, oil temperature warning light

1шт.

111

405227R1

CABLE

ASSY, ether, Serial Range: solenoid-ground

1шт.

Выбрано товаров: 163
