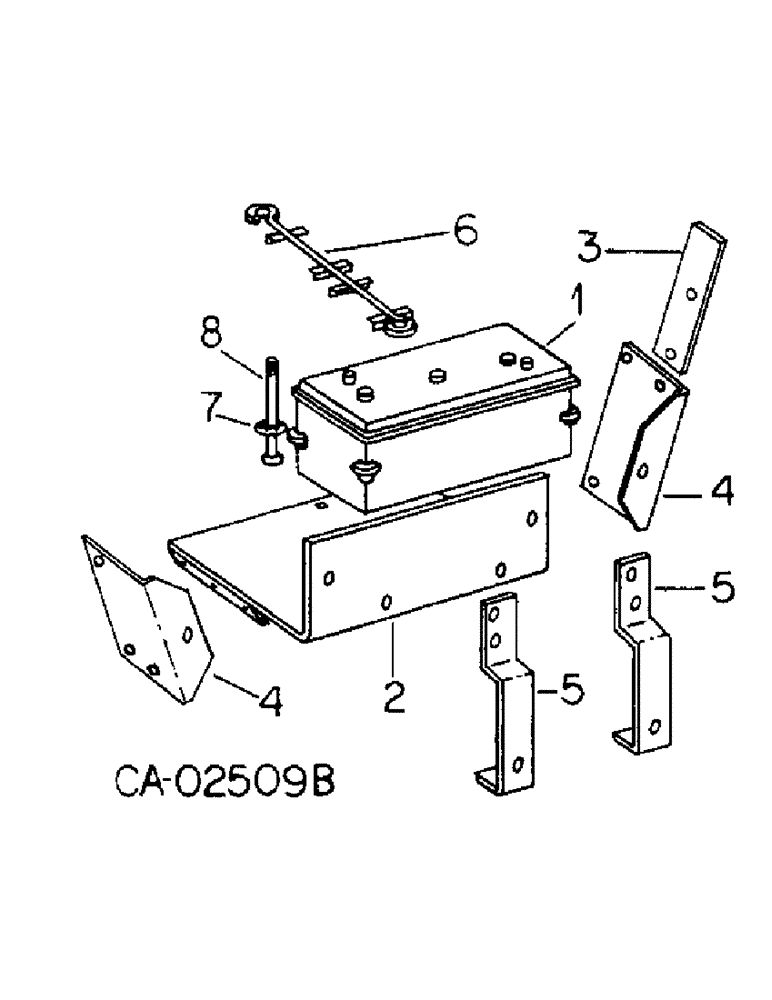

Запчасти Case IH 4166 (08-01) - ELECTRICAL, BATTERY, BATTERY PLATE AND SUPPORTS (06) - ELECTRICAL

1

IHPR4EH

BATTERY, DRY

BATTERY, 6 volt, 6 volt

2шт.

1

IHMF24PF

DRY BATTERY

wet charged, 12 volt maintenance free

2шт.

2

390490R21

PLATE ASSY, battery support

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

3

390788R1

STRIP, battery box dust guard

1шт.

4

390489R1

SHEET, battery boxy front

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

5

390426R1

SUPPORT, battery box

2шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

4шт.

102637

NUT,1/2"-13, G5

4шт.

6

67855C1

BRACKET ASSY, battery hold down, Use w/399056R1 battery

1шт.

6

120643C1

BRACKET ASSY, battery hold down, Use w/121766C1 battery

1шт.

7

67854C1

FASTENER, spring clip

2шт.

8

15400R1

BOLT, 5/16-18 x 10 sq-nk crg, Use w/399056R1 battery

2шт.

8

19389R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9", Gr 2

BOLT, 5/16-18 x 9 sq-nc crg, Use w/121766C1 battery

2шт.

Q398

WASHER

11/32 x 7/8 x .060

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

2шт.

67856C1

PACKAGE, battery hold down, 4166 tractors, Consists of, Serial Range: -11112

1шт.

67855C1

BRACKET

1шт.

15400R1

BOLTS

2шт.

129-419

WING NUT,5/16"-18

NUTS

2шт.

67854C1

FASTENER

2шт.

Q398

WASHER

2шт.

INSTRUCTION (NSS), installing

1шт.
