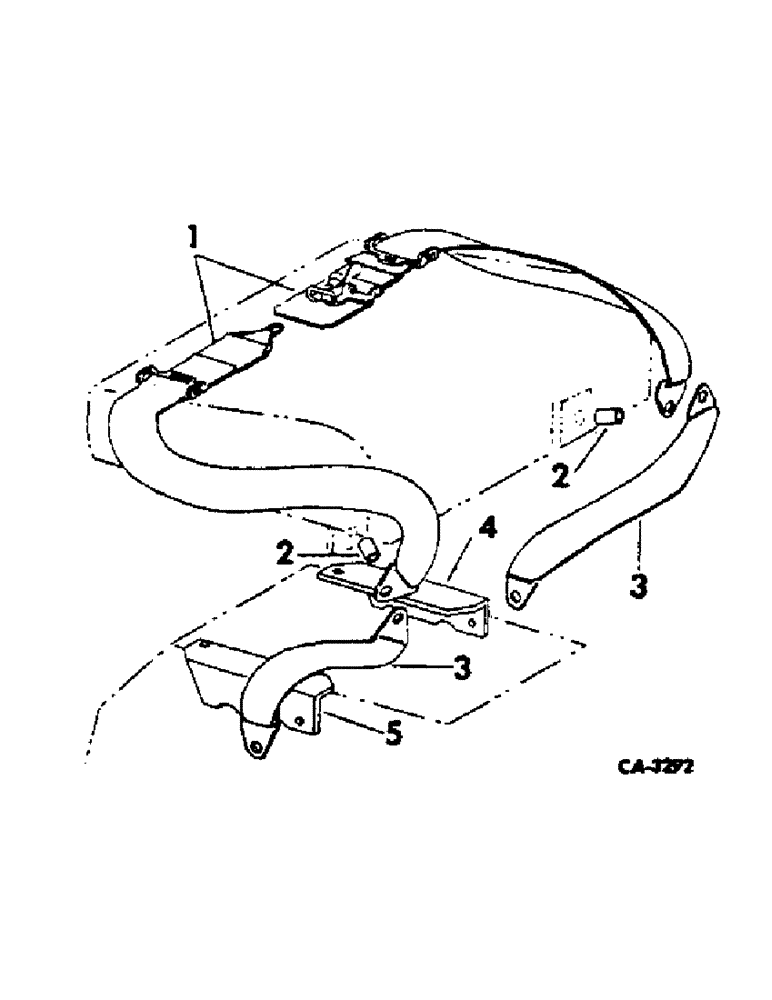

Запчасти Case IH 4166 (13-22) - SUPERSTRUCTURE, SEAT BELTS (05) - SUPERSTRUCTURE

71233C91

PARTS ACCESSORY, seat belt, 2 inch, Consists of seat belt, 71236C1

1шт.

70885C91

PARTS ACCESSORY, seat belt, 3 inch, Consists of

1шт.

702248C3

BELT

SAFETY BELT

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW

2шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT

2шт.

404911C1

BOLT

2шт.

344096C3

BOLT

BOLT

2шт.

24513R1

NUT,7/16"-20, G8

2шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

23043R1

WASHER

2шт.

1

537339R1

SAFETY BELT

SAFETY BELT, 2"

1шт.

413-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 znd hex-hd cap

2шт.

1

702248C3

BELT

SAFETY BELT, 3"

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 znd hex-hd cap

2шт.

9413866

NUT, 7/16-14 prevailing torque

2шт.

404911C1

BOLT

7/16-20 x 7/8 seat belt anchor

2шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

23043R1

WASHER

15/32 x 2 x 11 ga znd

2шт.

344096C3

BOLT

BOLT, 7/16-20 x 1 seat belt anchor

2шт.

24513R1

NUT,7/16"-20, G8

7/16-20 znd type 8 hex

2шт.

1

71236C1

SAFETY BELT

SAFETY BELT, 2", Part of Parts Accessory, 71233C91

1шт.

2

401077R1

BUSHING

SPACER, belt mounting

2шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 prevailing torque

4шт.

3

67677C1

BELT

seat retaining

2шт.

180143

SCREW,Hex, 7/16" - 14 x 3/4"

7/16-14 x 3/4 znd hex-hd cap

2шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 prevailing torque

2шт.

4

NOT USED IN THIS APPLICATION

1шт.

5

NOT USED IN THIS APPLICATION

1шт.
