Запчасти Case IH 4166 (13-19) - SUPERSTRUCTURE, CAB GLASS AND DOORS (05) - SUPERSTRUCTURE

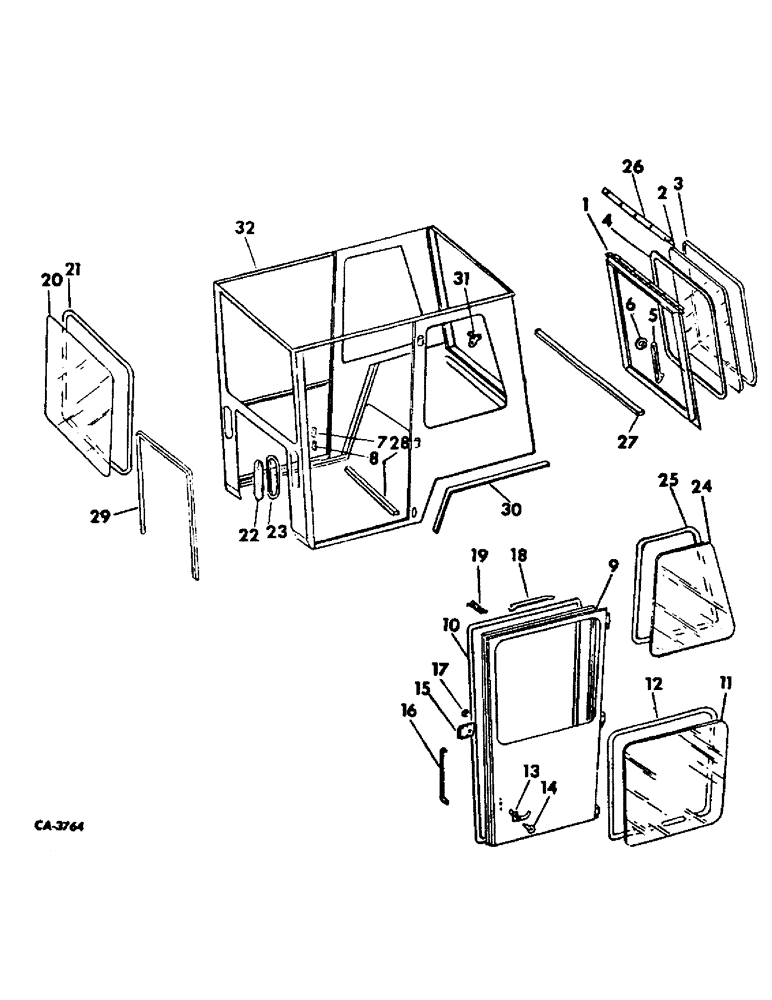

Схема запчастей Case IH 4166 - (13-19) - SUPERSTRUCTURE, CAB GLASS AND DOORS (05) - SUPERSTRUCTURE

Артикул

Название

Примечание

Количество

1

66426C1

FRAME ASSY, rear window

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

6шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x.051 znd

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

2

66427C1

GLASS, rear window

1шт.

3

SEAL, rear window glass, Furnish 128 in. from a 50 ft. bulk roll marked, 64515C1

1шт.

4

66429C1

SEAL, weather, 148 in.

1шт.

5

66430C1

ARM, window adjuster

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

6

66468C1

KNOB, rear window adjuster

2шт.

477242R1

WASHER

13/32 x 1 x .030 znd

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

7

533512R1

LARGE PLATE

PLATE, striker

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 znd slt-pan-hd

4шт.

121637

LOCK WASHER

WASHER, 1/4 znd lt lock

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

8

533513R1

SHIM, striker plate, Use 1 or 2 as required

1шт.

9

66431C91

DOOR ASSY, LH cab

2шт.

9

66432C91

DOOR ASSY.

DOOR ASSY, RH cab

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 znd hex-hd cap

12шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z flat

12шт.

121637

LOCK WASHER

WASHER, 1/4 znd lt lock

12шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

12шт.

10

66433C1

DOOR SEAL

door weather

2шт.

11

66434C1

GLASS, door

2шт.

12

SEAL, door glass, Furnish 94 in. from a 50 ft. bulk roll marked, 64515C1

1шт.

13

1213118C1

HANDLE

W/KEY, outside

2шт.

179355

SCREW, 10-24 x 3/4 cr-rec-ov-hd

4шт.

14

533857R1

KEY, door

2шт.

15

533524R2

LATCH

inside door RH

1шт.

15

533525R2

LATCH

inside door LH

1шт.

436733

BOLT

SCREW, 10-24 x 5/8 znd slt-pan-hd mach

8шт.

131183

WASHER, no. 10 zn lt lock

8шт.

16

533508R1

ADJUSTER, door

2шт.

17

533509R1

GROMMET

plastic

4шт.

18

537464R1

DOOR

CHECK, LH door

1шт.

18

537465R1

DOOR

CHECK, RH door

1шт.

537467R1

BOLT (SPREADER),Shoulder, 5/16" - 18

BOLT, 5/16-18 shoulder

4шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16-18 zn nylon insert lock

4шт.

19

537466R1

SPRING

door check

2шт.

20

66436C1

GLASS, windshield

1шт.

21

SEAL, windshield glass, Furnish 122 in. from a 50 ft. bulk roll marked, 64515C1

1шт.

22

66438C1

GLASS, lower front

2шт.

23

SEAL, lower front glass, Furnish 34 in. from a 50 ft. bulk roll marked, 64515C1

2шт.

24

66439C1

GLASS, side rear

2шт.

25

SEAL, side rear glass, Furnish 96.38 in. from a 50 ft. bulk roll marked, 64515C1

2шт.

26

66450C1

SHIELD, rear window rain

1шт.

27

66771C1

SEAL, rear

1шт.

28

66772C1

SEAL, lower rear tube

2шт.

29

66773C1

SEAL, cowl

1шт.

30

66780C1

SEAL, rear cutout

2шт.

31

397000R1

HOOK, coat

1шт.

23981R1

SCREW, 10-16 x 5/8 C-Z flt-hd cr tap

2шт.

32

CAB, Refer to tractor cab and connections

1шт.

Выбрано товаров: 56
