Запчасти Case IH 4166 (13-16) - SUPERSTRUCTURE, CAB CONDENSOR AND CONNECTIONS (05) - SUPERSTRUCTURE

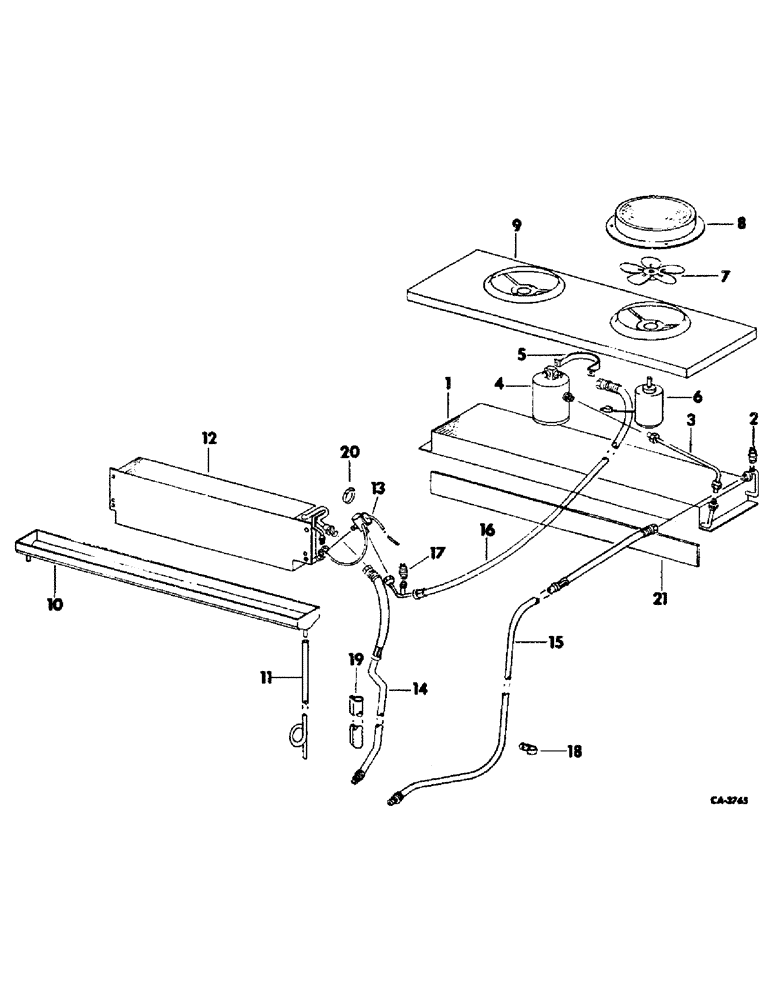

Схема запчастей Case IH 4166 - (13-16) - SUPERSTRUCTURE, CAB CONDENSOR AND CONNECTIONS (05) - SUPERSTRUCTURE
6
20
3
17
14
19
5
15
9
11
21
18
2
7
13
4
1
8
16
12
10

Артикул

Название

Примечание

Количество

1

66409C1

CORE, connector

1шт.

20917R1

SCREW

no. 10 x 5/8 znd slt-pan-hd

4шт.

2

SWITCH, high pressure, Refer to cab wiring and connections

1шт.

3

66388C1

TUBE ASSY, condenser to rec dryer 0.375" OD, 15.86, 2.7" Length

1шт.

4

539049R1

TANK

RECEIVER, dehydrator

1шт.

5

66389C1

CLAMP

receiver-dehydrator

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

66390C1

MOTOR

condeser fan

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

131183

WASHER, no. 10 znd lt lock

4шт.

7

539048R1

FIN

FAN, condenser

2шт.

20683R1

SCREW, 10-32 x 1/4 blo headless hex-soc-cup-pt set

2шт.

8

66412C1

GRILL ASSY, fan

2шт.

20917R1

SCREW

no. 10 x 5/8 znd slt-pan-hd tap

8шт.

9

66411C1

COVER ASSY, condenser

1шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 znd hex-hd cap

14шт.

121637

LOCK WASHER

WASHER, 1/4 znd lt lock

14шт.

10

66395C1

TRAY ASSY, evaporator

1шт.

11

66396C1

TUBE, evaporator drain 0.5" ID, 0.68" OD, 82" Length

2шт.

12

66394C1

CORE ASSY, heater and a/c

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

13

66398C1

VALVE

expansion

1шт.

14

66399C1

HOSE ASSY.

HOSE ASSY, suction tube

1шт.

15

66401C1

HOSE ASSY.

HOSE ASSY, discharge

1шт.

16

66402C1

HOSE ASSY.

HOSE ASSY, liquid line

1шт.

17

SWITCH, low pressure, Refer to cab wiring and connections

1шт.

18

66397C1

CLAMP, drain tube

2шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 C-Z hex-hd tap

2шт.

19

66400C1

COVER, tube

1шт.

20

39093H

HOSE CLAMP

CLAMP, hose

1шт.

21

66410C1

STRIP, condenser filler

2шт.

Выбрано товаров: 33
