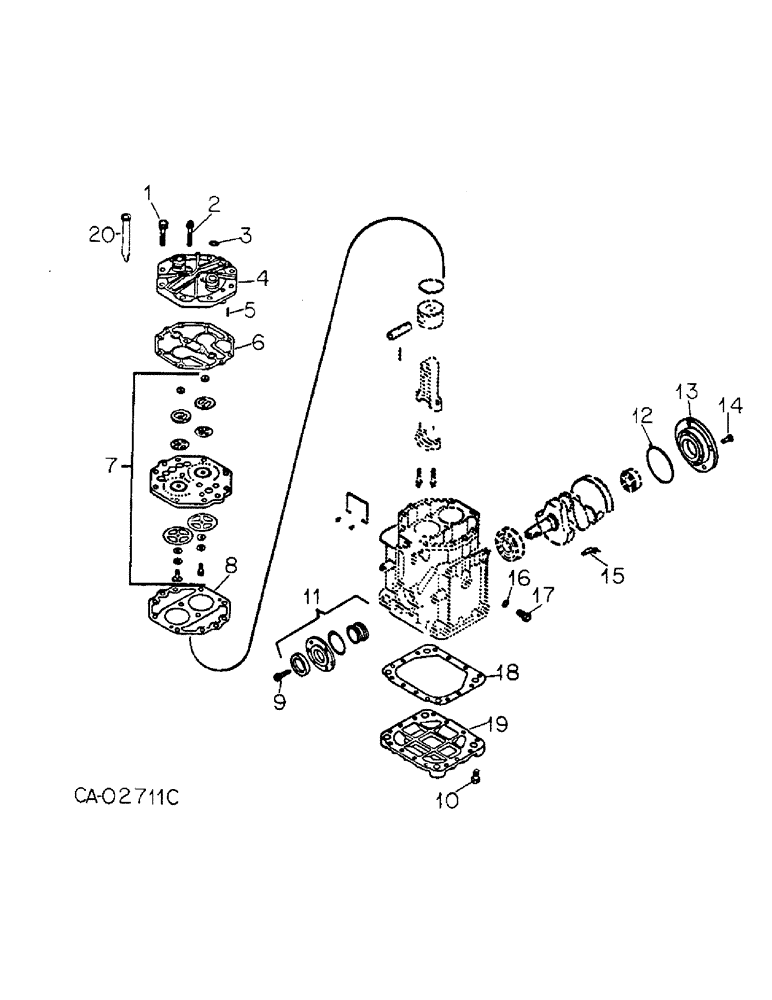

Запчасти Case IH 4166 (13-15) - SUPERSTRUCTURE, COMPRESSOR (05) - SUPERSTRUCTURE

417888C92

COMPRESSOR

COMPRESSOR ASSY, air conditioner

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Reman For New PN 417888C92

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

118250C92

AIR COMPRESSOR

Compressor, A/C

1шт.

1924006C2

REMAN-A/C COMPRESSOR

Remanufacured Compressor Assy.

1шт.

1924007C1

CORE-A/C COMPRESSOR

Return Number, Compressor Assy.

1шт.

1

20641R1

SCREW

SCREW, 5/16 x 1-3/8

8шт.

2

374805R1

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

SCREW, 5/16 x 1-17/32 12 pt-hd

2шт.

3

431762C1

GASKET

GASKET, service valve

2шт.

4

431758C1

HEAD

HEAD, cylinder

1шт.

5

21274R1

SPARE PART PIN, dowel 1/8

2шт.

6

431756C1

CYLINDER HEAD GASKET

GASKET, head

1шт.

7

431759C1

PLATE

PLATE W/VALVES, compressor

1шт.

8

431761C1

CYLINDER HEAD GASKET

GASKET, valve plate

1шт.

9

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

BOLT, no. 10-24 x 15/32 hex-hd,Course threads

6шт.

10

21024R1

SCREW

BOLT, 1/4 x 11/16 hex-hd

14шт.

11

428606C91

SEAL

KIT, shaft seal front

1шт.

12

431763C1

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

SEAL, o-ring

1шт.

13

431757C1

HOUSING

HOUSING, rear bearing

1шт.

14

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

SCREW, Slotted Flat Hd, 1/4"-20 x 5/8"

4шт.

15

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, #6, 5/32" x 5/8", HT

1шт.

16

431764C1

SEAL,8.484mm ID x 1.778mm Width

SEAL, o-ring oil fill

1шт.

17

86982693

PLUG

PLUG, fill 3/8 NF x 1/2

1шт.

18

431760C2

GASKET

GASKET, base

1шт.

19

431755C1

PLATE

SPARE PART PLATE, base

1шт.

20

NOT USED IN THIS APPLICATION

1шт.
