Запчасти Case IH 4166 (13-11) - SUPERSTRUCTURE, HEATER AND CONNECTIONS (05) - SUPERSTRUCTURE

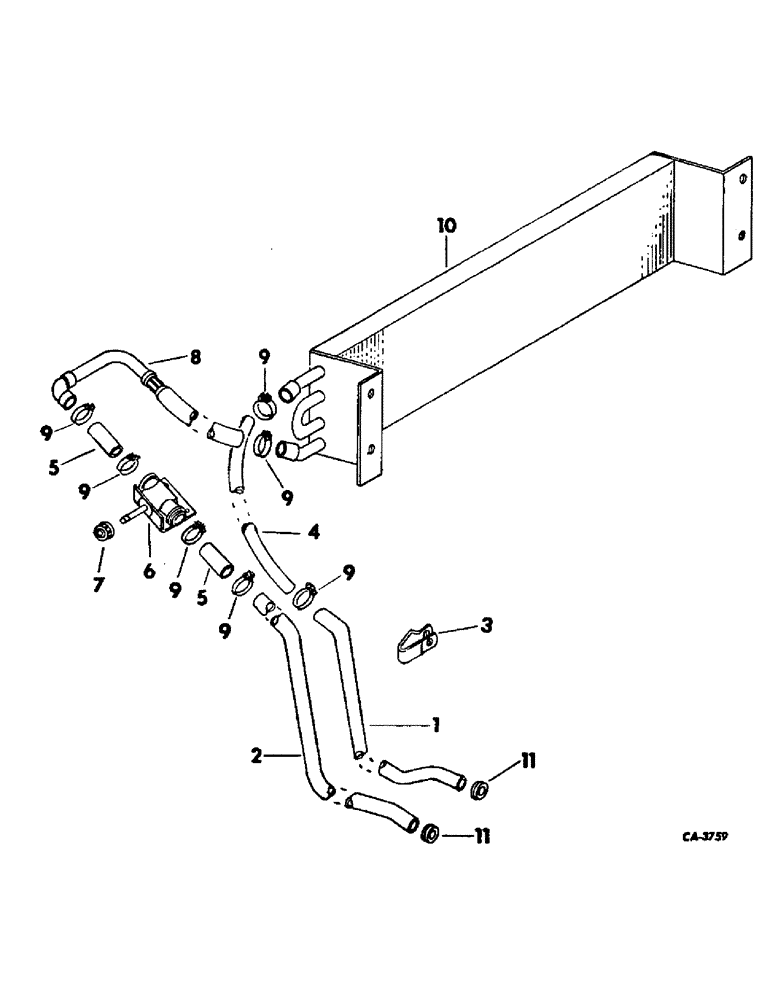

Схема запчастей Case IH 4166 - (13-11) - SUPERSTRUCTURE, HEATER AND CONNECTIONS (05) - SUPERSTRUCTURE
1
7
9
9
4
5
9
9
11
2
9
11
5
3
9
10
8
6
9

Артикул

Название

Примечание

Количество

1

66405C1

TUBE

heater, suction

1шт.

2

66404C1

TUBE, heater, pressure

1шт.

3

66406C1

CLAMP, heater tube

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

HOSE, heater, 11 in. long, Use 11 in. of 5/8 ID heater hose from a bulk roll marked, 117724C1

1шт.

5

HOSE, heater, 2 in. long, Use 2 in. of 5/8 ID heater hose from a bulk roll marked, 117724C1

2шт.

6

539020R1

VALVE

heater control

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

7

539024R1

KNOB

heater control valve

1шт.

8

66403C1

TUBE ASSY, inlet

1шт.

9

39093H

HOSE CLAMP

CLAMP, hose

7шт.

10

539021R1

CORE ASSY, heater, cab w/heater only

1шт.

10

66394C1

CORE ASSY, heater and a/c, cab w/heater and a/c

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

11

66407C1

GROMMET, heater tube

2шт.

23720R1

PLUG, button C-Z, cabs w/heating only

1шт.

187849

HOLE PLUG BUTTON,1 1/8"

PLUG, button C-Z, cabs w/heating only

1шт.

66413C1

PRODUCT GRAPHIC, fresh air

1шт.

66414C1

PRODUCT GRAPHIC, fresh air & air conditioner

1шт.

445704

RING

SCREW, 10-24 x 5/8 zn slt-truss-hd

2шт.

174097

NUT, 10-24 zn whiz-lock

2шт.

Выбрано товаров: 24
