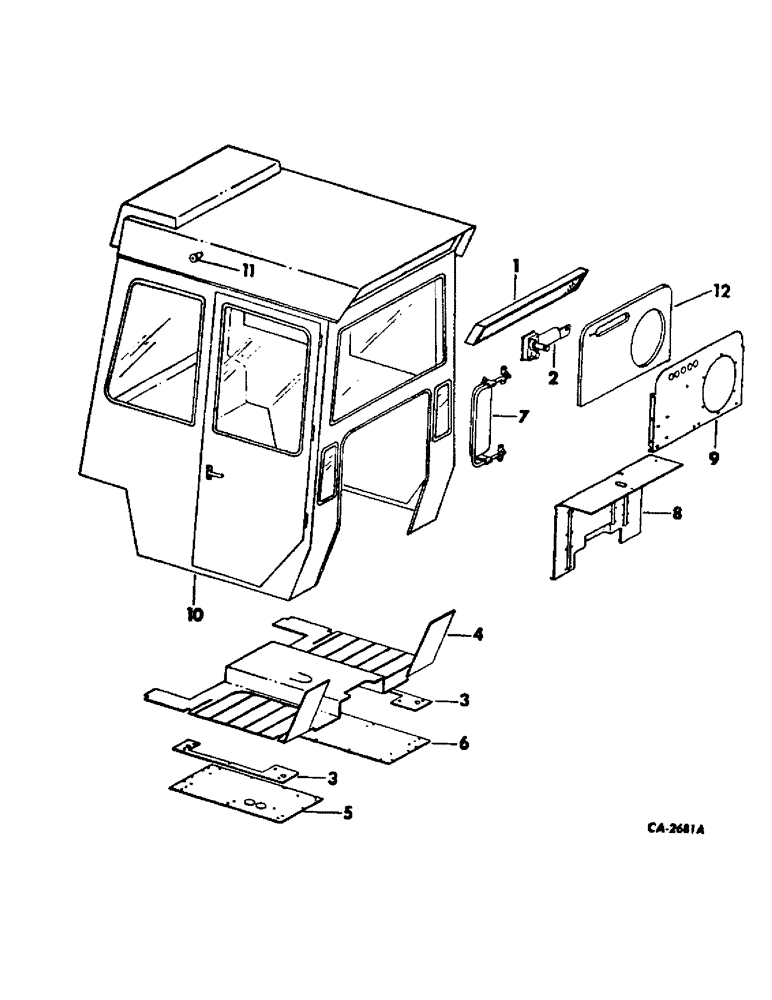

Запчасти Case IH 4166 (13-09) - SUPERSTRUCTURE, TRACTOR CAB AND CONNECTIONS (05) - SUPERSTRUCTURE

1

537268R2

FILTER

pressurizer

1шт.

2

391195R92

WIPER MOTOR

MOTOR ASSY, windshield wiper, For components see list of parts under details of windshield wiper motor listing, this section

1шт.

145193

BATTERY

10-16 x 1/2 C-Z slt-pan-hd tap

1шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 C-Z int-ext-tooth lock

1шт.

3

394390R1

PAD, mounting

2шт.

394391R1

BUSHING, mounting pad

10шт.

394393R1

WASHER, rubber belting

10шт.

4

539591R1

MAT, floor

1шт.

5

392812R11

PLATFORM ASSY, RH

1шт.

6

392811R11

PLATFORM ASSY, LH

1шт.

7

MIRROR ASSY, rear view, For components see list of parts under details of rear view mirror

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

8

539592R1

MAT, pedal cover and lower heat baffle

1шт.

9

390521R11

BAFFLE ASSY, upper heat

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

6шт.

10

539156R91

CAB ASSY, w/pressurizer & heater

1шт.

10

539157R91

CAB ASSY, w/pressurizer & heater & air conditioner, For list of serviceable parts see cab glass and doors

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 C-Z hex-hd cap

10шт.

17044R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cdp nylon insert

6шт.

178371R1

WASHER

13/32 x 1-1/8 x 11 ga G-Z

10шт.

11

538368R1

PLUG

cab lift eye

2шт.

111790H1

BOLT, cab lift eye

2шт.

12

539593R1

MAT, upper heat baffle

1шт.
