Запчасти Case IH 4166 (13-07) - SUPERSTRUCTURE, VERTICAL ACTING SEAT (05) - SUPERSTRUCTURE

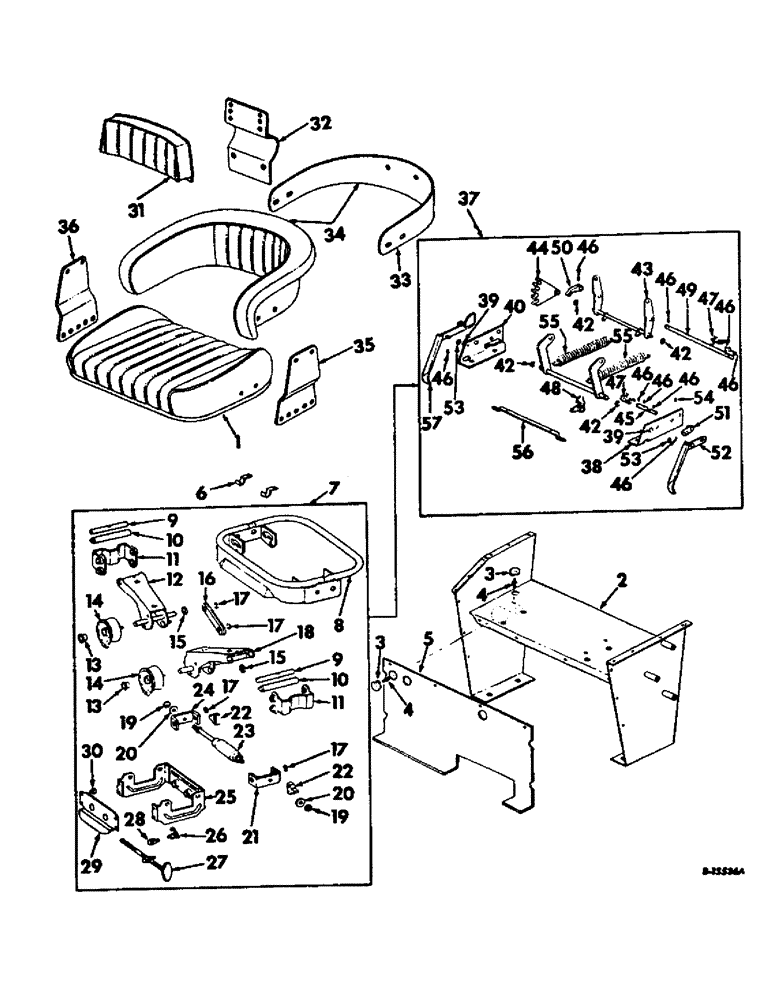

Схема запчастей Case IH 4166 - (13-07) - SUPERSTRUCTURE, VERTICAL ACTING SEAT (05) - SUPERSTRUCTURE
14
55
48
52
11
46
42
27
42
45
5
17
57
22
33
10
46
56
39
44
8
46
21
46
2
19
10
47
49
11
38
19
20
47
4
9
55
51
39
18
34
25
43
13
4
13
16
3
22
28
15
46
40
26
15
42
37
6
46
46
20
36
24
14
32
54
23
30
53
12
3
31
53
29
50
17
46
42
35
6
17
9
17

Артикул

Название

Примечание

Количество

1

400711R2

CUSHION ASSY.

CUSHION ASSY, seat

1шт.

2

392993R92

SUPPORT ASSY, console and seat

1шт.

3

192105

HOLE PLUG BUTTON,1"

PLUG, 1 in. button

4шт.

4

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

FITTING, 1/8-27 ptf str lub

2шт.

5

390473R1

COVER, seat support front

1шт.

102637

NUT,1/2"-13, G5

6шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap

6шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, #10 x 1/2"

6шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex washer hd tap

4шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

12шт.

6

379321R1

CLAMP,27.74mm ID, 8.71mm Bolt Hole, J Type

seat

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

379319R94

SUSPENSION

ASSY, vertical acting

1шт.

8

380724R3

FRAME

hanger

1шт.

9

380722R1

SHAFT

short link upper

2шт.

443039

PIN

1/4 x 1-1/4 type 3 groove

2шт.

10

380723R1

SHAFT

short link lower

2шт.

443148

GROOVED PIN,3/16" x 1", Type E

Pin, Grooved, 3/16" x 1", Type E

2шт.

11

380721R1

DRAG LINK

LINK, short

2шт.

12

380713R1

LEVER

LH spring

1шт.

13

193643R1

BUSHING,19.18mm ID x 25.4mm OD x 14.29mm L

BEARING, flanged

2шт.

14

380712R1

INSULATOR BLOCK

SPRING, rubber

2шт.

15

380718R1

WASHER

49/64 x 1-1/4 x 14 ga

2шт.

16

380717R1

LINK

stabilizer

1шт.

17

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

4шт.

18

380714R1

LEVER

RH spring

1шт.

19

SL716

WASHER

13/32 x 1-1/8 x 14 ga

2шт.

20

381239R1

RUBBER WASHER

rubber

2шт.

21

380715R1

YOKE

BRACKET, LH shock

1шт.

22

381238R1

BUMPER

rubber

2шт.

23

372751R91

SHOCK ABSORBER

ABSORBER, shock

1шт.

274635

PIN

NUT, 3/8-24 C-Z hex lock

2шт.

24

380716R1

YOKE

BRACKET, RH shock

1шт.

25

380711R2

HOUSING

spring

1шт.

26

380726R1

SPRING

INDICATOR, weight

1шт.

27

380725R91

STUD

ASSEMBLY, adjuster

1шт.

142488

GROOVED PIN,1/8" x 1", Type A

Pin, Grooved, 1/8" x 1", Type A

2шт.

28

372739R1

PIN, adjusting

1шт.

29

380719R1

SUPPORT

BULKHEAD, front

1шт.

30

380720R1

BOLT,5/16"- 18 x 0.75"

front bulkhead

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

31

387177R92

CUSHION ASSY.

CUSHION ASSY, upper back

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

32

387178R1

SUPPORT

upper back cushion

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

33

387175R1

LARGE PLATE

PLATE, cover

1шт.

161857

SHAFT

8-15 x 3/8 cr-rec pan-hd type a tapping

3шт.

34

387174R92

CUSHION ASSY.

CUSHION ASSY, back

1шт.

35

387172R1

SUPPORT

back cushion LH

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 C-Z hex-hd cap

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

36

387173R1

SUPPORT

back cushion RH

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 C-Z hex-hd cap

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

37

390184R92

BASE

ASSY, adjustable

1шт.

379273R1

BOLT,Hex, 1/2" - 13 x 1.28"

BOLT, 1/2-13 x 9/32 shoulder

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

38

383292R91

ANGLE

SUPPORT, LH side

1шт.

39

384780R1

BEARING

side support

2шт.

40

393576R91

SUPPORT, RH side

1шт.

41

380694R1

LEVER

front

1шт.

42

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

43

383294R1

LEVER, rear

1шт.

44

380697R2

SECTOR

gear

1шт.

45

380698R2

SHAFT

lower pawl

1шт.

46

443148

GROOVED PIN,3/16" x 1", Type E

Pin, Grooved, 3/16" x 1", Type E

8шт.

47

380699R1

SPRING

torsion

2шт.

48

380700R1

PAWL

lower

1шт.

49

393577R1

ROD, upper pawl release

1шт.

50

380702R1

PAWL

upper

1шт.

51

393578R91

LINK ASSY, RH foot release

1шт.

52

393579R91

RELEASE, LH foot

1шт.

NLS

NO LONGER SERVICED

7/16 x 1 x .083 C-Z

1шт.

53

380704R1

WASHER, spring wave

2шт.

54

142488

GROOVED PIN,1/8" x 1", Type A

Pin, Grooved, 1/8" x 1", Type A

1шт.

55

383296R1

VALVE SPRING

SPRING, linkage main

2шт.

56

383297R1

STRAP, main spring mounting

1шт.

57

393580R91

RELEASE, RH foot

1шт.

Выбрано товаров: 88
