Запчасти Case IH 4166 (13-06) - SUPERSTRUCTURE, CONSOLE PANELS AND SEAT SUPPORT MOUNTING (05) - SUPERSTRUCTURE

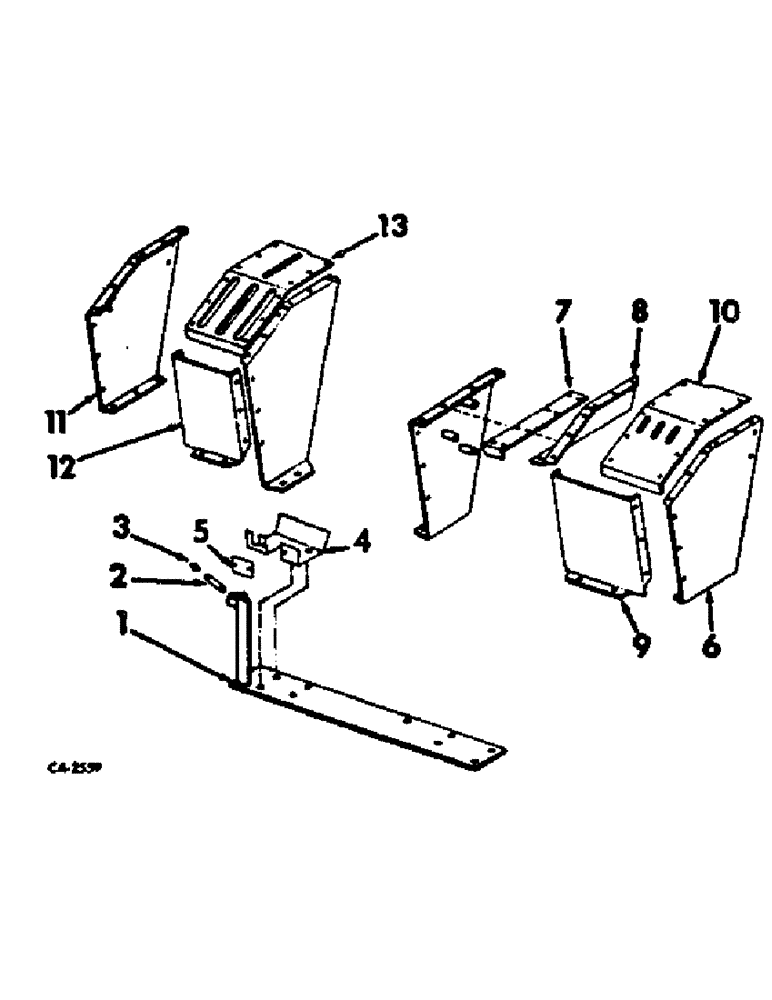

Схема запчастей Case IH 4166 - (13-06) - SUPERSTRUCTURE, CONSOLE PANELS AND SEAT SUPPORT MOUNTING (05) - SUPERSTRUCTURE
6
11
12
13
2
9
10
3
4
8
1
5
7

Артикул

Название

Примечание

Количество

1

390436R11

PLATE ASSY, seat support mounting

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 hex-hd cap

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

2

365720R1

PIPE

grease extension

1шт.

3

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

FITTING, 5/16-32 str lub

1шт.

4

393165R1

BAFFLE, console RH lower air

1шт.

4

403961R1

BAFFLE, console RH lower air, tractors w/independent PTO

1шт.

5

393166R1

COVER, baffle lower air

1шт.

25970R1

SCREW

10-16 x 3/4 znd hex-washer-hd tap

2шт.

6

390471R1

PANEL, console LH side

1шт.

25970R1

SCREW

10-16 x 3/4 znd hex-washer-hd tap

3шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

3шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 C-Z hex-hd cap

3шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

2шт.

7

390474R1

COVER, panel LH console

1шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 hex washer hd tap

4шт.

25970R1

SCREW

10-16 x 3/4 znd hex-washer-hd tap

4шт.

138479

PLUG

WASHER, no. 10 C-Z ext-tooth lock

8шт.

8

390477R1

PANEL, console LH support

1шт.

9

390478R1

PANEL, front LH console

1шт.

10

390479R1

PANEL, top LH console

1шт.

10

403237R1

PANEL, top LH console, tractors w/three point hitch

1шт.

25970R1

SCREW

10-16 x 3/4 znd hex-washer-hd tap

12шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

12шт.

11

390472R11

PANEL ASSY, console RH side

1шт.

25970R1

SCREW

10-16 x 3/4 znd hex-washer-hd tap

3шт.

138479

PLUG

WASHER, no. 10 C-Z ext-tooth lock

3шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 C-Z hex-hd cap

3шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

2шт.

12

390484R1

PANEL, front RH side console

1шт.

13

390483R91

PANEL ASSY, top RH console

1шт.

13

403962R1

PANEL ASSY, top RH console, tractors w/independent PTO

1шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex washer hd tap

6шт.

25970R1

SCREW

10-16 x 3/4 znd hex-washer-hd tap

6шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

12шт.

Выбрано товаров: 36
