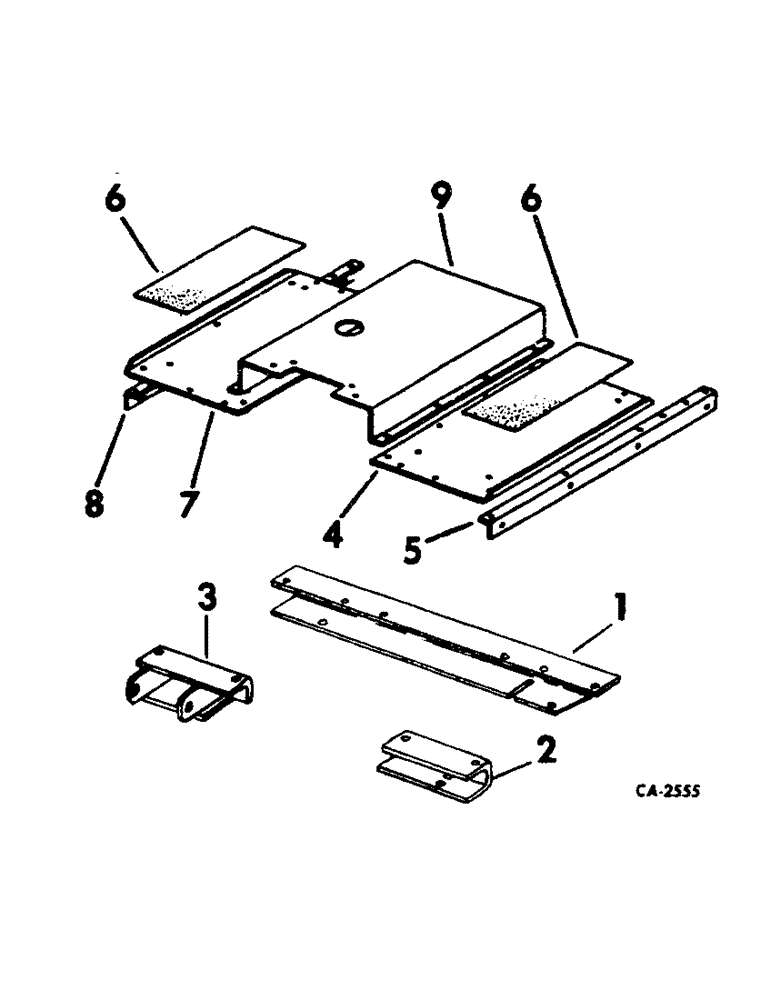

Запчасти Case IH 4166 (13-05) - SUPERSTRUCTURE, PLATFORM, PLATFORM SUPPORTS AND MOUNTING STEP (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
1
390429R21
SUPPORT ASSY, platform rear
1шт.
179886
BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5
SCREW, 1/2-13 x 1-5/8 hex-hd cap
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
102637
NUT,1/2"-13, G5
2шт.
2
390430R21
SUPPORT ASSY, platform front LH
1шт.
179886
BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5
SCREW, 1/2-13 x 1-5/8 hex-hd cap
2шт.
102637
NUT,1/2"-13, G5
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
3
390431R21
SUPPORT ASSY, platform front RH
1шт.
179886
BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5
SCREW, 1/2-13 x 1-5/8 hex-hd cap
2шт.
102637
NUT,1/2"-13, G5
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
4
390432R11
PLATFORM ASSY, LH
1шт.
5
390481R11
ANGLE ASSY, riser mounting bracket LH
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
SCREW, 1/4-20 x 5/8 C-Z hex-hd cap
3шт.
25970R1
SCREW
10-16 x 3/4 znd hex-washer-hd tap
3шт.
493-41020
LOCK WASHER,Ext Tooth, #10
WASHER, no. 10 C-Z ext-tooth lock
5шт.
390475R1
SCREW,Hex Wshr Hd, #10 - 32 x 1/2"
10-32 x 1/2 C-Z hex washer hd tap
2шт.
138489
LOCK WASHER,Ext Tooth, 3/8"
WASHER, LOCK, Ext Tooth, 3/8"
4шт.
6
390487R1
SURFACING, platform non-slip
2шт.
7
390433R11
PLATFORM ASSY, RH
1шт.
8
390482R11
ANGLE ASSY, riser mounting bracket RH
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
SCREW, 1/4-20 x 5/8 C-Z hex-hd cap
3шт.
25970R1
SCREW
10-16 x 3/4 znd hex-washer-hd tap
4шт.
138479
PLUG
WASHER, no. 10 C-Z ext-tooth lock
6шт.
390475R1
SCREW,Hex Wshr Hd, #10 - 32 x 1/2"
10-32 x 1/2 C-Z hex washer hd tap
2шт.
138489
LOCK WASHER,Ext Tooth, 3/8"
WASHER, LOCK, Ext Tooth, 3/8"
4шт.
9
390435R1
COVER, center platform
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
SCREW, 1/4-20 x 5/8 C-Z hex-hed cap
6шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
Выбрано товаров: 32
