Запчасти Case IH 4166 (13-02) - SUPERSTRUCTURE, STEERING AND GEAR SELECTOR SUPPORTS, PEDAL COVERS AND GASKETS AND HEAT BAFFLES (05) - SUPERSTRUCTURE

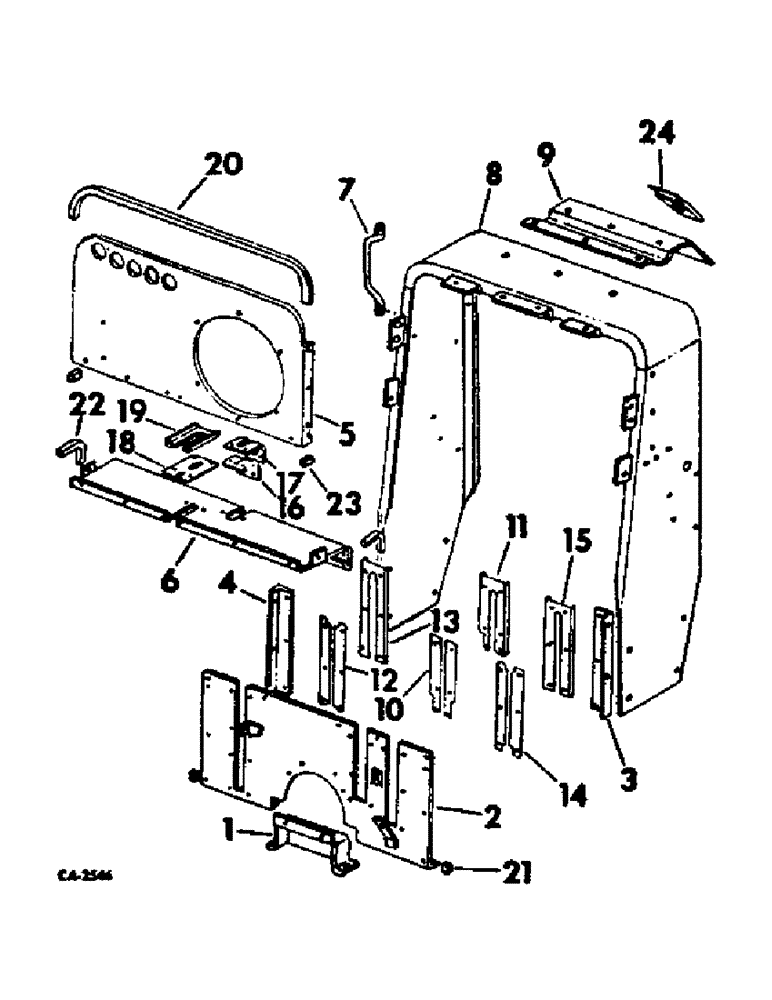

Схема запчастей Case IH 4166 - (13-02) - SUPERSTRUCTURE, STEERING AND GEAR SELECTOR SUPPORTS, PEDAL COVERS AND GASKETS AND HEAT BAFFLES (05) - SUPERSTRUCTURE
21
18
1
14
17
23
15
10
7
21
2
4
12
9
22
5
19
16
20
6
13
3
11
8

Артикул

Название

Примечание

Количество

1

390523R1

COVER, lower center

1шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex washer hd tap

12шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

12шт.

2

71125C91

COVER W/PRODUCT GRAPHIC ASSY, pedal

1шт.

25970R1

SCREW

10-16 x 3/4 znd hex-washer-hd tap

5шт.

138479

PLUG

WASHER, no. 10 C-Z ext-tooth lock

5шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

4шт.

120376

NUT,5/16"-18, G5

4шт.

3

393828R1

ANGLE, pedal cover LH

1шт.

4

393829R1

ANGLE, pedal cover RH

1шт.

5

390521R11

BAFFLE ASSY, upper heat

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

6шт.

6

392897R11

BAFFLE ASSY, lower heat

1шт.

157716

SCREW, 1/4-20 x 1/2 slt-truss-hd

2шт.

25970R1

SCREW

10-16 x 3/4 znd hex-washer-hd tap

5шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

5шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

2шт.

7

390488R1

HANDLE

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

2шт.

102635

NUT,3/8"-16, G5

2шт.

8

68272C1

SUPPORT

ASSY, steering, Replaces 390504R91 on orders for 390504R91 furnish 682782C1 support, 8 screw 271606, 8 nut 220086, 8 washer 103326, clip 68375C1, clip 68276C1 and clip 68277C1, on 4166 tractors w/serial no. 11127 and below

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

3шт.

102635

NUT,3/8"-16, G5

4шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

SCREW, 3/8 x 1-1/4 C-Z sq-nk crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

157836

SCREW, 3/8-16 x 1-1/4 C-Z cr-rec truss-hc mach

1шт.

271606

BOLT,Hex, 3/4" - 10 x 1 3/8", Gr 5

SCREW, 3/4-10 x 1-3/8 hex-hd cap

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

9

390503R21

BRACKET ASSY, steering support

1шт.

10

392818R1

SEAL, park brake pedal

2шт.

11

392819R1

RETAINER, park brake pedal seal

1шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex washer hd tap

6шт.

12

392820R1

SEAL, brake pedal

2шт.

13

392821R1

RETAINER, brake pedal seal

1шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex-washer-hd tap

8шт.

14

392822R2

SEAL, clutch pedal

2шт.

15

392823R1

RETAINER, clutch pedal seal

1шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex-washer-hd tap

6шт.

16

392824R1

SEAL, brake release lever

1шт.

17

392825R1

RETAINER, brake release lever seal

1шт.

25970R1

SCREW

10-16 x 3/4 znd hex-washer-hd tap

4шт.

18

392826R1

SEAL, governor rod and steering hose

1шт.

19

392827R1

RETAINER, gov. rod & steering hose

1шт.

25970R1

SCREW

10-16 x 3/4 znd hex-washer-hd tap

4шт.

20

GASKET, upper heat baffle sealing, Use 43.8 in. from bulk roll marked 73213C1

1шт.

21

GASKET, lower heat baffle front sealing, Use 1.8 in. from bulk roll marked 73213C1

2шт.

22

GASKET, lower heat baffle rear sealing, Use 7.5 in. from bulk roll marked 73213C1

2шт.

23

GASKET, pedal cover sealing, Use 1.4 in. from bulk roll marked 73213C1

2шт.

24

398276R1

COVER, steering support

1шт.

385528R1

PIN

3/16 x 1/2 cdp dowel

1шт.

138223

SUPPORT

5/16-18 x 1-1/4 hex-soc-hd cap

2шт.

138225

BEARING

SCREW, 5/16-18 x 1-3/4 hex-soc-hd cap

2шт.
