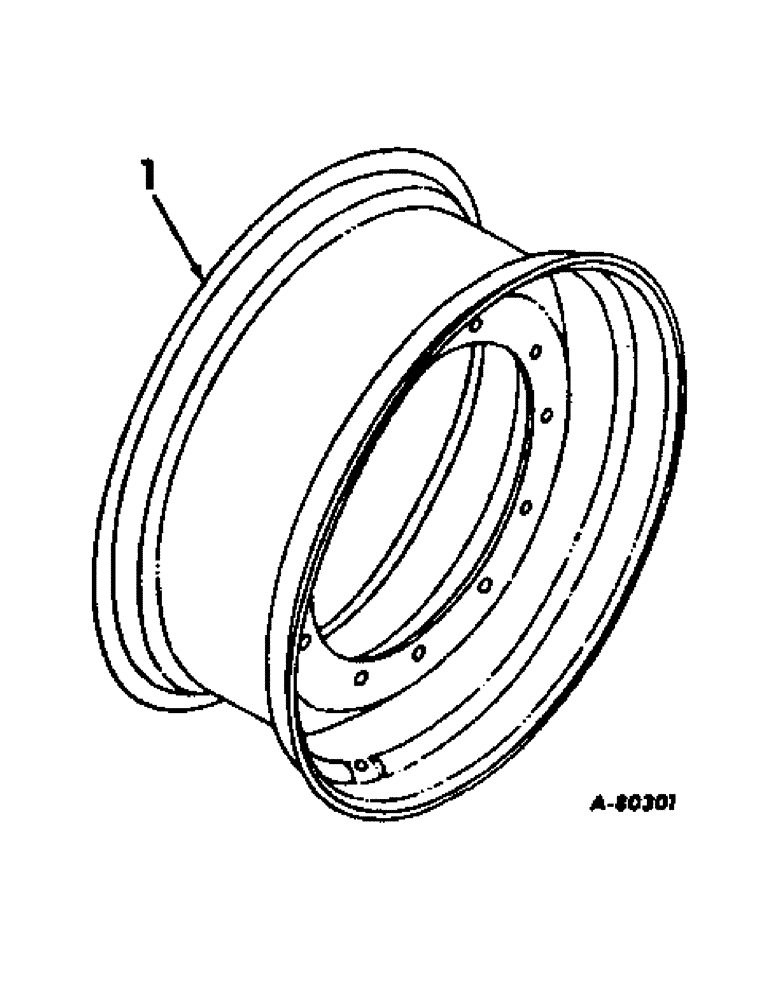

Запчасти Case IH 4166 (15-01) - WHEELS AND TRACTION, FRONT AND REAR WHEELS Wheels & Traction

1

392466R91

WHEEL ASSY, non reversible disc, DW16-26 rim for 18, 4-26 tire

4шт.

1

392469R91

WHEEL ASSY, non reversible disc, DW20-26 rim for 23, 1-26 tire

4шт.

1

399365R1

WHEEL ASSY, non reversible disc, DWH25-26 rim for 28, 1-26 tire

4шт.

1

392468R91

WHEEL ASSY, non reversible disc, DW16-30 rim for 18, 4-30 tire

4шт.

1

394821R91

WHEEL ASSY, non reversible disc, DW16-34 rim for 18, 4-34 tire

4шт.

All wheel assemblies listed are 12 bolt hole pattern and have a 16.625" bolt hole to bolt hole center line diameter. Also the large hole in the middle has a approximate diameter of 14.54". CAM (db) 3-3-99

1шт.

84711H

NUT

wheel stud

48шт.
