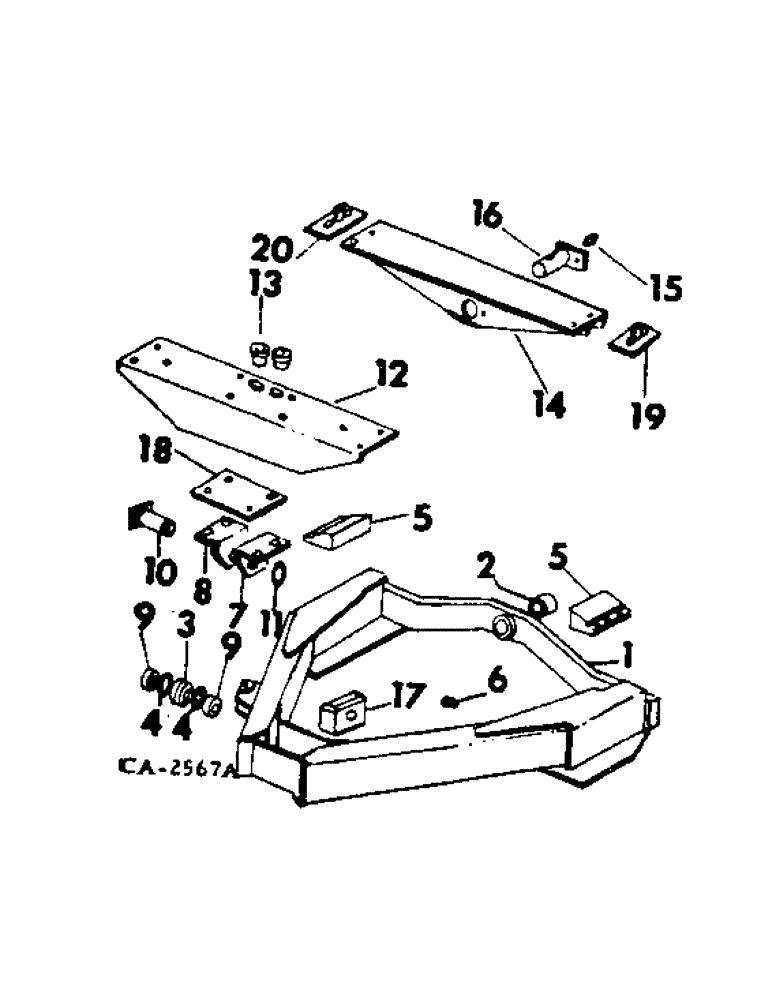

Запчасти Case IH 4166 (14-01) - SUSPENSION, SUB-FRAME, FRONT AND REAR PIVOT SHAFTS AND RELATED PARTS Suspension

1

394335R92

SUB-FRAME ASSY

1шт.

2

390787R1

BUSHING

rear pivot

1шт.

3

390157R91

BUSHING

BEARING, frame front

1шт.

4

390158R1

RING

front bearing retaining

2шт.

5

539227R1

BUMPER, sub-frame

2шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 phc p/t type 8

6шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

6шт.

6

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 ptf 65 deg angle lub

1шт.

7

390334R2

ANGLE

front pivot LH

1шт.

8

390335R2

ANGLE

front pivot RH

1шт.

9

390162R1

BUSHING

COLLAR, front pivot

2шт.

10

390160R11

SHAFT

ASSY, front pivot

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, 3/8-24 x 3/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

390163R1

SNAP RING,#150, 1.419", Ext Spiral

RING, front pivot pin retaining

1шт.

12

538960R1

SUPPORT, frame front

1шт.

223740

SCREW, 5/8-18 x 2-1/2 type 8 hex-hd cap, RH

4шт.

225861

NUT,5/8"-18, G8

4шт.

400839R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 hardened

8шт.

114498

JAM NUT,Jam, 5/8"-18, G5

4шт.

20669R1

BOLT,5/8" x 3", Gr 8

SCREW, 5/8-18 x 3 hex-hd cap, LH

2шт.

665090R1

BOLT,5/8" x 3 1/4", Gr 8

SCREW, 5/8-18 x 3-1/4 znd hex-hd cap

4шт.

400839R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 hardened

8шт.

114498

JAM NUT,Jam, 5/8"-18, G5

4шт.

225861

NUT,5/8"-18, G8

4шт.

13

538648R1

BUSHING

engine mount

2шт.

495464R1

WASHER, 17/32 x 1-5/8 x 11 ga

2шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 hex-hd cap

2шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cdp nylon insert lock

2шт.

14

400838R1

SUPPORT ASSY, rear

1шт.

20556R1

DOWEL,1/2" x 3/4"

PIN, 1/2 x 3/4 dowel

2шт.

890858R1

BOLT,Hex, 5/8" - 18 x 4", Gr 8

SCREW, 5/8-18 x 4 znd hex-hd cap

4шт.

400839R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 hardened

8шт.

225861

NUT,5/8"-18, G8

4шт.

114498

JAM NUT,Jam, 5/8"-18, G5

4шт.

15

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 ptf 65 deg angle lub

1шт.

16

390164R11

SHAFT

ASSY, rear pivot

1шт.

181428

BOLT,Hex, 1/2" - 20 x 1 1/8", Gr 5

SCREW, 1/2-20 x 3/4 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

1шт.

17

390143R2

CARRIER

front frame bearing

1шт.

18

533638R2

SPACER, sub-frame support frt

1шт.

19

533636R91

SPACER ASSY, sub frame support rear LH

1шт.

20

533637R91

SPACER ASSY, sub frame support rear RH

1шт.

20556R1

DOWEL,1/2" x 3/4"

PIN, 1/2 x 3/4 dowel

1шт.
