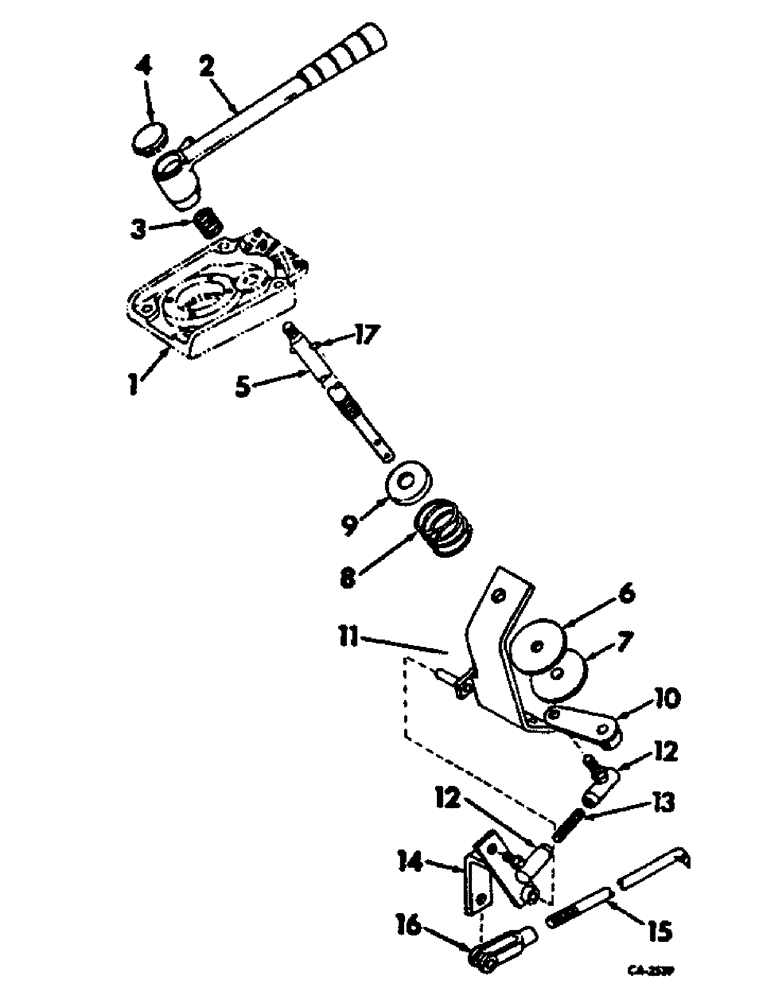

Запчасти Case IH 4166 (12-05) - POWER, ENGINE SPEED CONTROLS Power

1

COVER ASSY, steering support, Refer to steering & gear selector supports listing, group 13

1шт.

2

391666R1

HANDLE

governor control

1шт.

3

30A

SPRING

governor control handle

1шт.

615029R1

WASHER

3/8 x 3/4 x .065

1шт.

230-4115

LOCK NUT,5/16"-18, GA

NUT, 5/16-18 strover hex lock

1шт.

4

192105

HOLE PLUG BUTTON,1"

PLUG, 1 C-Z button

1шт.

106265

WASHER,1/2"

9/16 x 1-3/8 x .109

1шт.

5

538950R91

SHAFT ASSY, governor control operating

1шт.

6

382684R1

GASKET

DISC, governor control friction

1шт.

7

382685R11

RETAINER

RETAINER ASSY, governor control friction disc

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

8

369462R1

SPRING

governor control

1шт.

9

369461R1

RETAINER

RETAINER, governor control spring

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

10

383183R11

ARM

LEVER ASSY, governor control operating shaft

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

11

538952R1

BRACKET

SUPPORT ASSY, governor control operating shaft

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

12

393353R91

JOINT TURNING

JOINT, 5/16-24 C-Z ball

2шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

2шт.

13

390542R1

STUD, ball joint connecting

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

14

538955R1

ARM ASSY, governor control rod operating

1шт.

15

538957R1

ROD, governor control

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), , Engine end 3/32" x 1/2"

1шт.

16

104037

CLEVIS

5/16-24 x 2-1/4 light adj rod end

1шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065 engine end

1шт.

17

443149

GROOVED PIN,3/16" x 1 1/4", Type E

Pin, Grooved, 3/16" x 1 1/4", Type E

1шт.
