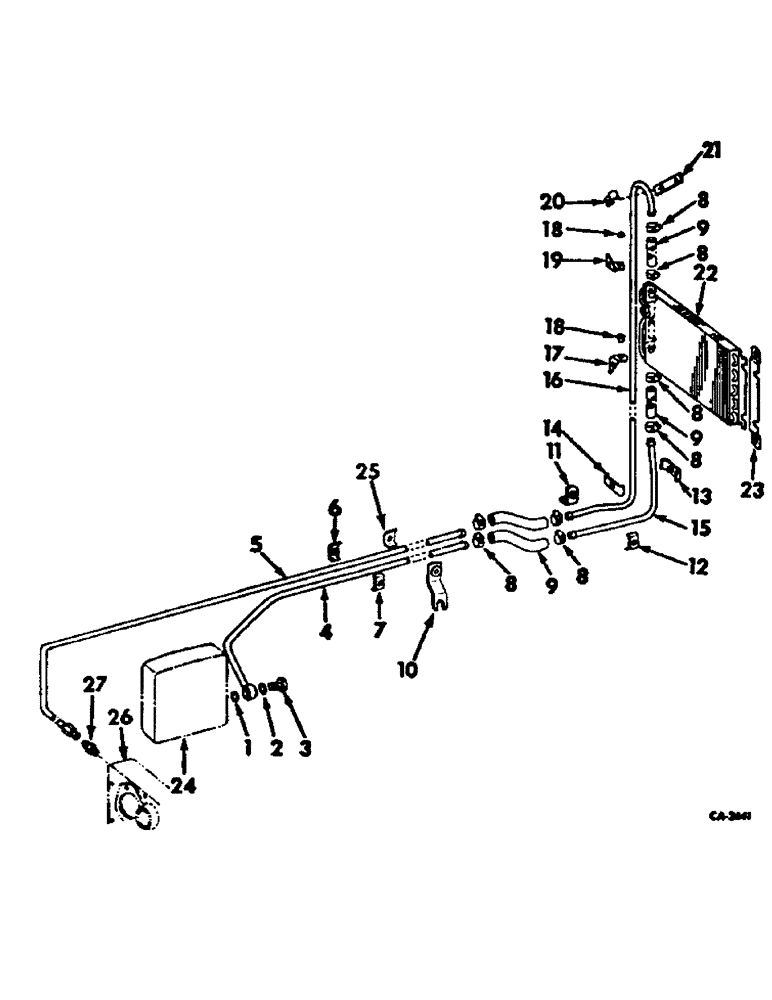

Запчасти Case IH 4166 (06-01) - COOLING, OIL COOLER AND CONNECTIONS Cooling

1

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

O-RING, 13/16 x 15/16 x 1/16, union plug

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-RING, 41/64 x 13/16 x 3/32, union plug

1шт.

3

384577R1

NIPPLE, LUBE

NIPPLE PLUG, union outlet

1шт.

4

390616R11

SPARE PART PIPE ASSY, oil cooler outlet rear, Use 33 inch from a 4 ft length

1шт.

5

539941R1

SPARE PART PIPE ASSY, oil cooler inlet rear

1шт.

6

384855R11

CLAMP

CLAMP ASSY, oil cooler rear pipes

1шт.

7

381448R1

CLAMP

CLAMP, oil cooler rear pipe support

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

8

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP ASSY, oil cooler hose

8шт.

9

HOSE, oil cooler pipes, Furnish 10-1/2 inch from bulk hose 73199C1

4шт.

10

382772R11

SPARE PART BRACKET ASSY, outlet and inlet tubes

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

575807R1

WASHER

WASHER, 13/32 x 1 x .105

1шт.

102635

NUT,3/8"-16, G5

NUT, 3/8"-16, G5

1шт.

11

384484R11

SUPPORT TUBE

SUPPORT ASSY, oil cooler front pipes lower

1шт.

12

381448R1

CLAMP

CLAMP, oil cooler front pipes lower

1шт.

13

384855R11

CLAMP

CLAMP ASSY, oil cooler front pipes

1шт.

14

381448R1

CLAMP

CLAMP, oil cooler front pipe support

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

15

390614R1

SPARE PART PIPE, oil cooler outlet front hose, tube bumper, Use 2 in. from 6 in. hose, 535257R1

1шт.

16

390612R1

SPARE PART PIPE, oil cooler inlet front hose, tube bumper, Use 2 in. from 6 in. hose, 535257R1

1шт.

17

387325R2

SPARE PART BRACKET, oil cooler mounting lower

1шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 12 pt

1шт.

18

387327R1

BUSHING

BUSHING, oil cooler pivot

2шт.

19

387324R2

SPARE PART BRACKET, oil cooler mounting upper

1шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 12 pt

1шт.

20

341670R1

SPARE PART CLIP, front cooler pipes upper support

1шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

390603R1

SPARE PART STRIP, front cooler pipes upper support

1шт.

22

390611R91

SPARE PART COOLER ASSY, oil

1шт.

23

387326R1

SPARE PART SUPPORT, oil cooler

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 12 pt

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

2шт.

24

VALVE ASSY, multiple control, Refer to power supply and multiple control valve listing group 10

1шт.

25

381448R1

CLAMP

CLAMP, outlet and inlet tubes

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

26

COVER ASSY, transfer case rear, Refer to range transmission listing group 7

1шт.

27

9402709

HYD CONNECTOR,3/4"-16, 37 Degree x 3/8"-18, NPTF

CONNECTOR, 3/8-18 C-Z 37 deg hyd flared tube

1шт.
