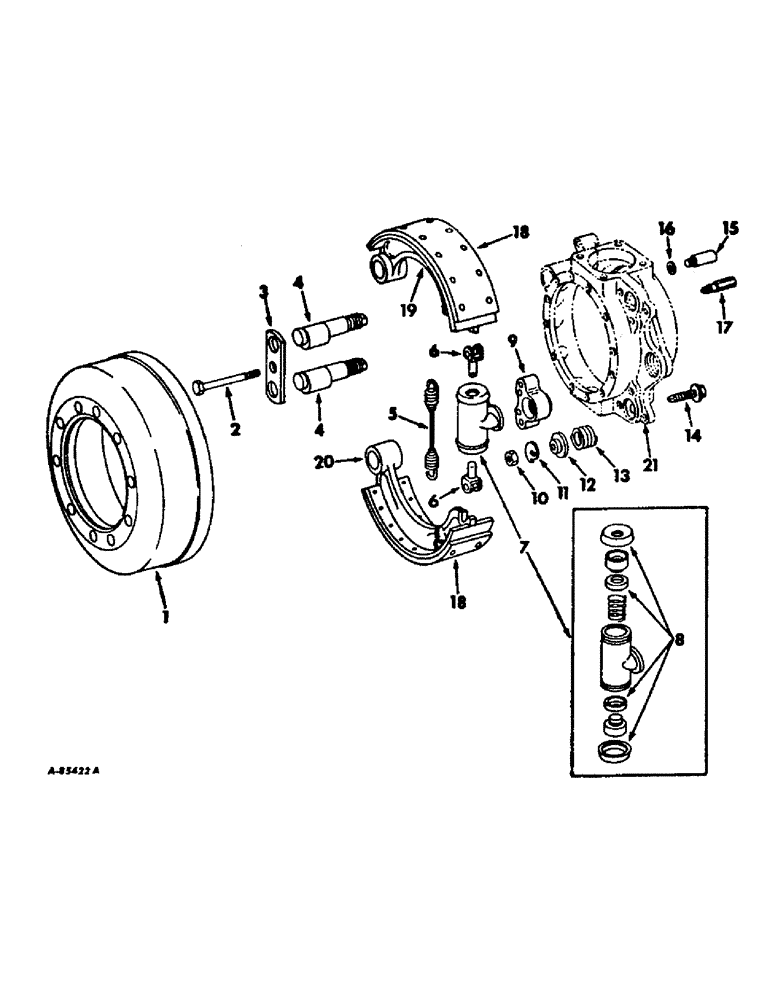

Запчасти Case IH 4166 (04-07) - BRAKES, WHEEL BRAKES AND CONNECTIONS (5.1) - BRAKES

1

393690R1

DRUM

brake

4шт.

152163H1

SCREW, drum to wheel hub cap

40шт.

2

151135H1

BOLT, brake shoe link

4шт.

878157R1

SLOTTED NUT

NUT, 1/2-20 slt-thick hex

4шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

4шт.

3

878160R1

LINK

brake shoe

4шт.

4

878162R1

PIN

brake shoe anchor

8шт.

878159R1

NUT, brake shoe anchor pin

8шт.

121326

WASHER,1"

LOCK, 1"

8шт.

5

878166R1

SPRING

brake shoe return

4шт.

6

107591H1

FORK

LINK, brake shoe connecting, On front axle

4шт.

6

404913R1

LINK, brake shoe connecting, On rear axle

4шт.

7

393678R91

CYLINDER

CYLINDR ASSY, wheel, On front axle

2шт.

7

401985R91

CYLINDER

ASSY, wheel, On rear axle

2шт.

8

393679R91

KIT

PACKAGE, wheel cyl service, On front axle

2шт.

8

401986R91

STRIPPER PACKAGE

PACKAGE, wheel cyl service, On rear axle

2шт.

9

174956H1

ADAPTER, wheel cylinder

4шт.

347755R1

SCREW

, Serial Range: adapter-cylinder

8шт.

264239R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

SCREW, 1/2-13 x 2 hex-hd cap type 4

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

10

878177R1

NUT, 1/2-20 thick hex

8шт.

11

136583H

CAM

brake shoe adjusting

8шт.

12

116289H1

RETAINER, brake cam spring

8шт.

13

116290H1

SPRING, brake cam

8шт.

14

116287H1

BOLT ASSY, brake cam

8шт.

15

121730H1

FITTING, cyl inlet extension

4шт.

16

48167H

GASKET

GASKET, inlet fitting

4шт.

17

121731H1

SCREW

bleeder

4шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4 x 1/2 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

18

393684R91

STRIPPER PACKAGE

PACKAGE, lining and rivet, Consists of 4 linings and 72 rivets

2шт.

19

491224C91

SHOE (ASSY)

SHOE ASSY, brake w/lining, Replaces 150916H2, front axle, LH top, RH bottom, rear axle, LH bottom, RH top

4шт.

20

491225C91

SHOE (ASSY)

SHOE ASSY, brake w/lining, Replaces 150917H2, front axle, LH bottom, RH top, rear axle, LH top, RH bottom

4шт.

21

FLANGE ASSY, steering knuckle and companion, Refer to front or rear axle connections listing, group 7

1шт.
