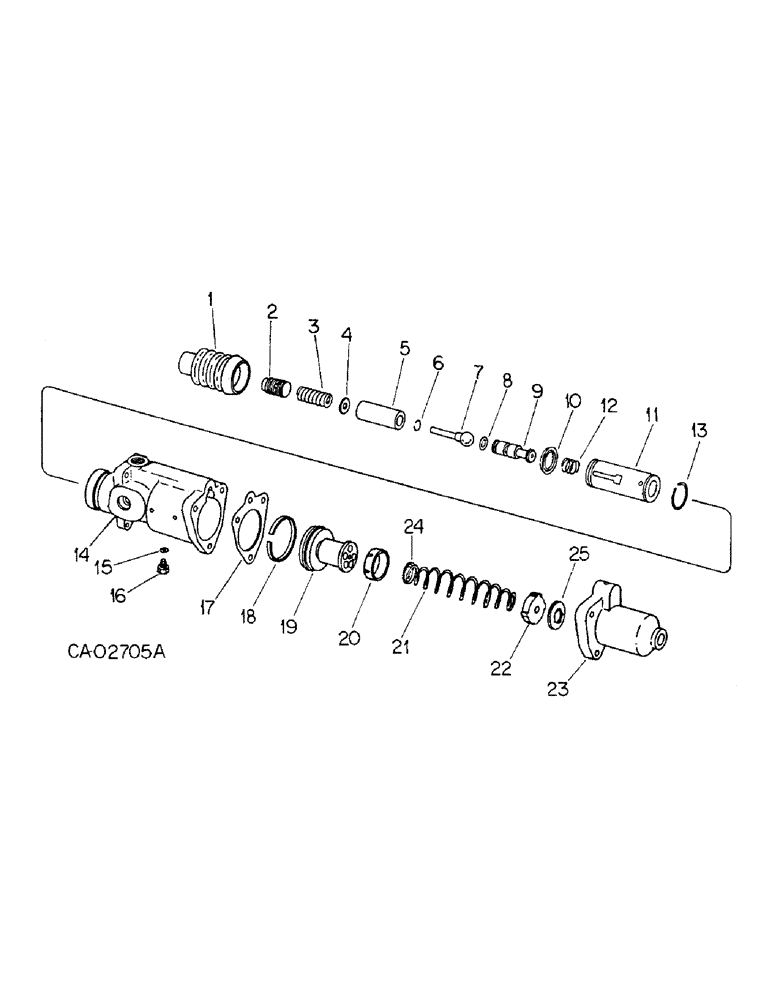

Запчасти Case IH 4166 (04-06) - BRAKES, POWER BRAKE VALVE (5.1) - BRAKES

390644R91

LOCK VALVE

VALVE ASSY, power brake

1шт.

1

394687R1

BOOT

brake valve

1шт.

2

PLUG, link adjustment, Not serviced separately, Order valve assy

1шт.

3

SPRING, clevis return, Not serviced separately, Order valve assy

1шт.

4

WASHER, brake valve, Not serviced separately, Order valve assy

1шт.

5

LINK, power brake valve, Not serviced separately, Order valve assy

1шт.

6

394679R1

RING, ball retaining

1шт.

7

ROD & BALL ASSY, clevis, Not serviced separately, Order valve assy

1шт.

8

394682R1

PACKING

vee block

1шт.

9

SPOOL, pressure regulating, Not serviced separately order valve assy, 390644R91

1шт.

10

394681R1

MISC PACKAGING

PACKING, vee block

1шт.

11

SLEEVE, brake actuating, Not serviced separately, Order valve assy, 390644R91

1шт.

12

394685R1

SPRING

spool return

1шт.

13

394684R1

RING

snap

1шт.

14

BODY, power brake valve, Not serviced separately, Order valve assy, 390644R91

1шт.

15

369375R1

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

15/64 x 23/64 x 1/16

1шт.

16

394675R1

BOLT, 5/16-24 special hex-hd

1шт.

17

394688R1

GASKET

brake valve

1шт.

18

394680R1

RING

piston

1шт.

19

PISTON ASSY, master, Not serviced separately, Order valve assy

1шт.

20

394690R1

CUP ASSY.

CUP, primary

1шт.

21

69718C1

SPRING, power brake valve, less retainer

1шт.

22

126826C1

WASHER

piston return spring

1шт.

23

394677R91

CAP & BALL ASSY, end

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4" C-Z hex-hd cap

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

24

64849C1

RETAINER, piston rod spring

1шт.

25

126825C1

SEAT, piston return spring

1шт.

64902C91

STRIPPER PACKAGE

PACKAGE, power brake valve o-ring packing and gasket service, Replaces 394691R91, Consists of

1шт.

369375R1

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

394681R1

MISC PACKAGING

PACKING

1шт.

394682R1

PACKING

1шт.

394690R1

CUP ASSY.

CUP

1шт.

394688R1

GASKET

1шт.

64849C1

RETAINER

1шт.

126825C1

SEAT

1шт.
