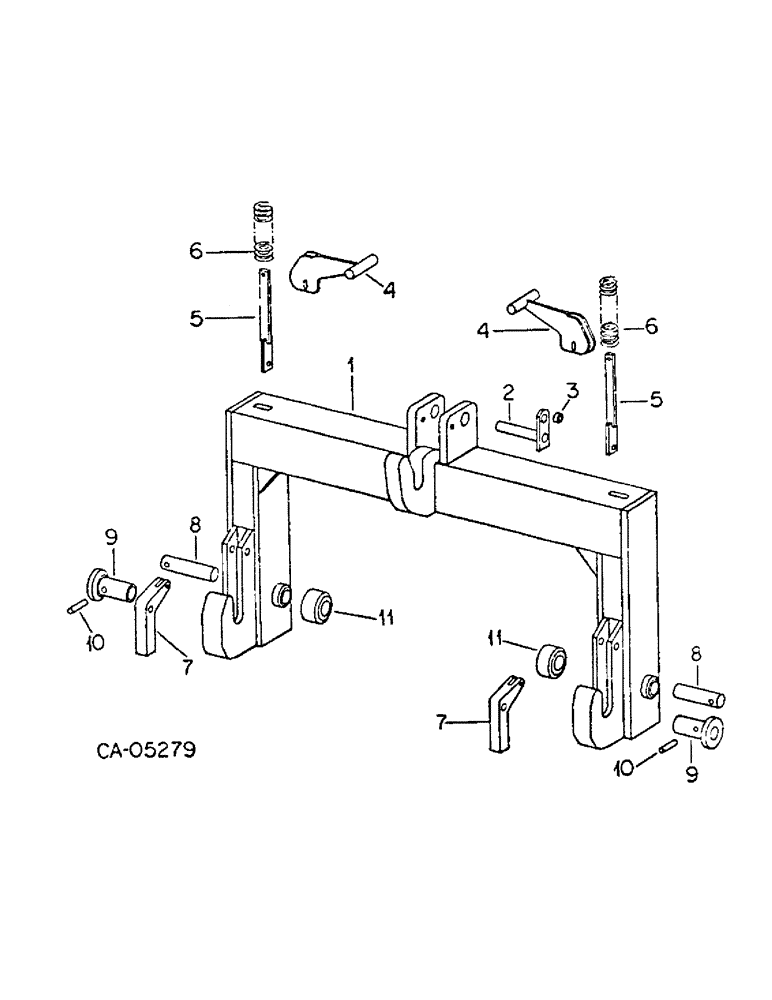

Запчасти Case IH 4166 (09-08) - FRAME, THREE POINT HITCH QUICK COUPLER ATT, CATEGORY II HITCH (12) - FRAME

62784C91

COUPLING

COUPLER ASSY, category II quick, also furnish 2 lower link hitch ball bushing 535448R1

1шт.

64726C91

COUPLING

COUPLER ASSY, category III quick

1шт.

1

64711C1

FRAME

ASSY, coupler main, category II

1шт.

2

64712C1

PIN

ASSY, upper link, category II

1шт.

3

64714C1

BUSHING

pin retainer, category II

1шт.

3

64714C1

BUSHING

pin retainer, category III

3шт.

495-11053

WASHER,1/2", SAE

.531 x 1.062 x .074 znd, 1 per bushing retainer

1шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2-13 x 1-1/4 PT hex-hd cap, 1 per bushing retainer

1шт.

4

64715C1

HANDLE

ASSY, latch

2шт.

39374D

CLEVIS PIN,5/16" x 1 1/16"

PIN, 5/16 x 1-1/16 clevis ht

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

5

64716C1

BAR

spring, category II

2шт.

6

64717C1

SPRING

latch

2шт.

7

64718C1

LUG

lock, latch, category II

2шт.

19555R1

PIN,5/16" x 1", Coiled

2шт.

20126R1

PIN,1/2" x 2", Coiled

2шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.

8

64719C1

PIN

lower link, category II

2шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

2шт.

9

401232R1

ADAPTER

implement lower hitch pin

2шт.

10

21926R1

PIN,7/16" x 1 3/8", Coiled

2шт.

11

401233R1

COLLAR

BUSHING, implement lower hitch pin, category III

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.

Ref to TC-177 for part #'s

1шт.
