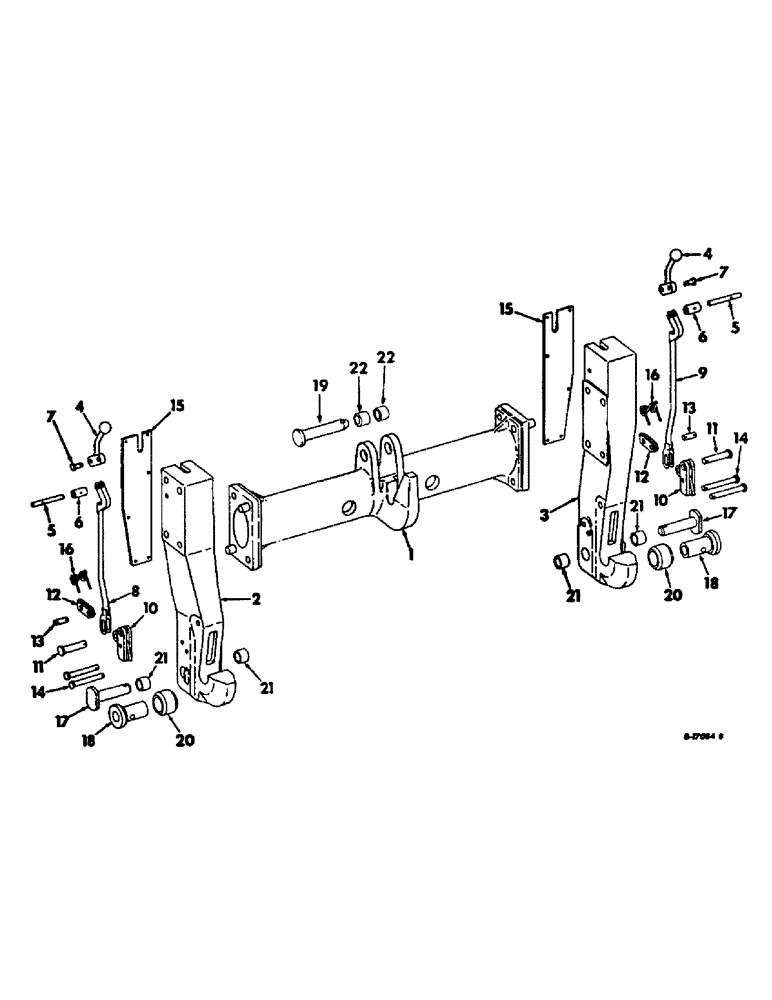

Запчасти Case IH 4166 (09-06) - FRAME, THREE POINT HITCH QUICK COUPLER, CATEGORY III HITCH (12) - FRAME
№
Артикул
Название
Примечание
Количество
401231R91
COUPLING
COUPLER ASSY, quick, order coupler assy, 64726C91, consists of ref. nos. 1 through 17, 21, 22 and attaching hardware
1шт.
1
401249R1
SECTION ASSY, center
1шт.
20611R1
BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8
SCREW, 5/8-11 x 2-1/4 znd hex-hd cap
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
2
401250R1
ARM, side LH, category III
1шт.
3
401251R1
ARM, side RH, category III
1шт.
4
70644C1
LEVER
hitch
2шт.
549654R1
GRIP, hitch lever
2шт.
5
401252R1
PIN, hitch lever hinge
2шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
2шт.
6
401253R1
SPACER, lever pin
2шт.
7
401245R1
PIN, hitch lever link
2шт.
648002
KNIFE
1/8" x 3/4"
2шт.
8
401254R1
ROD ASSY, hitch LH, category III
1шт.
9
401255R1
ROD ASSY, hitch RH, category III
1шт.
10
401242R1
SUPPORT
PLATE ASSY, latch
2шт.
11
401246R1
PIN
locking latch hinge
2шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
2шт.
12
401243R1
CLEVIS
LINK, hitch lower
2шт.
13
401247R1
PIN, clevis slot
2шт.
648002
KNIFE
1/8" x 3/4"
4шт.
446548
WASHER,0.38" ID x 0.75" OD x 0.05" Thk
3/8 x 3/4 x .051 C-Z
4шт.
14
401215R1
PIN
lower link
4шт.
648002
KNIFE
1/8" x 3/4"
4шт.
15
401216R1
PLATE, farm front cover
2шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SCREW, 1/4 x 1/2 C-Z hex-hd cap
12шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
12шт.
16
401244R1
SPRING
double torsion
2шт.
17
401217R1
PIN
stud, category III
2шт.
17
401248R1
PIN
ASSY, stud, category II
2шт.
18
401232R1
ADAPTER
implement lower hitch pin
2шт.
21926R1
PIN,7/16" x 1 3/8", Coiled
2шт.
19
374132R1
PIN
upper hitch, category II, replaces 401234R1 pin and 517758R91 pin
1шт.
20
401233R1
COLLAR
BUSHING, implement lower hitch pin, category III
2шт.
19998R1
PIN,1/2" x 2 1/2", Coiled
2шт.
21
401218R1
BUSHING
stud pin
4шт.
22
401256R1
BUSHING
upper hitch pin
2шт.
Выбрано товаров: 37
