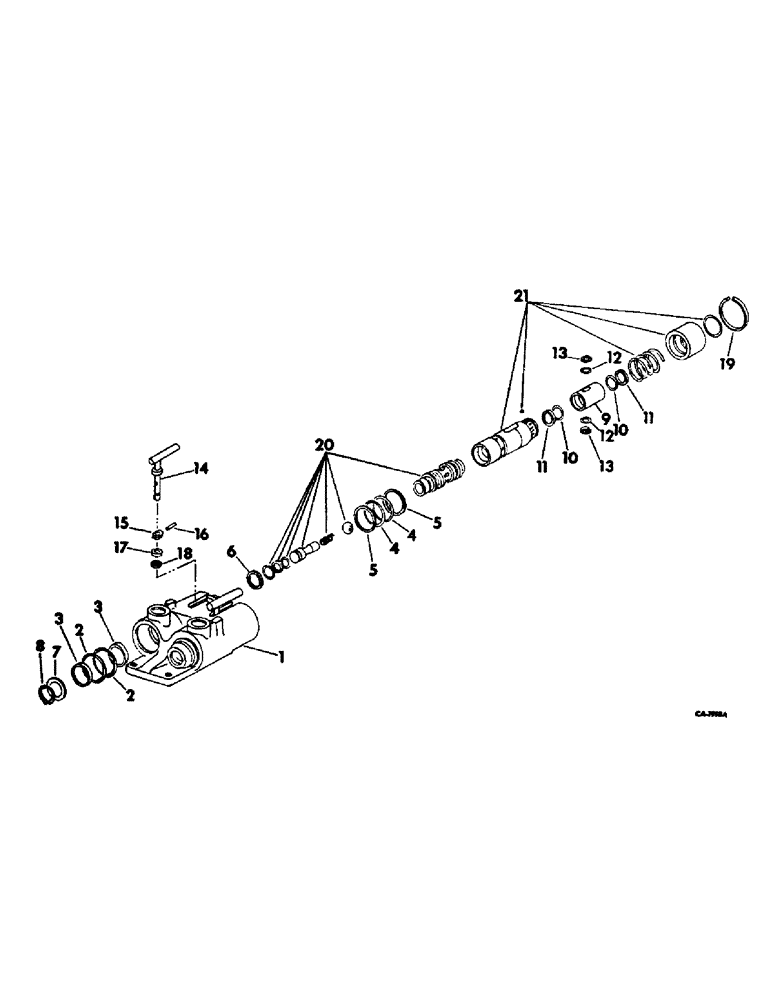

Запчасти Case IH 4166 (10-17) - HYDRAULICS, FEMALE COUPLER (07) - HYDRAULICS

544786R94

SPARE PART

COUPLING ASSY, female

1шт.

1

544788R1

BODY

1шт.

2

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1-11/16 x 1-7/8 x 3/32

4шт.

3

544789R1

SEAL

sleeve

4шт.

4

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1-1/16 x 1-1/4 x 3/32

4шт.

5

544792R1

WASHER,27.66mm ID x 32.08mm OD x 1.32mm Thk

back-up

4шт.

6

57071C1

RING

retaining check body inner

2шт.

7

22769R1

WASHER

2шт.

8

21399R1

SNAP RING,#106, Ext

Ring, Snap, , check body outer #106, Ext

2шт.

9

544798R1

BUSHING

SLEEVE, female body small

2шт.

10

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, class 5

4шт.

11

544799R1

WASHER

backup

4шт.

12

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

4шт.

13

544800R1

WASHER

back-up

4шт.

14

544801R1

HANDLE

ASSY, valve

2шт.

15

544804R1

CAM

check valve

2шт.

16

544805R1

PIN

cam retainer

2шт.

17

544806R1

RETAINER

cam shaft

2шт.

18

399921C1

RING

cam shaft retaining

2шт.

19

537468R1

SNAP RING,#193, 2.081", Int

RING, retaining

2шт.

20

549158R1

VALVE

ASSY, check

2шт.

21

549159R2

SLEEVE

ASSY, female body

2шт.

549160R92

PACKAGE

hydraulic coupler o-ring and seal service, Consists of ref. nos. 2, 3, 4, 5, 10, 11, 12, 13 and 18

1шт.
