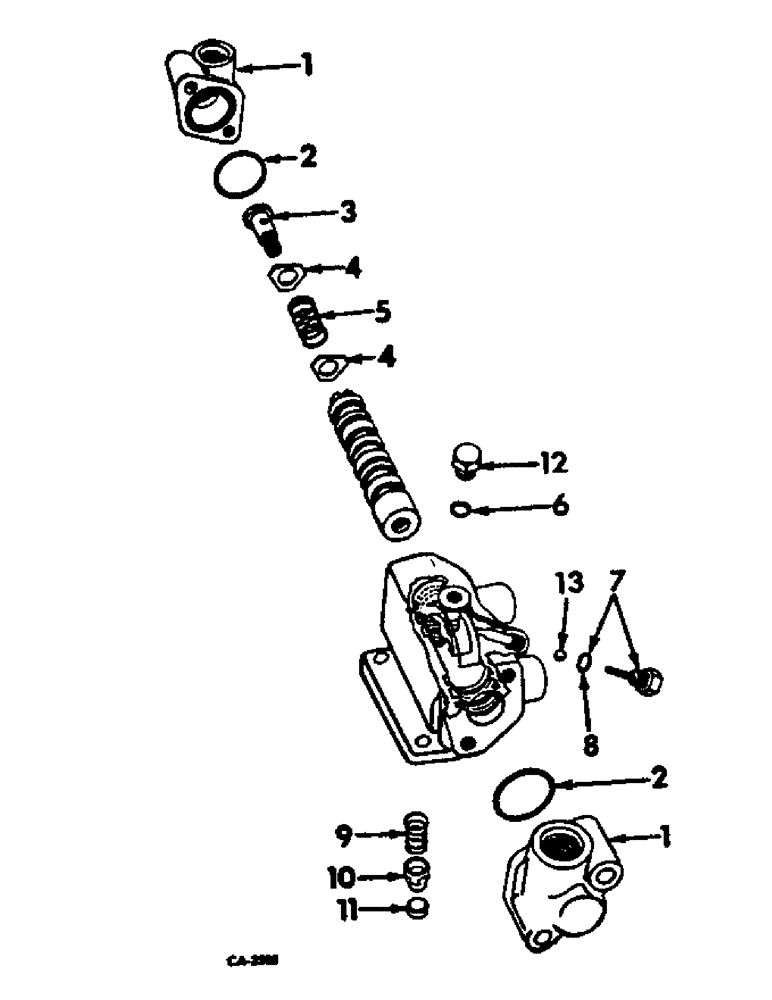

Запчасти Case IH 4166 (10-16) - HYDRAULICS, POWER STEERING PILOT VALVE (07) - HYDRAULICS

534501R91

VALVE

ASSY, power steering pilot

1шт.

1

379894R1

CAP

end

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

387088R1

SEALING RING,1.237" ID x 0.103" Width

SEAL, end cap

2шт.

3

379896R1

SCREW,3/8" - 24, Drilled, W/ Nylon Pellet

spring centering

1шт.

4

379897R1

WASHER

centering screw

2шт.

5

385622R1

SPRING, valve centering

1шт.

6

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Boss plug

1шт.

7

379901R91

PLUG

ASSEMBLY

1шт.

8

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Plug

1шт.

9

382125R1

SPRING

pressure check

1шт.

10

527494R1

VALVE

check

1шт.

11

527495R1

DISC

SEAT, check valve

1шт.

12

9410357

PLUG

o-ring boss

1шт.

13

17008R1

BALL,1/4" Dia

Steel 1/4" Dia

1шт.

527493R91

PACKAGE

pilot valve service, Consists of

1шт.

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

387088R1

SEALING RING,1.237" ID x 0.103" Width

SEAL

2шт.
