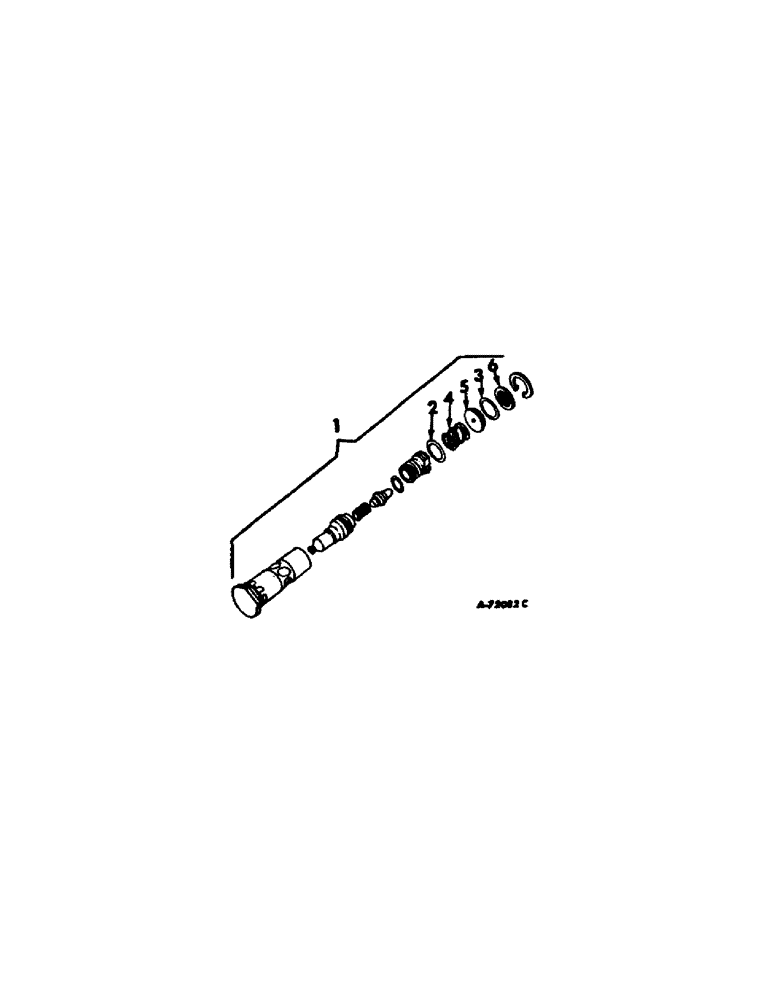

Запчасти Case IH 4166 (10-15[A]) - HYDRAULICS, PILOT RELIEF VALVE (07) - HYDRAULICS

1

388208R93

VALVE

ASSY, pilot relief, 2000 PSI

1шт.

2

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 x 3/4 x 1/16, class 5, poppet

1шт.

3

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16, orifice plate

1шт.

4

386040R1

SPRING

poppet return

1шт.

5

386042R1

PLATE

orifice

1шт.

6

386073R91

SCREEN

ASSY, pilot relief valve

1шт.
