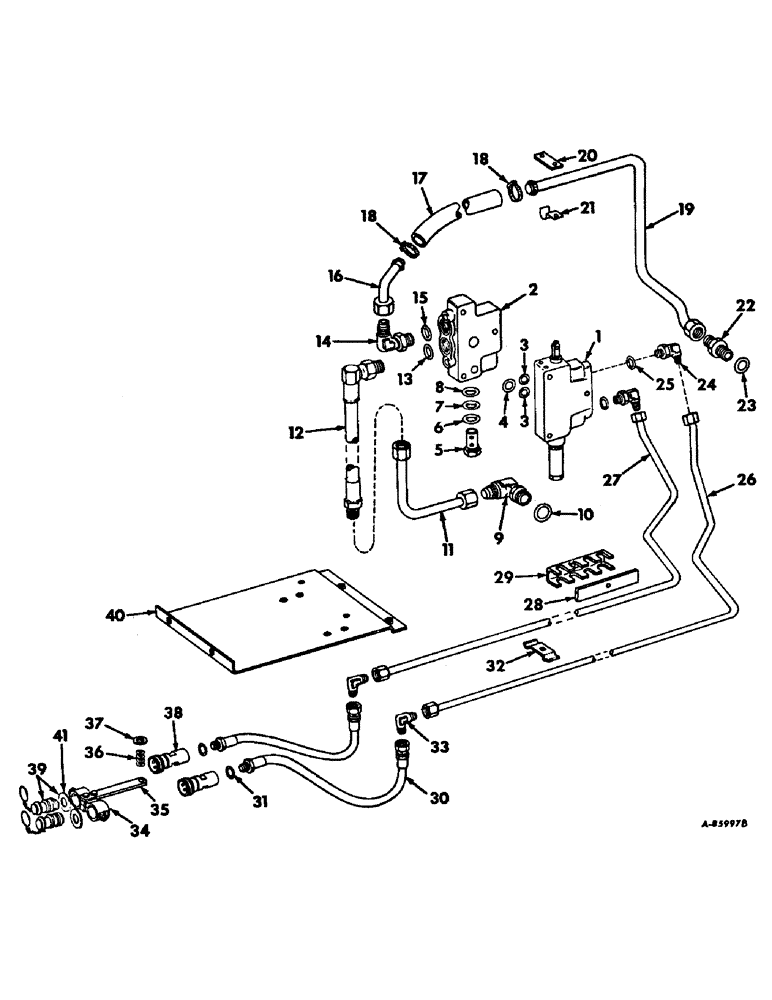

Запчасти Case IH 4156 (F-08) - HYDRAULIC SYSTEM, HYDRAULIC CONTROL VALVE, TUBES AND SELF-SEALING COUPLINGS (07) - HYDRAULIC SYSTEM

1

529911R93

LOCK VALVE

VALVE ASSY, hyd open center control, for components see list of parts under details of hydraulic control valve

1шт.

2

379361R3

COVER, valve inlet

1шт.

20844R1

SCREW,Hex, 3/8" - 16 x 4 1/8", Gr 8

3/8-16 x 4-1/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32

2шт.

4

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32

1шт.

5

388208R93

VALVE

ASSY, pilot relief, 2000 PSI, for components see list of parts under details of pilot relief valve

1шт.

6

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, relief valve outer

1шт.

7

378985R2

BACK-UP RING

backup

1шт.

8

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, relief valve inner

1шт.

9

9410980

ELBOW,90 Degree, 1 3/16"-12, 37 Degree x 1 3/16"-12, O-Ring

1-3/16-12 C-Z 37 deg hyd flared tube adj str thd 90 deg, pump pressure port

1шт.

10

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64, pump pressure port elbow seal

1шт.

11

390623R11

TUBE

PIPE ASSY, control valve power supply

1шт.

12

470611R91

HOSE ASSY.,19.05mm ID x 444.5mm L, SAE 100R2

HOSE ASSY, control valve power supply

1шт.

13

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64, hose assy seal

1шт.

14

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1-5/16-12 C-Z 37 deg hyd flared tube adj str thd 90 deg, control valve cover return port

1шт.

15

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1-11/64 x 1-23/64 x 3/32, control valve cover elbow seal

1шт.

16

390624R11

TUBE

PIPE ASSY, control valve return short

1шт.

17

390625R1

HOSE, control valve return

1шт.

18

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

ASSY, control valve return hose

2шт.

19

390626R11

TUBE

PIPE ASSY, control valve return long

1шт.

20

390627R1

STRIP, return tube support bracket

1шт.

21

390628R1

CLIP

return tube

1шт.

109084

NUT,1/4"-20, G5

2шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1-5/16-12 37 deg hyd flared tube short swivel, control valve return tube to transfer case

1шт.

23

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1-11/64 x 1-23/64 x 3/32, connector seal

1шт.

24

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg, RH control valve tube ports

2шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, elbow seal

2шт.

26

390629R11

PIPE ASSY, RH lift

1шт.

27

390631R11

PIPE ASSY, RH drop

1шт.

28

467192R1

CHANNEL

BRACKET, tube

1шт.

120376

NUT,5/16"-18, G5

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

SCREW, 5/16-18 x 2-1/4 C-Z hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

29

390789R1

SPACER, tube bracket

1шт.

30

468879R91

HOSE ASSY, RH drop and lift

2шт.

31

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, self sealing connector seal

2шт.

32

515030R1

CLAMP

pipe

1шт.

21534R1

BOLT,Hex, 5/16" - 18 x 1"

SCREW, 5/16-18 x 1 CDP hex-hd cap

1шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x .065 C-Z

1шт.

33

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8-14 C-Z 37 deg hyd flared tube 90 deg union

2шт.

34

371110R91

FRAME

ASSY, self sealing coupling breakaway

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

35

371116R1

BAR

self sealing coupling frame

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 C-Z hex-hd cap

2шт.

36

353213R2

SPRING

breakaway coupling cushion

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

37

16038R1

WASHER

17/32 x 1 x 11 ga

1шт.

38

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self-sealing female

2шт.

39

401757R11

PLUG

CAP, self-sealing coupling dust

2шт.

40

393708R11

BRACKET ASSY, junction block support

1шт.

40

403184R1

BRACKET, junction block support, tractors with three point hitch

1шт.

40

403959R1

BRACKET, junction block support, tractors w/independent PTO

1шт.

19427R1

BOLT

3/8-16 x 7/8 CDP short sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/conical washer

2шт.

41

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug

2шт.

395149R1

QUICK MALE COUPLING

COUPLING ASSY, hyd self-sealing male, shipped loose

2шт.
