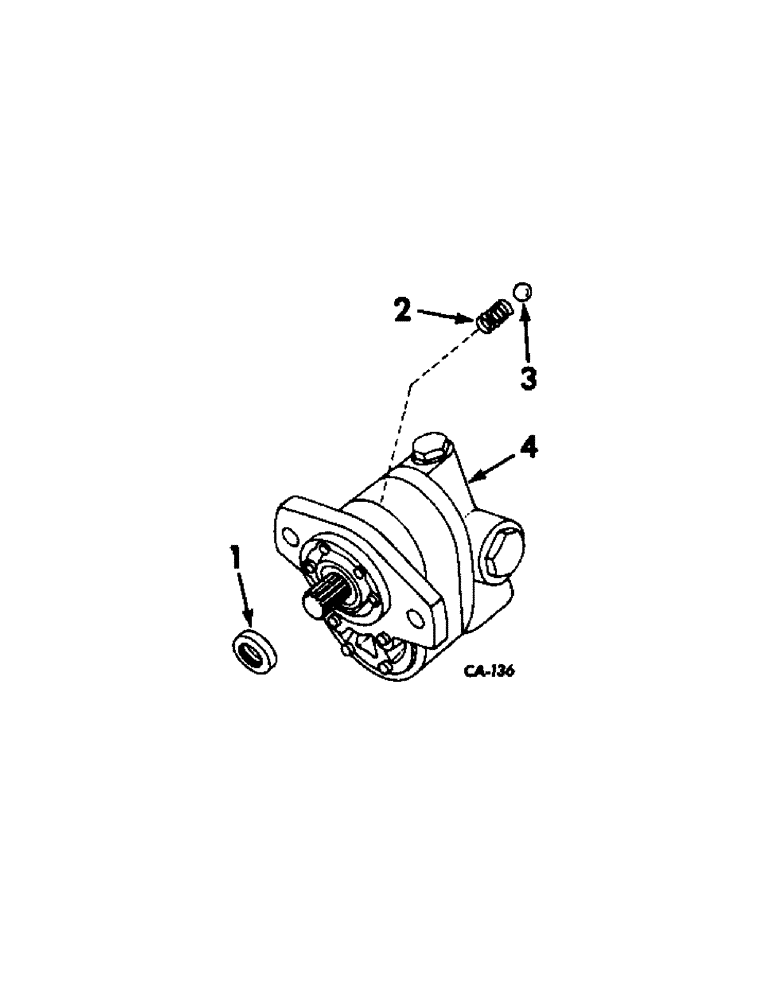

Запчасти Case IH 4156 (F-07[A]) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, CESSNA, 30 GPM (07) - HYDRAULIC SYSTEM

404446R92

PUMP

ASSY, hydraulic gear

1шт.

1

381232R91

OIL SEAL

pump shaft oil

1шт.

2

381230R1

SPRING

check ball

2шт.

3

16013R1

BALL

check

2шт.

4

532869R91

BACK PLATE ASSY, repair kit

1шт.

404451R92

PACKAGE

1шт.

PACKAGE, hyd pump o-ring and gasket, consists of (1) diaphragm 404450R1 (NSS), (1) gasket 404447R1 (NSS), (1) gasket 404448R1 (NSS), (2) o-ring 22285R1, (1) o-ring 297459R1, (1) o-ring 307915R1, (1) o-ring 364879R1, (1) o-ring 364885R1, (1) o-ring 372764R1, (1) o-ring 570828R1, (1) plate 627214C1 (NSS), (1) seal 381232R91, (1) seal 627677C1 (NSS), (1) washer 39577R1

1шт.
