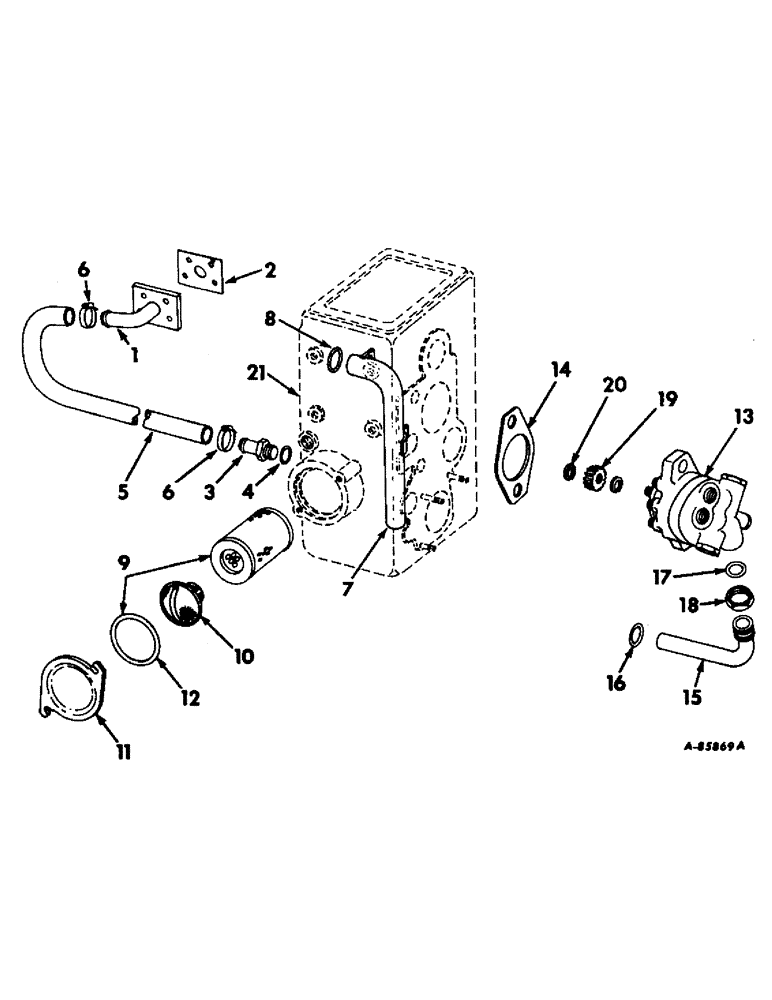

Запчасти Case IH 4156 (F-06) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, OIL FILTER AND PIPING, IN TRANSFER CASE (07) - HYDRAULIC SYSTEM

1

390637R11

PIPE ASSY, flange suction

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

sealing

2шт.

2

390639R1

GASKET

suction pipe flange

1шт.

3

390640R1

FITTING

ASSY, suction hose adapter, transfer case to 9 GPM pump

1шт.

4

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1-11/64 x 1-23/64 x 3/32, suction hose adapter

1шт.

5

390641R1

HOSE,1.03" ID x 20.70", SAE 100R4

Transfer Case Pump Suction 1.03" ID x 20.70", SAE 100R4

1шт.

6

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

ASSY, suction hose

1шт.

7

390606R11

PIPE ASSY, filter suction

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

8

360610R1

O-RING,1.609" ID x 0.139" Width

1-5/8 x 1-7/8 x 1/8, filter suction tube seal

1шт.

9

390560R91

ELEMENT

FILTER ASSY, hydraulic oil

1шт.

10

386121R92

VALVE

ASSY, hyd filter relief

1шт.

11

390609R1

COVER, hyd oil filter

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 7/8 C-Z hex-hd cap

2шт.

20893R1

WASHER

11/32 x 1 x .120 C-Z

2шт.

12

390610R1

O-RING,5.109" ID x 0.139" Width

5-1/8 x 5-3/8 x 1/8, hyd oil filter cover seal

1шт.

13

404445R94

PUMP

ASSY, hydraulic, 20 GPM, rear mounted w/flow divider, for components see list of parts under details of hydraulic pump

1шт.

13

404446R92

PUMP

ASSY, hydraulic, 30 GPM, rear mounted w/flow divider, for components see list of parts under details of hydraulic pump

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

14

390618R1

GASKET

rear mounted pump

1шт.

15

390620R11

PIPE ASSY, pump suction

1шт.

16

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, pump suction pipe seal

1шт.

17

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-15/32 x 1-11/16 x 7/64

1шт.

18

9410065

NUT, 1-5/8-12 adj str thd fitting lock

1шт.

19

390442R1

GEAR WHEEL

GEAR, pump driven, 23 T

1шт.

20

390622R1

RING, pump gear snap

2шт.

21

CASE, transfer, refer to transfer case and covers listing, section B

1шт.
