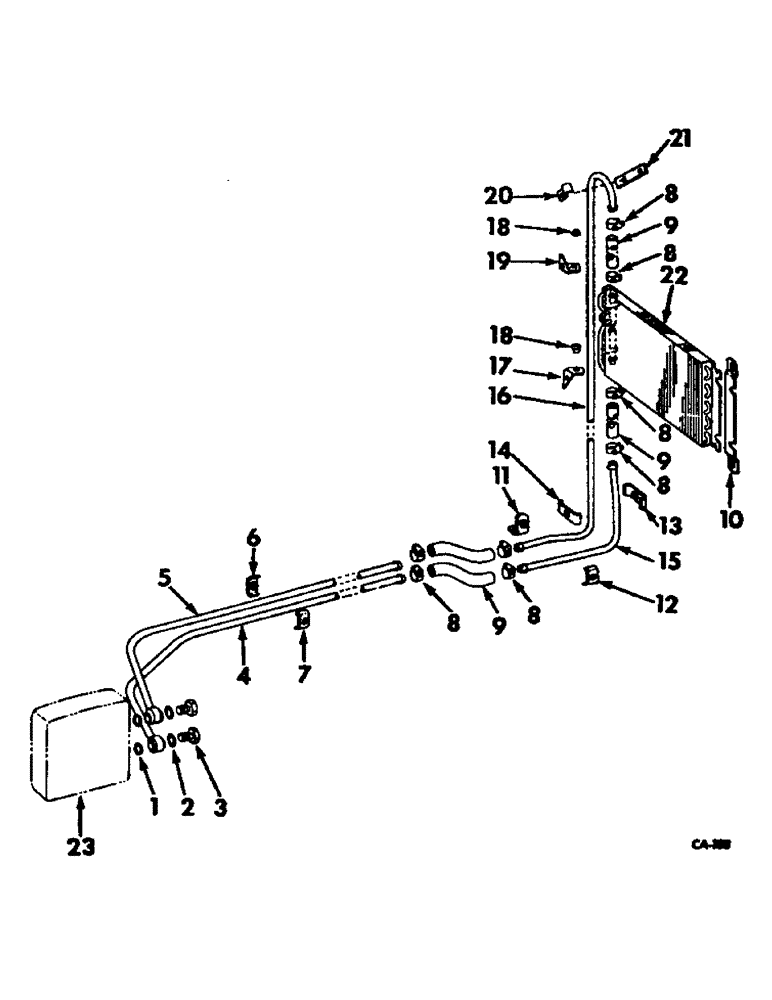

Запчасти Case IH 4156 (F-05) - HYDRAULIC SYSTEM, OIL COOLER AND CONNECTIONS (07) - HYDRAULIC SYSTEM

1

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 x 15/16 x 1/16, outlet union plug

2шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32, outlet union plug

2шт.

3

384577R1

NIPPLE, LUBE

PLUG, union

2шт.

4

390616R11

PIPE ASSY, oil cooler outlet rear

1шт.

5

390613R11

PIPE ASSY, oil cooler inlet rear

1шт.

6

384855R11

CLAMP

ASSY, oil cooler rear pipes

1шт.

7

381448R1

CLAMP

oil cooler rear pipe support

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

8

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP ASSY, oil cooler hose

8шт.

9

387330R1

HOSE, oil cooler pipes

4шт.

10

387326R1

SUPPORT, oil cooler

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 12 PT

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

2шт.

11

384484R11

SUPPORT TUBE

SUPPORT ASSY, oil cooler front pipes lower

1шт.

12

381448R1

CLAMP

oil cooler front pipes lower

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

13

384855R11

CLAMP

ASSY, oil cooler front pipes

1шт.

14

381448R1

CLAMP

oil cooler front pipe support

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

15

390614R1

PIPE, oil cooler outlet front

1шт.

16

390612R1

PIPE, oil cooler inlet front

1шт.

17

387325R2

BRACKET, oil cooler mounting lower

1шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 12 pt

1шт.

18

387327R1

BUSHING

oil cooler pivot

2шт.

19

387324R2

BRACKET, oil cooler mounting upper

1шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 12 pt

1шт.

20

341670R1

CLIP, front cooler pipes upper support

1шт.

109084

NUT,1/4"-20, G5

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

390603R1

STRIP, front cooler pipes upper support

1шт.

22

390611R91

COOLER ASSY, oil

1шт.

23

VALVE ASSY, multiple control, refer to power supply & multiple control valve listing, section F

1шт.
